1971–1978 Honda CB500 / CB550 Four Shop Manual

• Factory service material for Honda CB500 and CB550 Four, including CB550K1, CB550F, CB550K2 ('76), CB500K3/CB550K3 ('77), and CB550F2 ('77) supplements.
• Incomplete shop-manual scan: the base Engine and Chassis chapters, printed pages 19–86, are absent. This set is not a stand-alone guide to a full engine or chassis rebuild.
• Tune-up procedures cover four-carburetor synchronization, valve-clearance and cam-chain adjustment, contact-breaker timing, and compression testing.
• CB550-specific clutch and gearshift repair sections address disassembly, reassembly, and clutch-endplay adjustment. The CB550F supplement adds front-fork disassembly, inspection, and seal replacement.
• Brake and drive-chain maintenance covers hydraulic bleeding, caliper and rear-brake adjustment, and chain alignment.
• Electrical diagnosis covers the charging, ignition, and starting systems, with switch-continuity tables, component checks, and model-specific wiring diagrams.

Document Scope and Model Identification

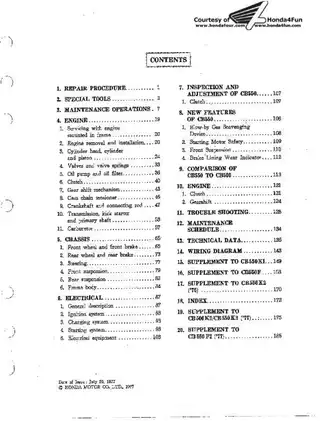

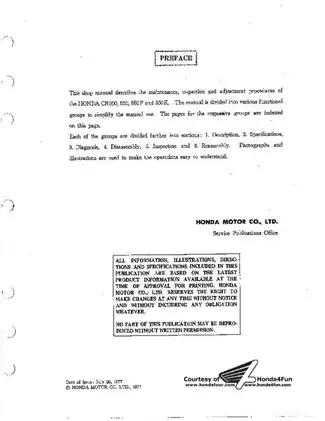

This PDF set contains 276 pages: 132 shop-manual pages in 12 files and a 144-page parts list in six files. The shop-manual material comes from Honda Motor Co., Ltd.’s July 20, 1977 issue.

The K3 supplement identifies CB550K frames from CB550K-2000001 onward; the F2 supplement identifies CB550F frames from CB550F-2100001 onward. These supplements contain model-specific changes, and some procedures refer back to the omitted base chapters. Specifications and parts drawings do not replace those repair instructions.

Detailed Technical Coverage

Dedicated sections covering clutch operation and gearshift mechanisms compare the CB550’s release arrangement, shift-fork layout, and pressure-fed countershaft lubrication with the CB500. Clutch construction views and the countershaft lubrication diagram document the differences between the two engine platforms.

The K3 carburetor supplement covers bank removal, internal disassembly, and reassembly, including float, jet, and throttle-valve service. Separate setting tables distinguish the two engine sizes, with idle and fast-idle adjustment procedures.

The CB550F pages add air-cleaner and breather servicing, plus exhaust-muffler removal and assembly. The F2 supplement identifies a distinct clutch-plate arrangement and revised fuel-valve inspection procedures.

The Blow-by Gas Scavenging Device diagram explains oil separation and crankcase-gas routing through the intake system. The Starting Motor Safety Unit circuit shows how the neutral switch and clutch-lever switch affect starter operation.

Electrical Testing and Wiring Diagrams

Charging-system coverage follows the field-excited, three-phase AC generator. Tests address field and stator coils, voltage-regulator adjustment, silicon-rectifier continuity, and output under different lighting loads. Starter repair information covers brushes, the commutator, armature, and magnetic switch.

The CB550F2 U.S./Canada wiring diagram is accompanied by separate regional versions, including U.K./European, French, and German configurations. The electrical sections also include harness-routing views.

Electrical cautions explain how high-voltage insulation testing can damage the silicon diodes. Brake-service notes also warn that spilled fluid can damage painted surfaces and instrument lenses.

Specifications and Reference Data

The technical data section lays out cylinder and piston dimensions, valve timing, gear ratios, and fluid capacities. Service tables provide torque specifications, wear limits, clearances, and electrical test values. Maintenance schedules sit alongside symptom/cause/remedy tables for hard starting, poor shifting, overheating, charging faults, and brake problems.

Special-tool tables identify the vacuum gauge set (07504-3000000) and float-level gauge (07401-0010000) for carburetor work.

Separate U.S. CB550F Parts List

The illustrated parts catalog applies to CB550F-A, U.S.A., starting with engine CB550FE-1000001 and frame CB550F-1000001. Its engine and chassis exploded views are paired with OEM part numbers, required quantities, and a numerical index. The introduction explains supersedence and serial-number conventions; crankshaft and connecting-rod bearing selection charts add detail for identifying replacement parts.

This catalog has its own model applicability and should not be treated as a parts list for every K-series or F2 motorcycle covered by the shop-manual supplements.

Before initiating any maintenance work, always review standard safety precautions regarding fuel system components and high-amperage electrical systems to prevent injury or equipment damage.
