2006–2008 Honda CBF1000A / CBF1000 Shop Manual (P/N 62MFA00)

• Exact model and document coverage: Covers the 2006–2008 Honda CBF1000 and CBF1000A in a 598-page PDF of Honda Shop Manual Part No. 62MFA00, with model-specific brake procedures and separate CBF1000/CBF1000A wiring diagrams where the configurations differ.
• Engine and drivetrain repair: Documents engine removal and installation, compression and valve-clearance checks, camshaft and cam-chain service, cylinder-head disassembly and inspection, valve-guide replacement and seat refacing, clutch and starter-clutch repair, transmission work, crankcase separation, bearing selection, piston/cylinder inspection, and balancer timing.
• PGM-FI testing and fault isolation: Includes MIL and DTC troubleshooting, fuel-pressure and delivery checks, injector and throttle-body service, idle-air control diagnosis, ECM circuits, and testing for the MAP, IAT, ECT, oxygen, and bank-angle sensors.
• Standard and ABS brake systems: Provides separate fluid-replacement, bleeding, master-cylinder, and caliper procedures for the CBF1000 and CBF1000A, plus ABS problem-code diagnosis, indicator-circuit testing, wheel-speed sensor checks, modulator service, and proportional-control-valve coverage.
• Chassis and running gear: Covers body panels and exhaust removal, front and rear wheel service, fork and steering-stem repair, rear shock and swingarm work, suspension linkage inspection, drive-chain service, and the related bearing, seal, and alignment checks.
• Factory diagrams and service data: Supplies cable and harness routing, connector-location views, exploded assemblies, system schematics, troubleshooting charts, component-specific torque tables, fluid-capacity data, wear limits, clearance specifications, electrical test values, and Honda special-tool references.

Model-Specific Coverage

The manual does not treat the two brake configurations as interchangeable. The CBF1000 receives its own conventional hydraulic-brake bleeding and caliper sections. The CBF1000A adds coverage of the combined rear brake, proportional control valve, ABS modulator, wheel-speed sensors, indicator circuit, connector locations, and a dedicated ABS problem-code index. That separation is important when choosing repair procedures, test points, wiring information, or replacement parts.

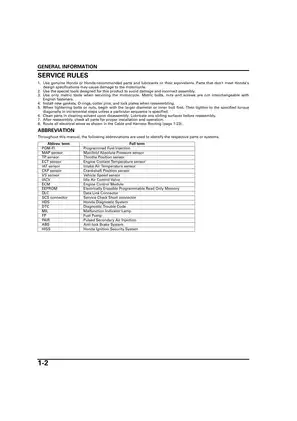

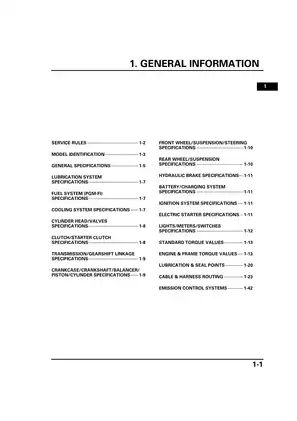

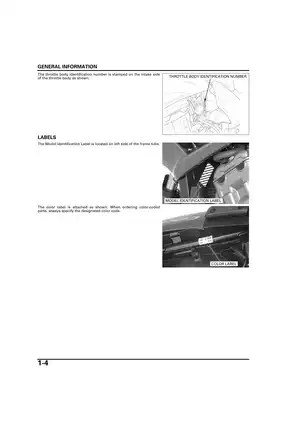

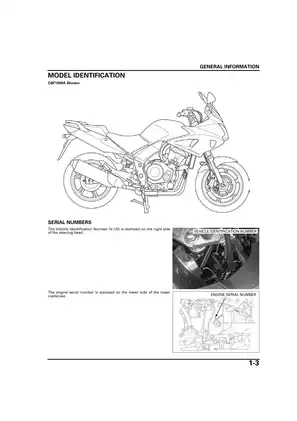

Identification pages show where to find the VIN, engine serial number, throttle-body identification number, model label, and color label. The throttle body is identified by code GQ3BA, giving shops and experienced owners a useful check before ordering fuel-system parts or matching diagnostic information.

Engine, Fuel, Cooling, and Electrical Work

Beyond scheduled maintenance, the engine chapters support internal repair work from cylinder-head and valve service through crankshaft, connecting-rod bearing, piston, cylinder, transmission, and balancer inspection. The lubrication section covers oil-pressure diagnosis, the strainer, pressure-relief valve, oil pump, and oil cooler. Cooling-system material includes the flow pattern, coolant replacement, thermostat, radiator, water pump, reserve tank, and fan-relay testing.

The PGM-FI chapter combines component layouts with diagnostic flowcharts and circuit checks rather than offering only a wiring overview. It covers the fuel pump and cut-off relay, airbox, throttle body, injectors, IACV, ECM, secondary-air system, oxygen sensor, and intake duct. Electrical chapters add charging-system diagnosis, ignition peak-voltage testing, starter-circuit repair, lighting and meter checks, and HISS key-registration and fault-code procedures.

Diagrams, Tools, and Shop Reference Data

Particularly useful illustrations include the Lubrication System Diagram, PGM-FI System Diagram, Cooling System Flow Pattern, ABS System Diagram, HISS System Diagram, and the full model-specific CBF1000A and CBF1000 Wiring Diagrams. Cable and harness routing pages, connector views, and exploded component layouts support reassembly across the engine, chassis, brake, fuel, and electrical sections.

Honda tool callouts identify the equipment expected for specific repair jobs. Examples include the cam-chain tensioner holder 07ZMG-MCAA400, ECM test harness 070MZ-MCA0100, and HISS inspection harness 07XMZ-MBW0101.

Manual-Specific Service Notes

The throttle body is factory preset. The manual flags the white-painted adjusters, throttle-plate handling, and cleaner use because improper handling can upset synchronization or damage the assembly. The ABS modulator contains the control unit and is not intended to be disassembled; the manual warns that impact or disconnecting its connectors while current is flowing can damage it.

For engine, wheel, suspension, and brake repair, support the motorcycle securely on suitable shop equipment. Protect painted and plastic surfaces during hydraulic-brake service, and isolate electrical power before connector work.
