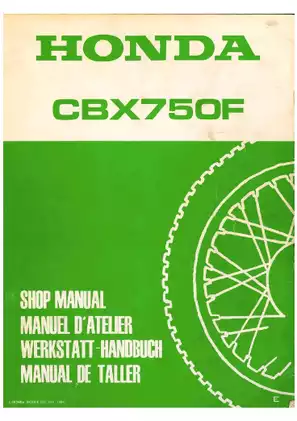

1983–1988 Honda CBX750F Factory Shop Manual (P/N 66MJ000)

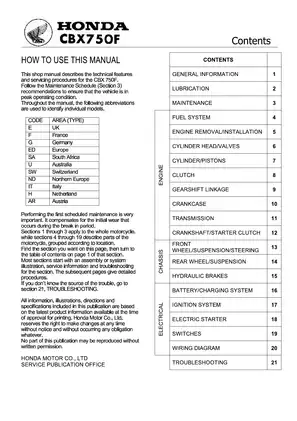

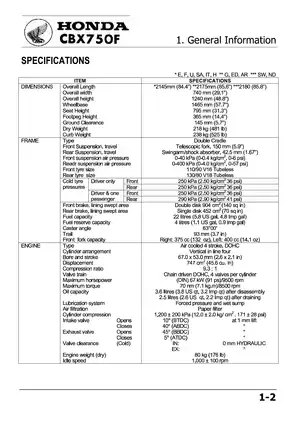

• Coverage and document identity: Covers the 1984 Honda CBX750F in a 285-page PDF, organized into 21 factory sections. The general specifications distinguish E, F, G, ED, SA, U, SW, ND, IT, H, and AR area types.
• Engine and top-end repair: Includes lubrication-circuit diagnosis, oil-pressure testing, oil-pump and oil-cooler service, engine removal and installation, camshaft timing, hydraulic-tappet bleeding, cylinder-head work, valve-guide and valve-seat service, and cylinder/piston inspection.
• Fuel, clutch, and drivetrain work: Details KEIHIN VE carburetor removal, separation, float- and vacuum-chamber service, bystarter and pilot-screw work, synchronization, hydraulic-clutch bleeding and overhaul, gearshift linkage repair, crankcase separation, six-speed transmission service, and crankshaft/starter-clutch inspection.
• Frame, suspension, and brakes: Covers front-wheel and steering service, fork disassembly, the anti-dive system, rear shock and damping-adjuster work, swingarm and linkage repair, hydraulic brake bleeding, master-cylinder and caliper overhaul, and disc/pad inspection.
• Electrical diagnosis: Provides battery and charging-system tests, alternator and regulator/rectifier inspection, transistorized ignition diagnosis, starter and relay checks, switch and sensor testing, cable/harness routing views, and the full E/ED/U/SA wiring diagram.
• Factory reference data: Supplies component-specific torque tables, pressure-test specifications, wear limits, service clearances, fluid data, electrical test values, troubleshooting charts, exploded assemblies, section views, and Honda special-tool references.

Factory Technical Documentation

This is Honda’s 1984 factory shop manual for the CBX750F, rather than an owner’s handbook or a generic tune-up guide. Its 21-section layout follows the motorcycle from general information, lubrication, scheduled maintenance, and fuel-system service through complete engine, chassis, brake, and electrical repair. A final troubleshooting section brings together symptom-based checks for starting trouble, lack of power, poor idle or high-speed performance, hydraulic-tappet noise, and handling problems.

The engine chapters show the actual division between in-frame repair and work that requires engine removal or crankcase separation. The oil pump, carburetors, cylinder head, cylinders and pistons, clutch, alternator, and starter motor can be serviced with the engine in the frame. Deeper bottom-end work is covered through crankcase disassembly, transmission inspection, crankshaft and connecting-rod service, starter-clutch work, and factory bearing-selection procedures. Camshaft removal and installation, timing-mark alignment, hydraulic-tappet removal and bleeding, valve-guide replacement, valve-seat inspection and refacing, and final top-end assembly are all treated as distinct workshop operations.

Fuel-system coverage goes well beyond basic carburetor synchronization. The KEIHIN VE chapter includes carburetor-bank removal, vacuum-chamber and float-chamber work, bystarter service, carburetor separation and reassembly, pilot-screw procedures, fuel-tank removal, air-cleaner service, and installation checks. The clutch section covers the hydraulic master and slave cylinders, fluid replacement and bleeding, plus internal clutch disassembly and inspection. Separate chapters handle the external shift linkage, internal shift drum and forks, transmission shafts and gears, and crankshaft/starter-clutch assemblies.

Chassis repair is documented at the same level. The front section includes wheel and hub work, fork teardown and reassembly, anti-dive components, steering-stem bearings, handlebars, instruments, headlight, fuse holder, and ignition-switch removal. At the rear, the manual covers wheel and swingarm service, suspension linkage, shock-absorber oil-seal replacement, fluid filling and air evacuation, and damping-adjuster cable installation. Hydraulic brake chapters address fluid replacement, system bleeding, pad and disc checks, front and rear master cylinders, and caliper disassembly.

The illustrations support real bench work rather than simply identifying parts. Particularly useful examples include the lubrication-circuit diagram, cable and harness routing views, carburetor vacuum- and float-chamber exploded assemblies, camshaft and hydraulic-tappet views, crankshaft/starter-clutch and six-speed transmission exploded assemblies, fork and rear-shock section views, and the E/ED/U/SA wiring schematic. Review the routing pages before electrical diagnosis: Honda specifically warns against pinched or stretched wiring, sharp-edge contact, exhaust heat, and interference with steering or moving parts.

Specification and Reference Data

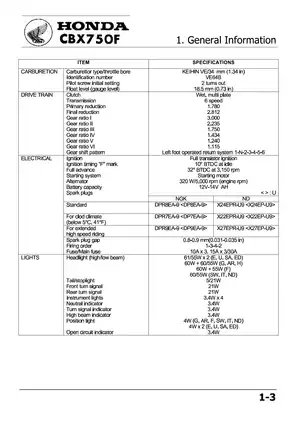

Factory tables give the related torque specifications, pressure-test data, capacities, wear limits, service clearances, adjustment information, and electrical continuity or resistance checks for the covered assemblies. The manual also identifies special tools where ordinary shop equipment is not appropriate, including hydraulic tappet bleeder 07973-MJ00000, crankcase assembly pin 07973-ME50000, rotor puller 07933-2160000, fork-seal drivers, bearing removers, and dedicated oil-pressure and compression-gauge attachments.

Several cautions show why the original procedure matters. Honda states that wire must not be used to bleed the hydraulic tappets because it can damage them; the specified bleeder is part of the documented repair method. During crankcase assembly, the manual calls for controlled case alignment, keeps sealant away from main-bearing and tapered-hole areas, and warns against trapping the neutral-switch harness. The rear master-cylinder chapter also treats the piston, cylinder, and spring as a matched set rather than interchangeable individual parts.

Electrical coverage includes on-motorcycle charging tests, alternator removal and installation, regulator/rectifier checks, ignition-coil and pulse-generator diagnosis, spark-unit testing, starter-motor and relay service, clutch-diode checks, and continuity tests for the oil-pressure, neutral, clutch, brake-light, handlebar, ignition, and fuel-level circuits. The included full wiring diagram is specifically identified for E, ED, U, and SA area types. Other regional versions listed in the general specifications may differ electrically, and this PDF contains the 1984 base manual rather than later supplements or model-year addenda.
