1985–1988 Honda CH250 Elite Service Manual (P/N 61KM103)

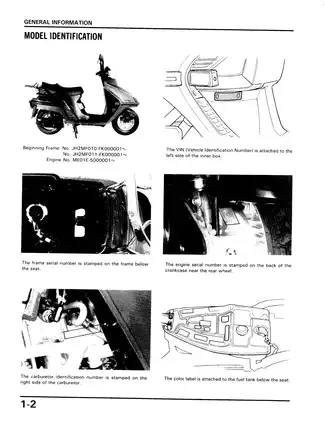

• 224-page Honda Motor Co., Ltd. factory service manual PDF, issued January 1988 for the 1985–1988 Honda CH250 Elite 250, including 49-state and California-emissions versions. Model-identification data lists starting frame numbers JH2MF010-FK000001 and JH2MF011-FK000001 and starting engine number ME01E-5000001.
• Covers scheduled maintenance and lubrication work, with separate '85, '86, '87, and After '87 schedules, plus valve and ignition checks, drive-belt inspection, cooling-system service, brake adjustment, side-stand checks, suspension inspection, and steering-head bearing service.
• Details carburetor removal and overhaul, auto-bystarter and automatic fuel-valve testing, vacuum-piston and air cut-off valve inspection, pilot-screw and idle-drop adjustment, float and jet service, high-altitude setup, and California purge-control and vacuum-hose diagnosis.
• Tracks major engine and drivetrain repair work through engine removal and installation, cylinder-head and camshaft service, valve-guide replacement and seat refacing, cylinder and piston inspection, crankcase separation, crankshaft checks, V-matic drive-pulley and clutch service, final-reduction repair, and starter-clutch work.
• Extends into cooling and chassis repair with system pressure testing, radiator and fan service, water-pump and mechanical-seal replacement, wheel and bearing service, front and rear drum brakes, brake-lock lever and system adjustment, anti-dive front suspension, rear shocks, and steering-race replacement.
• Provides charging, CDI ignition, starting, lighting, switch, gauge, and digital-speedometer test procedures; model-specific wiring diagrams; component circuit schematics; special-tool references; wear limits; torque tables; capacities; and fault-isolation charts.

Content and Systems Walkthrough

Honda does not lump all four model years together. Tables and procedures call out '85, '86, After '85, After '86, and After '87 configurations wherever a production change affects the work. These distinctions cover carburetor identification and 49-state versus California hardware, cable and harness routing, engine specifications, battery and instrument changes, steering and suspension details, the later side-stand ignition cut-off system, and engine-hanger joint-bolt data. That matters when selecting parts, test data, or the correct repair procedure for the scooter on the lift.

The engine chapters are not limited to tune-up work. They cover removal and support of the complete power unit, cylinder-head and rocker-arm disassembly, camshaft timing and cam-chain tensioner service, valve-guide replacement, valve-seat inspection and refacing, piston and ring checks, crankcase separation, and crankshaft inspection. Honda specifies assembly-level replacement if the crankshaft bearings, oil-pump driven sprocket, or timing sprocket require service. Separate sections handle the V-matic drive belt, weight rollers, ramp plate, centrifugal clutch, driven pulley and spring, final-reduction gears and bearings, alternator, flywheel, and one-way starter clutch.

Fuel-system coverage supports detailed starting and driveability diagnosis. The manual lays out test paths for the auto-bystarter, air cut-off valve, automatic fuel valve, vacuum chamber, jets, float valve, and pilot circuit. California models receive their own evaporative-emissions material for the charcoal canister, purge-control valve, and vacuum-hose routing.

Diagnostic Charts, Diagrams, and Service Data

The final troubleshooting section ties hard starting, lack of power, low- and high-speed running complaints, engine and CVT noise, handling and suspension faults, brake problems, and electrical symptoms involving the fuel gauge, starter motor, and digital speedometer to likely causes. Most system chapters also begin with their own troubleshooting notes before moving into the repair procedures.

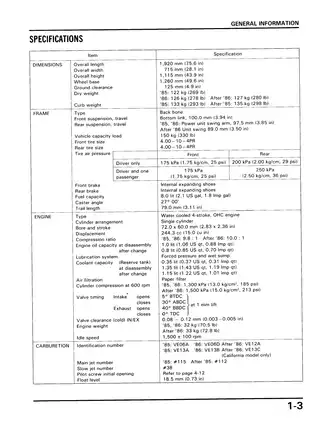

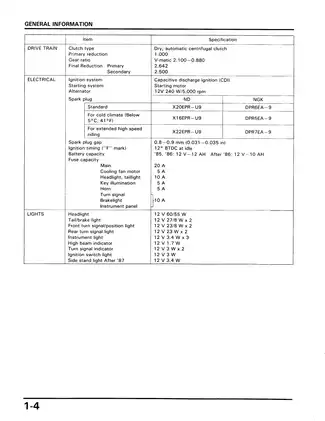

Service-information pages collect the applicable inspection limits, component clearances, torque tables, capacities, electrical test values, and required tools. Honda special-tool references include the 07923-KM10000 drive-pulley holder, 07960-KM10000 clutch-spring compressor, 07933-KM10000 flywheel puller, and dedicated valve-guide tools. A shop or experienced owner can identify fixture requirements before disassembly starts.

Named schematics and section views include the Charging Circuit, Ignition System Circuit, Starting Circuit, '86 and After '87 wiring diagrams, Torque Link Type Anti-Dive Front Suspension, and Damper-Link Type Engine Mount. Exploded assembly drawings cover the carburetor and auto-bystarter, cylinder head and piston, drive pulley/clutch/driven pulley, final-reduction geartrain, and water pump.

Honda flags two easy-to-miss repair traps. The black and silver oil-pipe bolts are not interchangeable; putting them in the wrong locations can cause engine damage because their oil passages differ. The water-pump impeller uses a left-hand thread, a critical detail before removal force is applied.

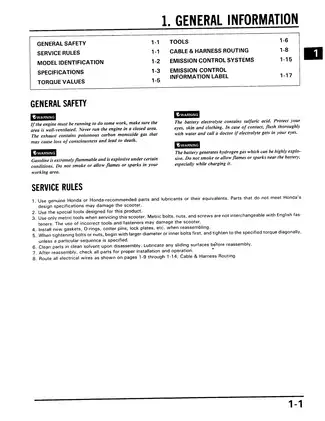

Wheel, bearing, brake, steering, and suspension procedures are included, but full tubeless-tire removal, repair, and remounting are referred to a separate Honda tire-repair manual. Support the engine correctly during removal, keep ignition sources away from fuel-system work, open the cooling system only when cold, and keep grease off brake linings.
