Honda CH80 Elite Scooter Service Manual, 1985–2002

Honda factory service manual for the 1985–2001 CH80 Elite, with July 1993 issue pages and September 2000 revisions. It covers maintenance, mechanical repair, and electrical diagnosis, including California evaporative-emissions equipment.

Chapter Bookmarks and Wiring Diagram Detail

Search, navigation, and diagrams: PDF text search is not available. Embedded bookmarks provide access to the chapters, index, and individual wiring sheets. Small wiring labels require zooming, and the wiring sheets need rotation for comfortable viewing.

The ZIP download contains one printable English PDF with 185 pages, including the additional revised wiring sheet and the two-page index.

Engine Overhaul, V-matic Service, and Electrical Diagnosis

The following is selected workshop coverage, rather than a complete contents list. Other topics include throttle-cable adjustment and headlight aiming.

• Engine repair: Step-by-step engine removal and installation, camshaft and rocker-arm service, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and cylinder/piston inspection.

• Crankcase and lubrication: Oil-pump overhaul, crankcase separation and assembly, cam-chain tensioner inspection, crankshaft measurement, oil-strainer cleaning, and lubrication-point references.

• V-matic drivetrain: Drive-belt replacement, movable drive-face and weight-roller inspection, clutch-shoe replacement, driven-pulley disassembly, bearing and oil-seal replacement, starter-gear service, and final-reduction repair.

• Fuel and emissions: Carburetor overhaul, starting-enrichment thermal-valve testing, vacuum-piston and float-chamber service, air-screw adjustment, high-altitude setup, automatic fuel-valve testing, and California EVAP service.

• Chassis repair: Front and rear wheel inspection, drum-brake overhaul, front hub-bearing replacement, pivot-arm service, fork removal, steering ball-race replacement, and rear-shock disassembly.

• Electrical testing: Battery and charging checks, regulator/rectifier and alternator tests, CDI ignition diagnosis, starter-relay and motor inspection, switch checks, and fuel-sender/gauge testing.

• Troubleshooting and diagrams: Fault-isolation charts for starting, power loss, engine noise, drivetrain operation, handling, suspension, brakes, fuel gauge, charging, and no-spark faults.

It is suited to mechanically qualified owners and technicians with the required measuring equipment and service tools; Honda recommends dealer-only service for designated safety-related maintenance items.

Engine Access and Internal Repair

The engine chapters distinguish work possible in the frame from repairs requiring power-unit removal. Camshaft service can be performed with the engine installed; cylinder-head removal, cylinder/piston work, oil-pump service, cam-chain tensioner access, and crankcase repairs require engine removal.

That distinction supports repair planning before disassembly. The engine-removal section also identifies the need for a floor jack or adjustable support to handle the power unit.

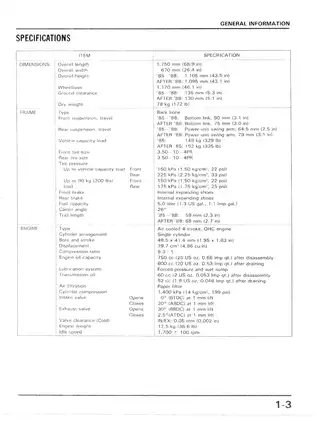

Component-specific torque tables, fluid specifications, inspection limits, running clearances, compression-test information, and valve and ignition references accompany the repair chapters. Honda specifies complete crankshaft-assembly replacement when the crankshaft bearings, oil-pump driven sprocket, or timing sprocket require replacement.

Carburetor Variants and Fuel-System Detail

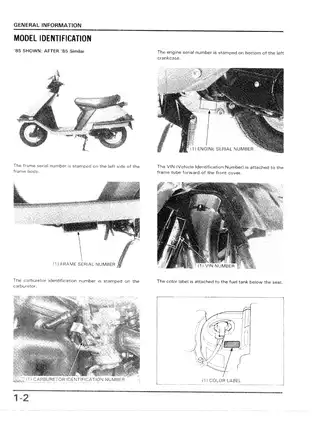

The specifications distinguish the 1985 VC61A carburetor from the VC61C used after 1985, allowing the corresponding setup data to be selected.

Fuel-system diagnosis includes resistance and pressure checks for the starting-enrichment thermal valve, vacuum-piston diaphragm inspection, float-level measurement, and automatic fuel-valve vacuum testing. The vacuum-chamber cover is factory-set and is not intended for internal disassembly.

High-altitude carburetor setup includes the related emissions-label reference. California coverage adds the evaporative-emission hose layout and canister removal and installation; crankcase-breather coverage includes separator removal and filter cleaning.

Pulley, Clutch, and Final-Reduction Repair

Exploded illustrations show the relationship between the belt, drive pulley, ramp plate, weight rollers, clutch, driven face, and starter gear. The driven-face procedures extend to bearing replacement, while final-reduction repair includes shaft, gear, bearing, and oil-seal inspection.

Over-compressing the clutch spring tool can damage the drive plate—a specific caution carried through the driven-pulley procedures.

Chassis Access and Tire-Service Boundary

Bodywork procedures cover side panels, the trunk, and leg shield, supporting access to the chassis and electrical components. Suspension work includes front-shock and pivot-arm bushings, steering races, and rear-shock spring inspection.

Tire removal, repair, and remounting require the separate Tubeless Tire Repair Manual referenced by Honda; those procedures are outside this PDF.

Electrical Circuits and Fault Isolation

Charging-system components can be tested on the scooter. The electrical sections distinguish tests for the regulator/rectifier, alternator, ignition coil, ignition control module, exciter coil, pulse generator, starter relay, brake-light switches, and control switches. Fuel-sender resistance checks are paired with gauge-response diagnosis.

Diagram references include the Charging Circuit, Ignition System Circuit, Starting Circuit, California vacuum-hose routing layout, and Cable & Harness Routing views.

Separate wiring sheets cover 1985, 1986, and after-1986 configurations. Their drawing references are 0030Z-GE1-6700, 0030Z-GE1-7700, and 0030Z-GE1-8300; the revised sheet also carries 0030Z-GV4-A400.

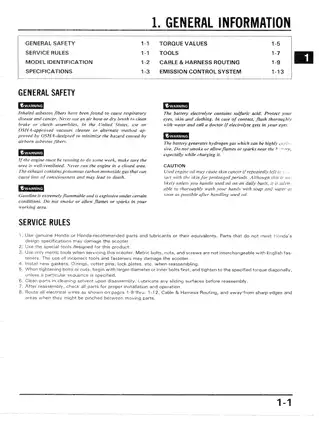

Factory Tools and Component Cautions

Tool tables identify valve-guide driver/remover 07942-MA60000, clutch spring compressor 07960-KJ90000 or 07960-KM1000A, and flywheel puller 07733-0010000. Bearing drivers, pilots, locknut wrenches, ball-race removers, and rear-shock attachments are also specified.

The valve-guide section warns that torch heating can warp the cylinder head. Brake and clutch work requires controlled dust removal rather than compressed air or dry brushing; fuel-system work calls for ventilation and control of sparks and open flame.

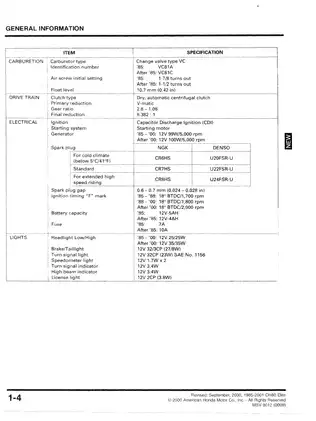

A Preview of Valve, Float-Level, and Charging Specifications

Intake and exhaust valve clearance is specified at 0.05 mm with the engine cold, below 35°C/95°F. Carburetor float level is 10.7 mm with the float tang just contacting the float valve.

The charging-voltage inspection specifies 14–15 V at 5,000 rpm with a fully charged battery and the engine warmed up.
