1985-1987 Honda ATC 250SX Service Manual
Factory service guide for 246cc 4-stroke three-wheeler—carburetor adjustment, torque specs, and component replacement procedures. Complete engine, transmission, final drive, and electrical system coverage.
Manual Preview

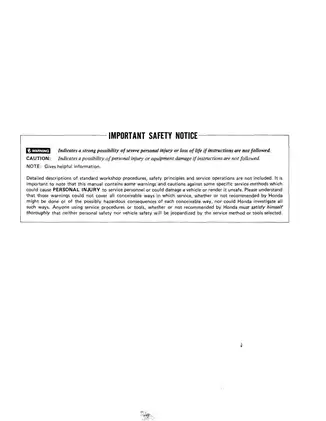

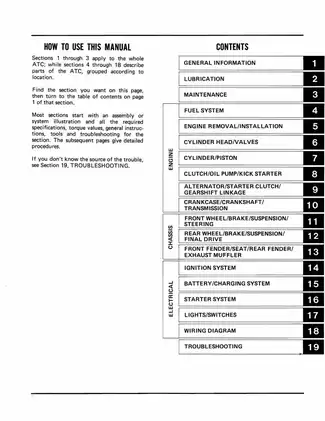

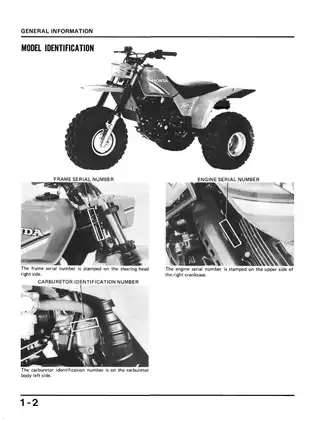

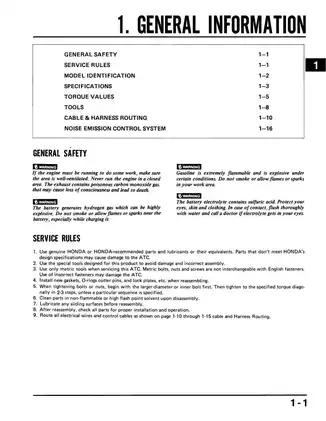

Sample pages from the 1985-1987 Honda ATC 250SX Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Honda ATC 250SX — 1985–1987 Operational Professional Structured Handbook | ATC 250SX Series File.
- Factory Angular Speed Data: Maximum engine output is specified as 18 PS (13.2 kW) at 7,000 rpm Mapping.
- Certified Enclosure Specs: For optimal displacement, 246 cc (15.0 cu in) indicates the single-cylinder engine volume Configuration.
- Engineered Native Resolution: The compression ratio is configured at 9:1 for standard combustion chamber pressure Benchmarks.
- Primary System Volume: Fuel tank capacity is measured at 9.8 liters (2.6 US gal) total fuel supply Range.
- General Consumption Data: Peak torque output delivers 1.9 kg·m (13.7 ft·lb) at 6,000 rpm crankshaft power Sequences.
- Integral Travel Rate: Dry weight is designed for 162–165 kg (357–364 lb) depending on model year Baseline.
Professional Workshop Service Manual & Technical Specifications
Practical Reference Manual: Three-Wheeler Honda ATC 250SX Three-Wheeler Manual (1985-1987) - Complete Service & Repair Guide Maintenance-Registry
Technical-Scope: 1985-1987 Honda ATC 250SX // Machine-Range: Three-wheeler, single-cylinder four-stroke engine / Transmission and drivetrain logic // Machine-Range: Complete factory service documentation covering 261 pages.
| Section | Content | Documentation |
|---|---|---|
| General Information | Model identification, specifications, torque values, tools, cable routing | Complete reference data provided |
| Lubrication System | Engine oil and filter specifications, final drive oil capacity, lubrication points | All service intervals and capacities documented |
| Maintenance Schedule | Service intervals, air cleaner, spark plug, brake shoes, valve clearance | Maintenance requirements for 1985-1987 models |
Coverage is segmented into sections covering lubrication and maintenance, examining spark plug inspection and replacement, documenting throttle operation checks, identifying transmission and drivetrain components, and detailing electrical system wiring.
Integrated Logic-Path
The document includes specifications for the 246 cc four-stroke engine, 5-speed transmission, semi-automatic centrifugal clutch, and complete drivetrain architecture. System operation descriptions cover the fuel system with dual valve carburetor, ignition system with CDI unit, and charging system with alternator and regulator specifications. The manual provides detailed information on the semi-double cradle frame, telescopic front suspension with 135 mm travel, and swingarm rear suspension with 120 mm travel.
Core Benchmarks
Assembly instructions are detailed for the engine removal and installation, cylinder head and valve service, crankshaft and transmission disassembly, and clutch and oil pump procedures. The documentation addresses front wheel, brake, and suspension maintenance including steering stem adjustment, front fork service, and brake shoe replacement. Complete procedures are included for rear wheel service, swing arm removal, and final drive gear inspection and adjustment.
Strategic Interface
Hydraulic schematics are included for the front and rear brake systems, documenting cable-operated leading shoe drum brakes with specific clearance measurements. Steering component information is provided for the steering stem bearings, handlebar installation, and fork assembly. The manual documents torque specifications for critical fasteners to ensure proper assembly integrity and component longevity.
Structured Sequences
The document includes wiring diagrams for the ignition system, battery and charging system, starter system, and lighting circuits. Specifications are provided for electrical components including the 12V-10AH battery (12V-12AH after 1986), alternator output, and spark plug gap measurements. Troubleshooting sections cover engine starting issues, performance problems at various speeds, handling concerns, and electrical system failures.
Engineered Topology
Final drive oil specifications and capacity information is documented for maintenance procedures. Brake drum and lining specifications are provided for front and rear brake service. Tire pressure specifications, wheel bearing clearances, and suspension spring free length measurements are included for proper adjustment and inspection.
