Honda ATC 125M Three-Wheeler 1986–1987 Factory Service Manual (P/N 07740-HB6-0000)

This 196-page Honda service manual covers the 1986 and 1987 ATC125M and provides factory specifications, exploded-view assembly drawings, service limits, torque data, and troubleshooting for the 124 cc air-cooled 4-stroke engine and 5-speed constant-mesh transmission with reverse. The engine uses a chain-driven overhead camshaft, wet-sump pressure lubrication, CDI ignition, a 12 V 10 Ah battery, and a 130 W alternator rated at 5,000 rpm.

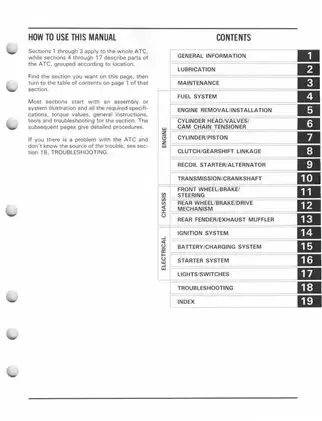

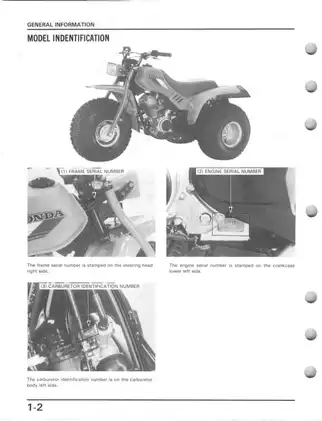

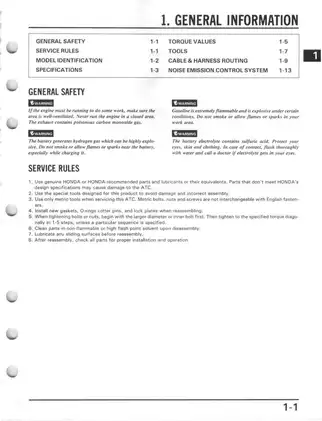

Rather than relying on generic aftermarket coverage, the manual breaks the ATC down by Honda system: lubrication and maintenance, fuel system, engine removal, cylinder head/valves/cam chain tensioner, cylinder/piston, centrifugal and manual clutches, gearshift linkage, recoil starter/alternator, transmission/crankshaft, front and rear brakes, steering, rear axle and drive mechanism, ignition, charging, starter, and lights/switches. Most sections begin with an assembly or system illustration, specifications, torque values, required tools, and troubleshooting before moving into the repair procedures.

Critical Specification Data:

• Valve clearance: 0.08 mm (0.003 in) cold for both intake and exhaust
• Cylinder head bolt torque: 10–14 N·m (7.2–10 ft-lb)
• Intake valve opening: 0° BTDC
• Engine oil capacity: 1.3 liters (1.4 US qt) at draining; 1.5 liters (1.6 US qt) after disassembly
• Cylinder compression: 13.3 ± 1.0 kg/cm² (189 ± 14.2 psi / 1,330 ± 100 kPa)
• Ignition timing: 10° ± 2° BTDC at idle; 28° ± 2° BTDC at 4,000 rpm
• Clutch adjuster lock nut torque: 19–25 N·m (14–18 ft-lb)

Repair and Overhaul Coverage

The factory service manual goes well beyond tune-up information. It contains engine removal and installation, camshaft and cam-chain-tensioner service, cylinder-head disassembly, valve-guide replacement, valve-seat inspection/refacing, cylinder and piston measurement, piston-ring inspection, centrifugal and manual clutch repair, gearshift and reverse-linkage service, crankcase separation, transmission and crankshaft repair, recoil starter overhaul, flywheel/starter-clutch service, steering-stem bearing-race replacement, front and rear brake service, rear axle/final driven sprocket work, and wheel-bearing replacement.

The carburetor section identifies the PB85A carburetor and documents the #95 main jet, 3rd-groove needle setting, pilot-screw setting, float-level measurement, overhaul checks, and high-altitude calibration. Honda specifies a #88 main jet for the high-altitude setting and warns that sustained operation below 5,000 ft (1,500 m) with that setting can overheat and damage the engine. The maintenance schedule also separates initial service after the first week of operation from regular service every 30 operating days, with additional frequency notes for dusty, sandy, snowy, wet, or muddy use.

Factory tool references are included where the job requires them. Examples include the clutch center holder 07923-9580000, flywheel puller 07733-0010000 (or 07933-2000000), valve spring compressor 07757-0010000, steering stem socket 07716-0020203, and 41 mm rear-brake spanner wrench 07916-9580200/07916-958020A.

Service Limits and Diagnostic Depth

Wear limits are given for components that cannot be evaluated reliably by appearance alone. Examples include a 54.10 mm cylinder-bore service limit, 0.08 mm left/0.10 mm right crankshaft runout limits, 2.6 mm manual-clutch disc thickness, 2 mm front and rear brake-lining thickness, 111 mm front and 141 mm rear brake-drum inside-diameter limits, and 3.0 mm rear-axle runout.

Electrical chapters give actual test numbers, not just component locations. The manual specifies ignition-coil resistance values, a 100–300 ohm alternator exciter-coil range, a 292.5–357.5 ohm pulse-generator range, CDI continuity checks using specified meters, starter-motor brush and commutator tests, and charging-system output testing with a regulated-voltage target of 14–15 V. Diagram coverage includes the Lubrication Diagram, Cable & Harness Routing views, Ignition System circuit, Battery/Charging System circuit, Starter System circuit, and the full Wiring Diagram in section 17-5, identified as drawing 0030Z-HB6-0000.

The manual also flags assembly details that matter during repair. The centrifugal-clutch lock nut is specifically identified as a left-hand thread. The starter train uses an 18-tooth inner idle gear and a 22-tooth outer idle gear; Honda warns that incorrect engagement can damage the gears. It also warns that interchanging the light-green/red neutral lead and gray reverse lead can make the neutral indicator illuminate while the transmission is actually in reverse, creating a sudden reverse-movement hazard.

This manual assumes the user already understands standard workshop procedures and basic service safety; it does not teach generic shop fundamentals, and the scheduled pre-ride inspection is referenced to the owner's manual. Working on a vintage three-wheeler still requires strict attention to Honda's cautions for fuel, battery charging, spring-loaded starter components, brake contamination, electrical isolation, and correct final inspection. The 196-page PDF is aimed at repair work where factory measurements, assembly orientation, special-tool references, and system-specific troubleshooting matter before the ATC is returned to service.
