Honda CH250 Elite250 1986 Service & Owner's Manual Set (P/N 31KM1610)
298 Pages • ZIP Download: 2 Printable PDFs • 155.98 MB
Honda Models Covered & Key Technical Specifications
Model: CH250 Elite250
Sub-models / Variants: USA model, Canadian model
Model Years: 1985–1986
Serial Numbers: Beginning Frame No. JH2MF010-FK000001, JH2MF011-FK000001; Engine No. MF01E-5000001
-
Engine displacement: 244 cc
-
Engine type: Water-cooled 4-stroke, OHC single cylinder
-
Bore and stroke: 72 x 60 mm
-
Compression ratio: 9.8:1
-
Transmission type: V-matic automatic centrifugal clutch
-
Drive system: Belt drive
-
Fuel system: Carburetor with automatic fuel valve and choke
-
Engine oil capacity (at change): 0.8 liters
-
Coolant capacity (at disassembly): 1.35 liters
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Honda CH250 Service Manual — April 1986 issue, with ’85 and After ’85 procedures and 49-state/California configurations | 220 |

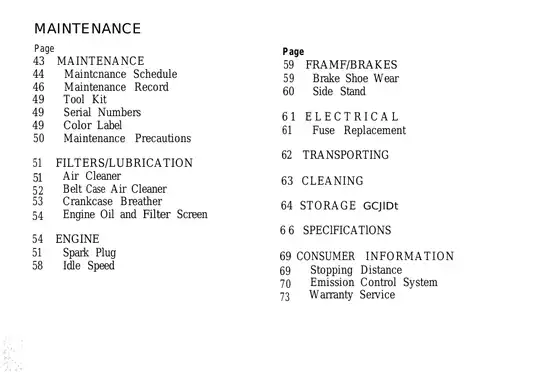

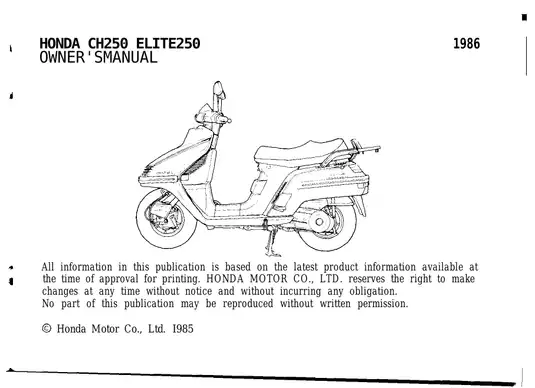

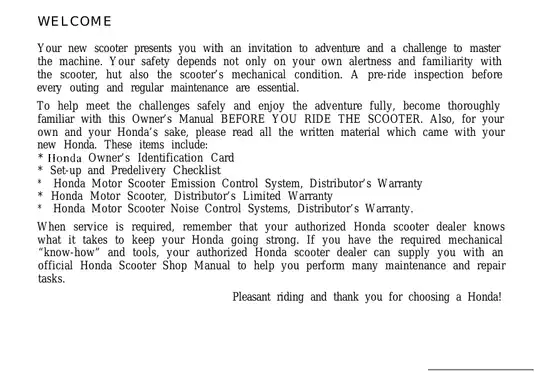

| 1986 Honda CH250 Elite250 Owner’s Manual, P/N 31KM1610 — includes USA/Canadian instrument information | 78 |
The owner’s guide covers operation and routine care; the service manual supplies component-level repair procedures and diagnostic data.
For tubeless-tire removal, repair, and remounting, the service text refers to a separate Tubeless Tire Repair Manual, which is not included.
Text Search, Diagram Detail, and File Contents
Search and reading limitations: The owner’s PDF supports OCR text search, with recognition errors and overlapping text in some maintenance-schedule entries. The service PDF has no text-search function. Neither file has embedded bookmarks. Full wiring diagrams need rotation and zooming; some small wire-color codes in the After ’85 diagram remain blurred.
ZIP download containing two printable English-language PDFs, 298 pages total. This includes the service manual’s unnumbered opening/contents page and the owner’s manual’s five preliminary pages.
Engine Overhaul, V-matic Service, and Fault Tracing
These selected topics show the main areas covered. Additional material includes side-stand checks and headlight adjustment.
-
Engine and lubrication: Step-by-step engine removal and installation, camshaft and cylinder-head work, cam timing, cylinder/piston inspection, crankcase separation/reassembly, and oil-pump service.
-
Fuel and emissions: Carburetor overhaul, auto-bystarter diagnosis, automatic fuel-valve testing, and separate 49-state/California hardware and vacuum-hose routing information.
-
V-matic drivetrain: Drive-belt and pulley inspection, dry centrifugal-clutch disassembly, final-reduction service, flywheel/alternator work, and starter-clutch repair.
-
Cooling system: Pressure testing, radiator and fan service, thermostat and thermosensor checks, and water-pump shaft, bearing, and mechanical-seal replacement.
-
Chassis and brakes: Wheel and drum-brake repair, steering-head bearings, torque-link anti-dive front suspension, rear shocks, and brake-lock adjustment.
-
Electrical diagnosis: Charging and CDI ignition tests, starter-motor overhaul, instrument checks, and separate ’85 and After ’85 full wiring diagrams.
-

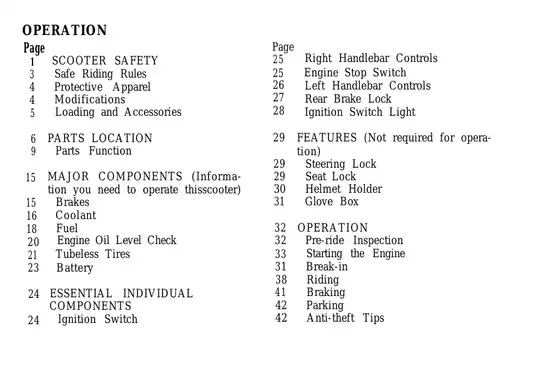

Owner operation: Controls, pre-ride inspection, starting, riding, braking, parking, scheduled maintenance, filter/lubrication work, transport, cleaning, and storage.
The owner’s guide supports rider-level operation and checks; the repair sections suit mechanically qualified owners and technicians with the specified tools and test equipment.
Engine Inspection and Cooling Repairs
Valve-guide replacement, valve-seat refacing, piston-ring installation, and connecting-rod clearance and crankshaft-runout checks extend the engine coverage beyond routine maintenance. Crankshaft bearing or oil-pump/timing-sprocket replacement calls for a new crankshaft assembly.
Oil-filter-screen service and oil-pump inspection have their own procedures. Component-specific torque tables, fluid capacities, clearances, and wear limits accompany the relevant assemblies.
Water-pump repair notes flag the impeller’s left-hand thread and the requirement for a new seal washer when replacing the mechanical seal; mishandling can damage the pump or cause leakage.
Carburetor Adjustments and California Equipment
The fuel chapter covers vacuum-chamber and air cut-off-valve service, float-valve and jet inspection, pilot-screw adjustment, and limiter-cap installation. High-altitude carburetor setup has separate settings and operating restrictions.
California-specific coverage adds purge-control-valve inspection, the charcoal canister, and evaporative plumbing. Technical Features explains the plenum chamber, air cut-off valve, and coolant-fed carburetor heater.
Pulley Tools, Suspension, and Frame Access
Pulley service includes roller and bushing checks, driven-face spring inspection, clutch-shoe replacement, and bearing work. Tool tables identify drive-pulley holder 07923-KM10000, clutch spring compressor 07960-KM10000, and pilot-screw wrench 07908-4730000, alongside pullers, drivers, reamers, and bearing-removal tools.
Oil or grease on the drive belt and pulley faces can cause slipping.
Chassis procedures cover frame-cover access, swingarm bearings, the rear brake pedal/lock mechanism, and engine-hanger components. Reference tables include chassis geometry, wheel/tire data, suspension travel, and brake specifications.
The torque-link anti-dive operation view and damper-link engine-mount section view explain how these assemblies respond to braking forces and engine vibration. Identification pages also show VIN, carburetor-ID, and color-label locations.
Electrical Tests and Symptom Charts
Ignition and starter circuit diagrams accompany tests for the battery, regulator/rectifier, CDI unit, pulse generator, starter relay, and motor. Separate checks cover lighting, switches, horn, fuel-level indication, the cooling-fan switch, thermosensor, and temperature gauge.
Cable-and-harness routing views support wire tracing. The ignition-switch-light explanation shows its connection with the horn circuit.
Fault charts address hard starting, power loss, high-speed performance, engine noise, clutch/pulley faults, handling, suspension, brakes, fuel-gauge errors, and digital-speedometer malfunctions. These charts support diagnosis before parts are removed or electrical components are condemned.
The owner’s instrument section distinguishes USA odometers in miles from Canadian odometers in kilometers; the digital speed display can switch between MPH and km/h.
Fuel-system work, rotating CVT components, hot coolant, brakes, and battery circuits can cause injury or component damage. Repairs beyond the owner-maintenance procedures should be handled by a technician with the correct tools and workshop safety practices.
Sample Valve-Clearance and Ignition Test Data
Intake and exhaust valve clearance is listed at 0.08–0.12 mm with the engine cold; the adjustment section defines cold as below 35°C (95°F).
For ignition-coil inspection, primary-winding resistance is 0.16–0.20 Ω with the coil wires disconnected. Secondary-winding resistance is 3.6–4.6 kΩ with the spark-plug cap removed for that measurement.
