Honda CRF450X 2005–2012 Service Manual (P/N 61MEY05)

This Honda service manual (P/N 61MEY05) covers the carbureted 2005–2012 CRF450X, from scheduled maintenance through engine, chassis, suspension, brake, and electrical repair.

PDF Search, Chapter Access and Diagram Detail

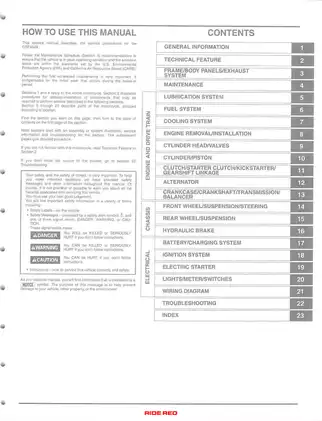

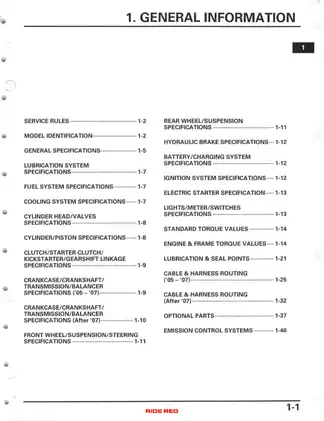

Text search and diagram labels: An OCR text layer supports searching across the service chapters, although recognition errors and gaps affect some tables and labels. Embedded bookmarks provide access to the contents and all 23 sections. Small connector and wire-color labels in the wiring diagram require zooming.

The 464-page English PDF is supplied as one printable file. The total includes the cover, one blank page, and 11 memo pages.

Engine, FCR Carburetor and Chassis Service

The selected topics below cover part of the manual’s contents. Other documented work includes hot-start adjustment and drive-chain replacement.

• Maintenance and specifications: Standard and competition schedules, frequent-replacement guidance, valve and decompressor adjustment, approved fluids, capacities, torque tables, wear limits, and lubrication and seal-point charts.

• Engine and top-end repair: Step-by-step engine removal and installation, compression testing, cylinder-head disassembly and inspection, valve-guide replacement, valve-seat refacing, camshaft and timing work, piston and cylinder service, and oil-system component inspection.

• Clutch and transmission service: Clutch removal and inspection, starter-clutch and kickstarter repair, gearshift-linkage service, crankcase separation, crankshaft removal and installation, bearing replacement, balancer work, and transmission disassembly and reassembly.

• Fuel, cooling, and emissions systems: FCR carburetor removal, disassembly, assembly, installation, float-level checking, throttle-position-sensor replacement, pilot-screw adjustment, PAIR-system inspection, cooling-system testing, coolant replacement, radiator service, and water-pump repair.

• Suspension, steering, and brakes: Wheel service, fork disassembly and damper bleeding, HPSD service, shock-bladder and damper-rod overhaul with nitrogen charging, linkage and swingarm bearing work, brake bleeding, and master-cylinder and caliper rebuilding.

• Electrical diagnosis: Battery testing, current-leak and charging-voltage checks, regulator/rectifier and alternator-coil inspection, ignition peak-voltage and resistance testing, ignition-timing checks, starter-motor repair, starter-relay checks, and lighting, switch, and tripmeter service.

• Diagrams and fault tracing: Lubrication System Diagram, Cooling System Flow Pattern, ignition and electric-starter system diagrams, and the full Wiring Diagram, plus symptom-based troubleshooting for hard starting, power loss, carburetion problems, and poor handling.

Its level of detail is suited to professional technicians and experienced owners who can work from factory specifications, use precision measuring equipment, and handle the listed Honda special tools.

Year-Specific Carburetors, Timing and Steering

The procedures distinguish 2005–2007 hardware from after-2007 configurations, with additional 2005–2006 and after-2006 differences in maintenance, carburetion, and emissions equipment. Carburetor identification numbers are FCR04A for 2005–2006, FCR13A for 2007, and FCR13B for after 2007.

Year-grouped Cable & Harness Routing layouts and separate camshaft procedures help match the service information to the installed hardware. The revised auto-decompression system and Honda Progressive Steering Damper (HPSD) are covered for after-2007 machines.

HPSD service includes disassembly, inspection, oil filling, and bleeding. Its damper rod/piston is replaced as an assembly rather than internally rebuilt.

The fuel-system procedures cover FCR carburetors rather than electronic fuel injection. The Owner’s Manual remains the referenced source for the pre-ride inspection.

Frame Access and Workshop Reference

Frame and body coverage handles fuel-tank and subframe access, body-panel removal, and exhaust-pipe, muffler, and spark-arrester service, including the correct installation sequence.

Section-opening component-location drawings, assembly views, service information, and troubleshooting charts help a technician confirm the system and required checks before teardown. Lubrication coverage extends to the oil pump, oil jet, strainer, and pressure-relief valve.

Special Tools and Component Cautions

Honda tool numbers are given throughout the procedures. Engine-service examples include tensioner stopper 070MG-0010100 or 07AMG-001A100, cam sprocket holder 07AMB-MEBA100, and valve spring compressor 07757-0010000.

Alternator service lists flywheel puller 070MC-HP10100 with adapter 070MG-KSE0100. Suspension references include fork lock-nut wrench 07WMA-KZ30100 and HPSD depth gauge 07AMJ-MENA100.

The fork chapter warns that using a crescent or adjustable wrench can damage the fork damper. The ignition section cautions that disconnecting the ICM while current is flowing can expose the module to damaging excess voltage.

Before beginning repair work, secure the motorcycle on a stable workstand and perform fuel-system work in a well-ventilated area. Let the engine, cooling system, and exhaust cool; isolate the battery where directed; and release shock-reservoir pressure exactly as specified before disassembly.

Selected Valve-Clearance and Float-Level Data

Valve-clearance inspection is specified with the engine cold, below 35°C/95°F: intake clearance is 0.16 ± 0.03 mm and exhaust clearance is 0.28 ± 0.03 mm. These values accompany the shim-selection and adjustment procedures.

For FCR carburetor inspection, the manual specifies an 8.0 mm float level alongside the float-gauge checking procedure.
