Honda CX650C & CX650 Turbo 1983 Shop Manual Set (P/N 61ME800)

The volumes provide separate procedures for the carbureted and Computerized Fuel Injection (CFI) configurations, keeping their fuel-system, electrical and chassis differences model-specific.

Turbo timing coverage: Printed page 11-9 is missing, and page 11-10 appears after page 12-0. The Turbo PDF cannot serve as a complete reference for valve timing and cam-chain installation.

PDF Search, Navigation and Wiring Detail

Search and diagram readability: The CX650C PDF has an embedded OCR text layer, although recognition errors affect some terms and diagram labels. Its 23 bookmarks, labeled 00.pdf through 22.pdf, lead to the front matter and numbered sections. Small wiring-diagram labels are readable when enlarged. The Turbo PDF has no embedded text search or bookmarks; some small component labels and wire codes in its overall wiring diagram remain blurred or unreadable even when enlarged.

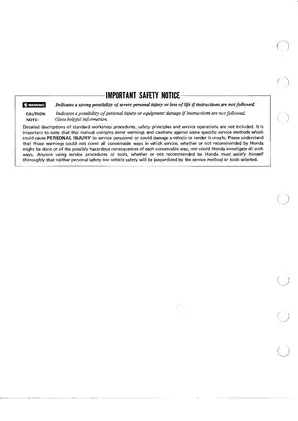

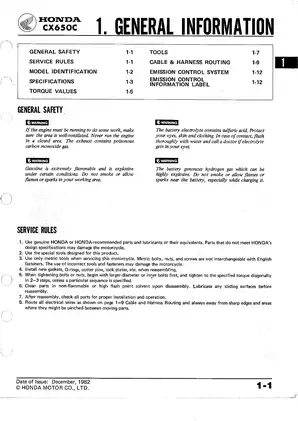

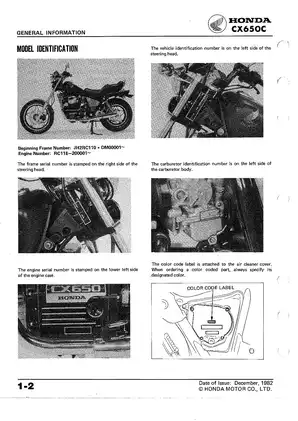

The ZIP contains two English-language printable PDFs totaling 677 pages. This total includes one cover, one safety-notice page and one contents/instructions page in each PDF, plus 13 memo pages (one repeated) and three other repeated pages in the Turbo volume.

Engine, Fuel-System and Chassis Repair

The following selected repair topics show the manuals’ coverage without reproducing the full contents. Additional material includes maintenance schedules and Turbo fuel-pump shut-off sensor testing.

• Engine repair: Step-by-step engine removal, cylinder-head and valve work, piston and crankshaft inspection, bearing selection, clutch repair and oil-pump service.

• Fuel systems: CX650C carburetor overhaul and synchronization; Turbo fuel-injector, pump, pressure-regulator and sensor diagnosis.

• Turbocharger: Assembly removal and replacement, wastegate inspection, oil-control-orifice checks and boost-related troubleshooting.

• Cooling system: Radiator pressure testing, thermostat and cooling-fan inspection, coolant replacement and water-pump mechanical-seal service.

• Transmission: Internal disassembly and reassembly, gear and bushing inspection, shift-fork and drum checks, gearshift-linkage service and final-shaft assembly.

• Chassis and final drive: Fork and steering service, brake repair and bleeding, suspension inspection, driveshaft service and final-drive gear adjustment.

• Electrical diagnosis: Charging, ignition and starter tests, CFI self-diagnosis charts, component test illustrations and model-specific wiring diagrams.

Suited to mechanics familiar with standard shop procedures and equipped for precision measurement and special-tool work; the manuals do not explain basic workshop operations.

Engine Repair and Cooling-System Access

The engine chapters cover valve-guide replacement, valve-seat grinding, rocker-arm inspection and crankshaft bearing selection. Cylinder-head bolt torque tables, valve-seat width specifications and rocker-arm shaft wear limits accompany the repair procedures.

The CX650C camshaft and cam-chain chapter includes valve-timing adjustment and automatic tensioner installation. Its cylinder-head maintenance and inspection can be performed with the engine installed.

The CX650C manual distinguishes in-frame cylinder-head service from engine-out water-pump mechanical-seal replacement. That distinction helps plan access before a cooling-system repair, alongside the coolant-capacity data and system tests.

Carburetors, CFI and Turbocharger Diagnosis

CX650C fuel-system coverage extends to vacuum pistons, air cut-off valves, accelerator pumps, float-level and fast-idle adjustments, and pilot-screw adjustment, including the idle-drop procedure and high-altitude settings. Carburetor separation cautions address damage to the fuel joint pipes and throttle linkage.

Turbo diagnostics connect ECU LED patterns and fail-safe modes with individual pressure, temperature, throttle, engine-speed and crankshaft-angle sensor tests. These charts help distinguish sensor or wiring faults from fuel-delivery problems before parts are replaced.

The P2 and PB pressure-sensor tests include atmospheric-pressure compensation and reference the combination pressure tester 07406-0050000 and inspection adapter 07999-MC70000.

The turbocharger is treated as a replaceable assembly, with internal disassembly excluded. Handling cautions explain why a bent wastegate actuator rod requires replacement of the turbocharger assembly.

Brakes, Suspension and Shaft Drive

The CX650C sections cover its front disc brake, rear drum brake and twin rear shocks. Turbo-specific material addresses front and rear hydraulic disc brakes, TRAC anti-dive forks and Pro-Link rear suspension, including linkage inspection and shock-absorber seal replacement.

Final-drive repair goes beyond lubricant changes: ring-and-pinion contact patterns, spacer selection, backlash measurement and bearing preload are documented.

Electrical Tests and Reference Diagrams

Charging-output checks, regulator/rectifier tests, ignition-coil inspection and starter-motor service are supported by system illustrations. References include the CX650C Ignition System Diagram, Battery Charging Diagram and foldout Wiring Diagram.

The Turbo manual adds a CFI System Diagram, Engine Cut-Away and symptom-based Quick Reference Chart, alongside the ECU LED fault table.

Observe the manuals' precautions for pressurized fuel and coolant systems and ignition circuits; consult a qualified technician when the work exceeds your experience.

A Preview of Valve-Clearance and Injector Test Data

For both models, the maintenance specifications list cold valve clearances of 0.10 mm at the intake and 0.12 mm at the exhaust.

The Turbo fuel-injector inspection specifies a standard terminal resistance of 1.0–3.0 ohms. Its diagnostic section also supplies separate fuel-pressure specifications for engine-stopped and idle testing.
