1989–1990 Honda GB500 Factory Service & Repair Manual (P/N 61MK601)

• 272-page PDF covering the 1989–1990 Honda GB500 shown on the original Honda Motor Co., Ltd. 1989 cover. The manual is written for the U.S.-market motorcycle and includes standard and California emissions configurations; it is not a combined GB400 or XBR500 publication.
• Covers dry-sump lubrication service, the factory maintenance schedule, valve-clearance and decompressor checks, compression testing, drive-chain adjustment, brake inspection, suspension checks, and steering-head service.
• Details engine removal and installation, cylinder-head and valve repair, camshaft and cam-chain timing, valve-seat inspection and refacing, cylinder and piston service, crankcase separation, transmission repair, crankshaft and balancer work, bearing replacement, and reassembly checks.
• Documents clutch, primary-drive, kickstarter, and gearshift-linkage repair together with flywheel, alternator, starter-clutch, starter-motor, relay, and starting-interlock diagnosis.
• Includes carburetor removal, disassembly, cleaning, float inspection, assembly, pilot-screw and high-altitude adjustment, plus secondary-air and California evaporative-emission service for the VE30A and VE31A configurations.
• Covers front fork, steering stem, wheel, rear drum-brake, shock-absorber, and swingarm work, along with front hydraulic-brake fluid replacement, air bleeding, master-cylinder repair, and caliper overhaul.

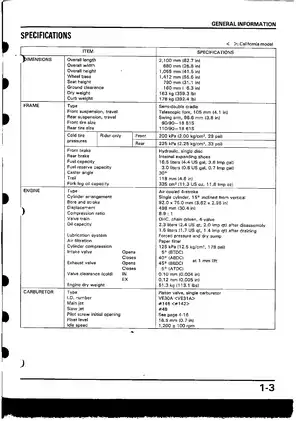

• Provides component-specific torque tables, clearances, inspection limits, fluid data, electrical test specifications, special-tool numbers, troubleshooting charts, routing views, and the full motorcycle wiring diagram.

Coverage and Workshop Scope

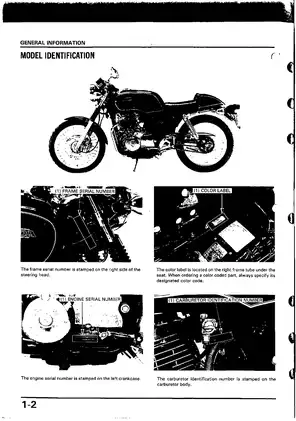

This Honda service manual goes beyond routine tune-up information. It identifies the frame, engine, carburetor, and color-code marking locations, then organizes the repair material by complete motorcycle system. The final section supplies factory fault-isolation charts for hard starting, loss of power, and poor low-speed or idle performance.

The engine chapters separate in-frame work from repairs that require removal. Cylinder-head, camshaft, rocker-arm, sub-rocker-arm, cam-chain tensioner, valve, cylinder, and piston service can be performed with the engine installed. Crankshaft, connecting-rod, transmission, balancer, and crankcase-bearing repair require engine removal and crankcase separation—an important distinction when planning labor, lifting support, workspace, and parts.

Lubrication, Fuel, and Engine Detail

The lubrication section is built around the GB500’s forced-pressure dry-sump system. It covers the oil-level checking method, filter and strainer service, dual-section oil-pump inspection, oil-tank removal and screen cleaning, oil-line installation, and chassis lubrication points.

Fuel-system coverage includes the vacuum piston, jet needle, float chamber, pilot screw, air cut-off valve, carburetor cleaning, installation, and idle-drop adjustment. Separate pages address U.S. high-altitude settings, secondary-air supply, and the California purge-control valve, charcoal canister, numbered emission hoses, and vacuum routing. These details help identify the correct emissions layout before repair or carburetor parts are selected.

Cylinder-head repair includes camshaft and rocker inspection, valve-guide measurements, valve-seat contact checks and refacing, cam-chain timing, tensioner installation, decompressor components, and final adjustment. The lower-engine chapters continue through clutch inspection, kickstarter indexing, shift-linkage assembly, flywheel removal, one-way starter-clutch service, transmission and shift-fork inspection, crankshaft and balancer checks, and crankcase-bearing replacement.

Chassis and Electrical Diagnosis

Chassis procedures cover fork disassembly, seal and bushing replacement, steering-stem and bearing-race service, wheel inspection, rear-brake shoe and cam service, shock-absorber disassembly, swingarm removal, and drive-chain guide work. The front brake chapter includes fluid replacement and bleeding, pad and disc inspection, master-cylinder disassembly, and caliper piston and seal service.

Electrical diagnosis is divided into charging, ignition, starting, and lighting sections. It provides battery guidance, alternator and regulator/rectifier checks, CDI and pulse-generator diagnosis, ignition-timing inspection, side-stand and diode tests, starter-motor and relay checks, and continuity charts for the principal switches. Brake/taillight warning-sensor and tachometer tests are also included.

Illustrations, Tools, and GB500-Specific Service Notes

Useful illustrations include the cable-and-harness routing views, dry-sump oil-circuit layout, California vacuum-hose routing diagram, cam-chain timing views, transmission and balancer assembly drawings, and the full wiring diagram. Honda tool references include the cam-chain tensioner holder 07973-MG30003, rotor puller 07733-0020001, fork-seal driver 07747-0010100, and shock-absorber compressor 07GME-0010000.

The right exhaust-valve clearance check is GB500-specific: the manual explains that the half- and one-way decompressor can hold the valve slightly open and produce a false reading when the crankshaft is positioned incorrectly. During crankcase repair, Honda also cautions against prying the case halves apart or forcing them together; unusual resistance indicates misaligned shafts or dowels and puts the sealing faces and internal parts at risk.

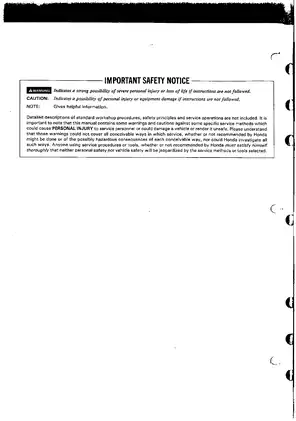

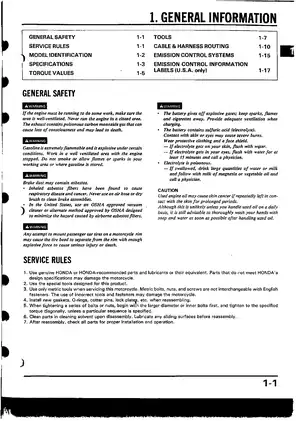

Support the motorcycle securely before engine, wheel, fork, shock, or swingarm service. Let the engine and exhaust cool, and follow the manual’s precautions for gasoline, battery electrolyte, brake dust, and hydraulic brake fluid.
