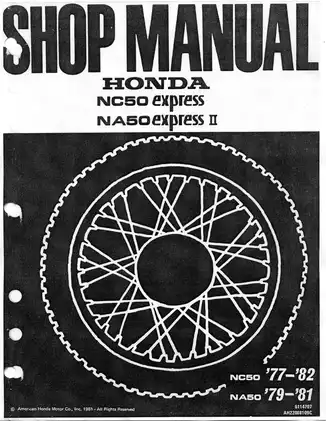

Honda NC50 Express / NA50 Express II – 1977–1982 Service Manual (P/N 6114707)

150 Pages • ZIP Download: Printable PDF • 37.19 MB

4.5starstarstarstarstar_half(4)
$14.89 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: NC50 Express, NA50 Express II

Sub-models / Variants: 1977-1982 NC50, 1979-1981 NA50, Canadian model variant (1980 NC50), NA50 (A TYPE wiring diagram)

Model Years: 1977–1982 (1977, 1978, 1979, 1980, 1981, 1982)


  • Engine: Air-cooled, 2-stroke, single-cylinder flat

  • Displacement: 49 cc

  • Transmission: Automatic centrifugal wet clutch, primary reduction chain and gear; two-speed automatic on 1981 NA50 and 1982 NC50

  • Idle speed: 1,800 rpm

  • Ignition system: Magneto and battery, 18° BTDC timing on breaker-point models; capacitor-discharge ignition on 1981 NC50/NA50 and 1982 NC50

  • Spark plug: NGK BP6HS, BP5HS; ND W20FP, W16FP (1977 NC50). NGK BP4HS, BP5HS; ND W14FP-L, W16FP (1978–1981 NC50, except the 1980 Canadian variant; 1979–1981 NA50). Standard NGK BPR4HS or ND W14FPR-L (1980 Canadian NC50 and 1982 NC50).

  • Battery: 6V 2AH (some models 6V 4AH)

  • Tire pressure (front/rear): NC50: 21 psi / 28 psi; NA50: 18 psi / 32 psi

  • Cylinder head nut torque: 90–120 kg-cm (6.5–8.7 ft-lbs)

  • Fuel capacity: NC50 through 1981: 2.0 liters; NA50: 2.5 liters; 1982 NC50: 4.55 liters

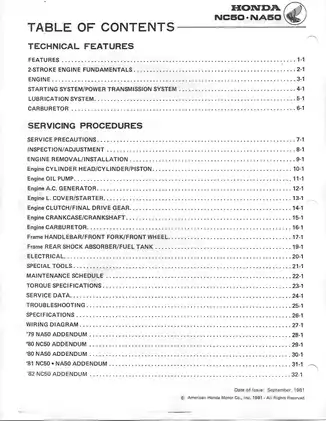

Honda Manual Features & Selected Content Preview

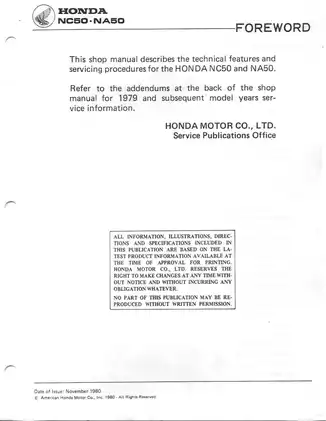

Honda shop manual P/N 6114707 covers the 1977–1982 NC50 Express and 1979–1981 NA50 Express II, combining the base NC50 sections with five model-year addenda. Later-model procedures refer back to the base sections for unchanged work.

PDF Search, Bookmarks and Wiring Detail

Navigation and small labels: PDF text search is not available. Embedded bookmarks link to individual pages using image filenames rather than chapter titles. Small wiring labels require zooming, and some fine lettering in the 1982 diagram remains faint.

ZIP download containing one printable 150-page PDF: 81 pages of base material, including seven cover, safety, introductory, contents, divider, and memo pages; plus the 1979 NA50 (15 pages), 1980 NC50 (11), 1980 NA50 (5), 1981 NC50/NA50 (28), and 1982 NC50 (10) addenda.


Engine, Starter and Electrical Service

The following selected coverage outlines the main workshop areas. Other included topics cover air-cleaner servicing and battery-electrolyte checks.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head decarbonizing, cylinder and piston inspection, crankcase separation, and crankshaft and connecting-rod checks.

  • Lubrication and carburetor: Oil-pump removal, leak checks, bleeding and priming, plus carburetor disassembly, float-valve inspection, and jet checks.

  • Starter and drivetrain: Spring-starter and kick-starter service, clutch and drive-plate removal, final-drive inspection, and NA50 two-speed automatic transmission operation.

  • Electrical diagnosis: A.C. generator service, breaker-point ignition adjustment, CDI testing, charging-output checks, rectifier inspection, and lighting, horn, stoplight, and turn-signal diagnosis.

  • Brakes and chassis: Steering-head and ball-race work, front-fork and wheel service, drum-brake inspection, brake-arm resetting, and rear-shock disassembly.

  • Workshop references: Model-specific wiring diagrams, cable and fuel-line routing, exploded assemblies, troubleshooting charts, special-tool data, maintenance schedules, and component-specific service specifications.

Suited to technicians and mechanically proficient owners with the proper tools; standard workshop procedures are not explained, and the maintenance schedules distinguish owner checks from work normally assigned to a Honda dealer.

Model-Year Changes and Addendum Use

The early NC50 specification pages distinguish 1977 and 1978 engine and spark-plug data. The 1979 NA50 material adds its own engine-removal layout, under-seat fuel/oil filler and electrical layout, seat and rear-shock details, cable routing, and wiring.

For 1980, the NC50 electrical section separates U.S. and Canadian turn-signal and condenser configurations. The NA50 receives separate routing, specification, and wiring updates, including a diagram labeled “NA50—A TYPE.”

The combined 1981 addendum documents capacitor-discharge ignition, automatic choke, and kick starting. Its NA50 transmission explanation identifies two centrifugal clutches, a ratcheting one-way clutch, and a planetary gearset, supported by “How the Transmission Works in 1st Gear” and “How the Transmission Works in 2nd Gear” diagrams.

For 1982, the NC50 specifications also list two-speed gearing. That addendum updates the front fork/front wheel and front-axle nut torque, fuel tank, seat, rear carrier, charging-system tests, cable and fuel-line routing, fuel-filter maintenance interval, and wiring.

Using the base procedures alongside the matching addendum helps keep earlier ignition and starter instructions separate from the later systems.

Internal Engine, Lubrication and Fuel-System Detail

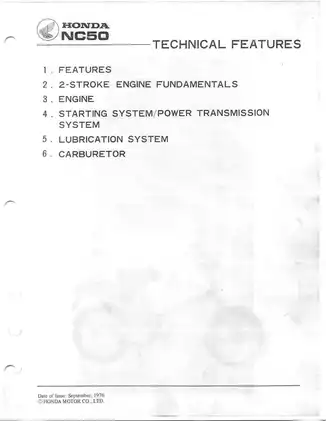

The technical-feature sections explain dual reed valves, three-port Schnuerle loop scavenging, the piston-type carburetor, and the crankshaft-driven plunger oil pump. “NC50 Two-Stroke Port and Valve Timing,” “NC50 Scavenging,” and “Lubricating Oil Flow” connect component layout with engine operation.

The base NC50 and 1979 NA50 engine-removal sections state that all engine service except crankshaft work can be performed with the engine in the frame. Internal inspection drawings distinguish piston, ring, pin, cylinder, crankshaft, and bearing checks.

The 1979 NA50 carburetor section identifies its float level as nonadjustable. The 1981 material adds throttle/oil-pump cable adjustment, separate inlet-line bleeding and outlet-line priming, and automatic-choke operation through the bystarter chamber and control box.

The automatic-choke control box is not to be disassembled. The cylinder-replacement note requires the replacement to carry the same A or B letter code as the original.

Starter Assemblies and Repair Cautions

The “Power Transmitting System” illustration traces the starter drive and chain, centrifugal wet clutch, drive chain, helical final gears, and rear wheel.

The spring-starter warnings address stored energy before left-cover, starter, or top-end work; opening the spring/sustaining-plate assembly can release the spring dangerously. The manual treats that unit and the left cover as a replacement assembly.

Assembly notes also identify starter-sprocket punch-mark indexing and warn against scratched crankcase mating surfaces, which can compromise the pressure-tight two-stroke crankcase.

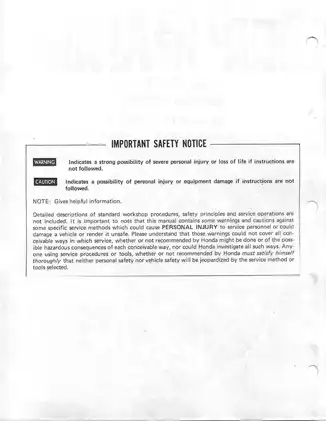

Observe the publication's safety precautions when working around the stored starter spring, fuel, battery electrolyte and hydrogen gas, high-tension ignition, and rotating drivetrain parts.

Electrical Tests and Wiring Variants

Early-model electrical sections cover breaker points, condenser, ignition coil, A.C. generator, rectifier, and battery. CDI-era documentation adds component-location views, ignition-circuit inspection, ignition-coil and generator resistance tests, CDI terminal charts, charging-output tests, rectifier checks, and switch-continuity data.

The CDI test chart includes meter-polarity guidance. The generator inspection section specifies replacing the stator coil and flywheel as a matched set rather than replacing only one component.

Separate wiring diagrams cover the base NC50, 1979 and 1980 NA50, 1980 U.S. and Canadian NC50, 1981 NC50/NA50, and 1982 NC50. Supporting drawings show connector relationships, harness routing, and component locations.

Troubleshooting tables address no-start and starts-then-stops conditions, power loss, overheating, starter and clutch faults, weak or missing spark, heavy steering, poor braking, and drivetrain noise.

Chassis Work and Special Tools

Chassis instructions extend to handlebar and steering-head assemblies, ball-race removal and installation, telescopic forks, wheel hubs, spoke and axle inspection, and front and rear brake-arm resetting. Rear-shock procedures accompany fuel/oil tank, seat, and rear-carrier work.

Engine tools: The tool references identify flywheel holder 07925-0010001, case pullers 07933-1470000 and 07935-1870000, clutch pullers 07935-8050000 and 07935-1470001, and oil-seal assembling tools 07953-1470000 and 07965-1480001.

Steering and suspension tools: Pin spanner 07916-0440000 and rear shock absorber compressor 07959-3290000 are identified with their related work.

A Preview of Ring and Crankshaft Inspection Limits

The base NC50 piston-inspection section lists a piston-ring end gap of 0.15–0.35 mm, with a 0.6 mm service limit, alongside an illustration of ring positioning for measurement.

The crankshaft inspection specifies runout of 0.05 mm maximum and a 0.15 mm service limit at the illustrated measuring points. Connecting-rod and bearing inspection drawings accompany these figures.

Customer Reviews

Read what our customers say about this Honda Moped manual and share your own experience.

Checkout
Honda NC50 Express / NA50 Express II – 1977–1982 Service Manual (P/N 6114707) $14.89
