Honda ST1300/A Pan-European Shop Manual Set, 2003–2007 (P/N 62MCS00)

These regional editions overlap in their core service procedures. Use the edition that matches the motorcycle’s equipment and emissions configuration; the Pan-European volume adds a dedicated HISS immobilizer chapter.

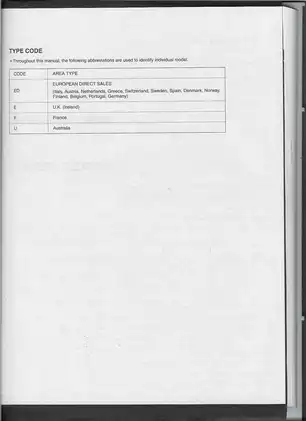

Wiring coverage: The Pan-European file contains the Italian/Spanish/Dutch ED/E/F Standard and Deluxe diagrams. Its contents page also lists English/French/German and Australian diagrams that are absent from that file. The North American volume includes English Standard and Deluxe wiring diagrams.

PDF Search, Diagram Detail and File Contents

Search and navigation: Neither PDF supports text search or includes embedded bookmarks. Small wire-color codes and connector labels in the wiring diagrams require zooming; the Pan-European diagrams span adjacent PDF pages.

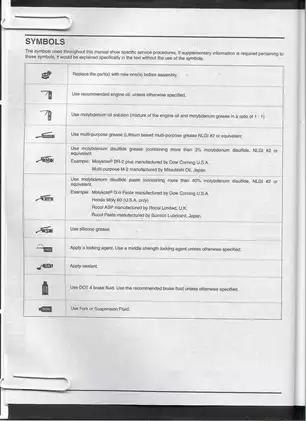

The ZIP download contains two printable PDFs totaling 1,262 pages, including the covers and preliminary pages already contained in each volume. Both publications are in English, with the multilingual wiring sheets noted above.

V4 Repair, PGM-FI Diagnosis and Combined Brakes

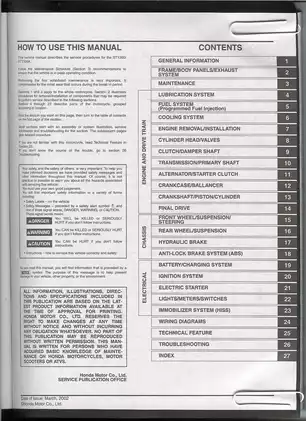

The following selected coverage highlights summarize the main workshop areas rather than reproduce the complete contents. Other topics include body-panel removal charts and fuel-level indicator troubleshooting.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, camshaft installation, crankcase separation, and piston inspection.

• Clutch and transmission: Hydraulic clutch bleeding, master- and slave-cylinder service, clutch inspection, gearbox disassembly, and final output shaft repair.

• Shaft final drive: Ring-and-pinion service, bearing replacement, shim selection, backlash measurement, and gear-tooth contact-pattern checks.

• PGM-FI diagnosis: MIL failure-code charts, sensor and injector circuit tests, fuel-pressure checks, throttle-body service, and starter-valve synchronization.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, radiator removal, water-pump seal replacement, and engine oil-pressure testing.

• Brakes and chassis: Combined-brake bleeding, caliper and master-cylinder repair, ABS fault diagnosis, fork service, and steering-bearing replacement.

• Electrical systems: Charging and ignition tests, starter-motor repair, wiring diagrams, and HISS diagnostic and key-registration procedures in the Pan-European edition.

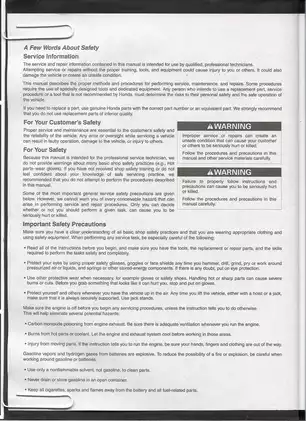

Honda identifies these manuals as intended for qualified professional technicians with the training, tools, and equipment required for the work.

Engine Internals and Drivetrain Work

The engine chapters distinguish work possible with the engine in the frame, including cylinder-head and camshaft service, from jobs requiring engine removal. Bearing-selection information links crankshaft, connecting-rod, and crankcase markings to the appropriate replacement bearings.

Component-specific torque tables accompany the repair sections. The final-drive chapter combines backlash checks with drive-side and coast-side contact-pattern illustrations, helping assess gear engagement after bearings, gears, or the housing are replaced.

Excessive force during balancer backlash adjustment can damage the gears, bearings, and shafts. Secure the motorcycle on stable supports before removing heavy drivetrain components.

Fuel Injection and Cooling Diagnosis

PGM-FI troubleshooting connects MIL blink codes to circuit checks and ECM test-harness terminal layouts. These charts help distinguish sensor faults from wiring or connector problems before an ECM replacement is considered.

The throttle body is factory preset. Disturbing its white-painted fasteners can upset throttle and idle-valve synchronization; the manual separates permitted service work from those factory settings.

The cooling chapter includes the System Flow Pattern, thermostat testing, and mechanical-seal replacement information. The Lubrication System Diagram supports oil-pressure diagnosis and oil-pump service. The North American edition also covers the EVAP canister and purge-control components.

Combined Brakes, ABS and Chassis

The Dual Combined Brake System has a dedicated bleeding procedure covering the secondary master cylinder and linked circuits. ABS documentation adds a System Diagram, problem-code retrieval, diagnostic flowcharts, and wheel-speed sensor checks.

ABS modulator coverage is limited to diagnosis and assembly replacement; Honda prohibits internal modulator disassembly. Suspension documentation covers fork seals and bushings, steering-bearing preload, swingarm bearings, and shock-absorber inspection.

Electrical Equipment and HISS

Charging-system tests extend to alternator windings and rectifier checks. Starter-circuit diagnosis, ignition peak-voltage tests, and Standard/Deluxe wiring diagrams support electrical fault tracing.

The Pan-European HISS chapter addresses indicator behavior, key registration, receiver circuits, and ECM connections. Windscreen-adjuster coverage includes the Deluxe model’s motor, limit switches, and up/down relays; bodywork sections cover panels, mirrors, and windscreen removal.

Selected Valve, Final-Drive and Cooling Specifications

Intake valve clearance is specified at 0.16 ± 0.03 mm with the engine cold, below 35°C. Cylinder-head installation specifies a final 69 N·m for the oiled 10 mm bolts, reached through the prescribed staged, crisscross tightening procedure.

Final-drive inspection gives a standard gear backlash of 0.05–0.15 mm, distinct from the wear limit. Cooling-system data lists 2.66 liters for the radiator and engine, excluding the separately specified reserve tank.
