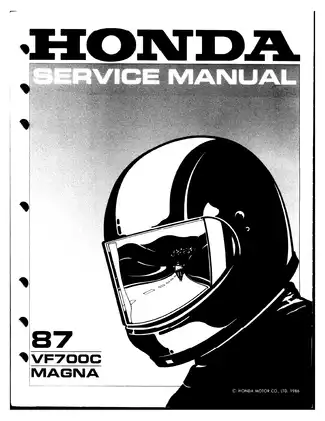

1987 Honda VF700C Magna Service Manual (P/N 61MN000)

Built specifically for the 1987 Honda VF700C Magna, this factory documentation set pairs Honda’s December 1986 service manual with the later illustrated parts catalog. It covers the 699 cc liquid-cooled DOHC V4, six-speed transmission, hydraulic clutch, shaft final drive, carburetion, chassis, brakes, and electrical systems. The material is written for technicians, independent repair shops, and experienced owners who need model-specific factory procedures rather than general maintenance advice.

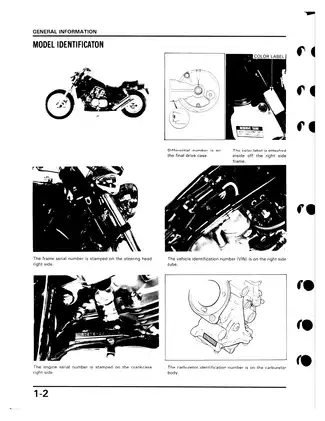

• Model and serial coverage: Area code A covers non-California machines with engine numbers RC21E-2300015 through RC21E-2304999 and frame ranges RC210-HM300007 through RC210-HM303508 and RC210-HA305001 through RC210-HA310415. Area code AC covers California machines with engine numbers RC21E-2300020 through RC21E-2303889 and frame ranges RC211-HM300006 through RC211-HM300514 and RC211-HA305003 through RC211-HA311015.
• Engine, fuel, and cooling repair: Covers engine removal and installation; camshaft, cylinder-head, valve-guide, valve-seat, valve-timing, and valve-clearance work; carburetor-bank removal, separation, reassembly, synchronization, pilot-screw service, and U.S.-model high-altitude adjustment. California-only secondary-air and evaporative-emission controls are treated separately, along with cooling-system testing, thermostat, radiator and fan, and water-pump service.
• Clutch, transmission, and final drive: Details clutch-fluid replacement and bleeding, master- and slave-cylinder repair, clutch and starter-clutch service, gearshift linkage, crankcase separation, piston, connecting-rod, and crankshaft work, internal transmission inspection, countershaft and output-gear setup, drive-shaft service, and final-drive tooth-contact and backlash adjustment.
• Chassis and brake procedures: Includes front wheel, fork, handlebar, steering stem, and steering-head bearing service; rear wheel, shock absorber, swingarm, and drum-brake work; plus hydraulic front-brake bleeding, master-cylinder, caliper, pad, and disc procedures.
• Electrical diagnosis: Provides battery and charging-system tests, ignition-coil and spark-unit checks, pulse-generator inspection, starter-motor and relay diagnosis, clutch-diode testing, switch and instrument checks, system-specific troubleshooting, and a complete wiring diagram with Honda wire-color codes.
• A 368-page, two-PDF set: Includes the 283-page Service Manual P/N 61MN000 and an 85-page December 1993 first-edition parts catalog marked with publication code 14MN0HM. The catalog adds engine- and frame-group exploded views, Honda part numbers and codes, quantities, area applications, serial breaks, color tables, and part-number and description indexes.

In-Frame and Internal Repair Scope

The service manual clearly separates work that can be performed with the engine in the frame from jobs that require deeper disassembly. Cylinder heads, clutch, alternator, starter motor, carburetors, oil pump and filter, gearshift linkage, and the cooling system can be serviced in the chassis. Piston, connecting-rod, crankshaft, and internal transmission repair requires crankcase separation.

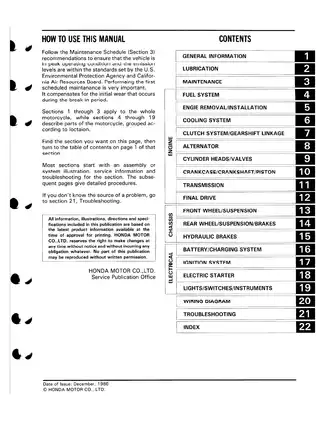

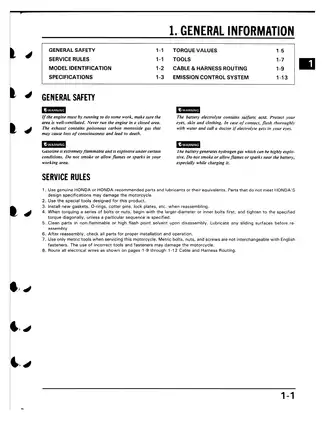

Each section opens with service information, troubleshooting, specifications, torque values, special tools, and an assembly or system illustration before moving into the repair procedures. Factory reference data covers fluid capacities, approved lubricants and hydraulic fluids, valve and bearing clearances, wear limits, bearing color codes, gear preload, backlash and tooth-contact checks, electrical resistance and charging tests, and final operational inspections.

Diagrams, Test Information, and Special Tools

Representative illustrations include the cable and harness routing drawings, crankcase lubrication diagram, California evaporative-emission control schematic, clutch system and gearshift linkage exploded assembly, final-drive gear tooth-contact patterns, and the complete wiring diagram. The separate troubleshooting chapter addresses hard starting, lack of power, poor low- or high-speed performance, charging faults, weak or missing spark, and handling complaints.

Honda’s tool charts identify equipment by part number, including vacuum gauge set 07404-0020000, transmission preload inspection tool 07998-MC70000, pinion joint holder 07926-ME90000, and fork seal driver 07947-4630100. The parts catalog supports repair planning and ordering with model-application columns and supersession information current to its 1993 print date. Its illustrated plates are representative parts-identification views rather than assembly instructions, so the service manual remains the source for repair sequence and component setup.

Manual-Specific Repair Cautions

The crankcase section warns that the color-coded, select-fit bearing inserts must remain in their assigned locations; interchanging them can produce incorrect oil clearance and major engine damage. During camshaft installation, forcing a valve open can damage the camshaft holders or their bearing surfaces.

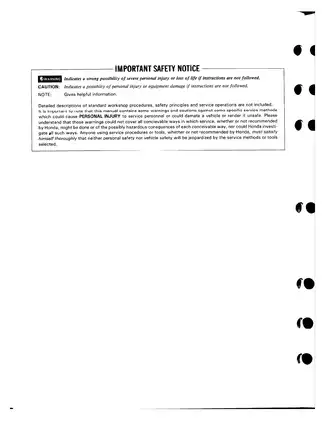

The publication assumes standard workshop knowledge and does not teach basic service methods. Tubeless tire repair is referred to a separate Honda Tubeless Tire Manual. Fuel-system, battery, brake-hydraulic, cooling-system, and engine-removal work carries fire, chemical, pressure, and lifting hazards; support the motorcycle securely and follow the factory cautions before beginning repair.
