1988-1993 Honda VT600C Shadow Service Manual

Service guide for all VT600C models including the Shadow variant. Documents engine, chassis, and electrical systems for comprehensive repair coverage. PN 61313-MR1000

4.7starstarstarstarstar_half(3)
visibility Preview Available
Honda 1988-1993 Honda VT600C Shadow Service Manual manual page preview - page 1 of

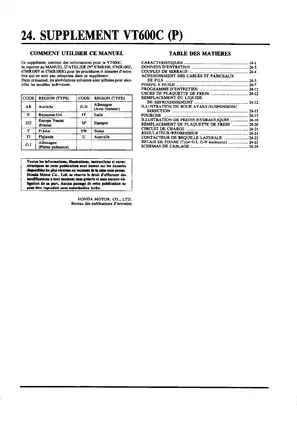

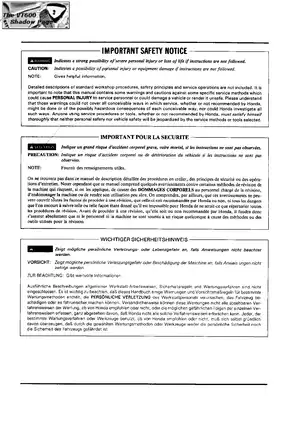

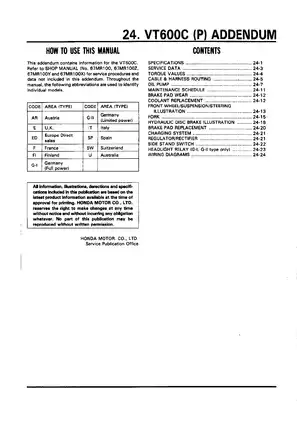

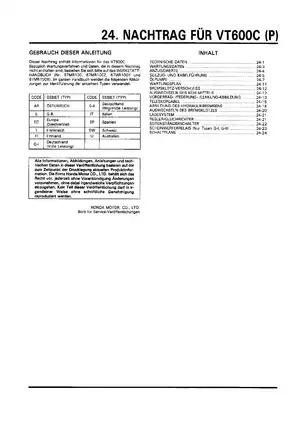

Sample pages from the 1988-1993 Honda VT600C Shadow Service Manual manual

Honda 1988-1993 Honda VT600C Shadow Service Manual manual preview page 1 - thumbnail
Honda 1988-1993 Honda VT600C Shadow Service Manual manual preview page 3 - thumbnail
Honda 1988-1993 Honda VT600C Shadow Service Manual manual preview page 4 - thumbnail
info_outline Click thumbnails to preview different pages
$17.76 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Honda Models Covered & Key Technical Specifications

Models: Honda VT600C Shadow
Build Years: 1988–1993
Serial Numbers: PC21–2000001 (G-I), PC21–3000001 (G-II)
Technical Data:

  • Engine: 52-degree V-twin, water-cooled, 4-stroke SOHC
  • Displacement: 583 cc
  • Transmission: 4-speed constant mesh
  • Clutch: Wet, multi-plate
  • Fuel system: Dual constant vacuum carburetors (VDFFA)
  • Spark plugs: NGK DPR8EA-9 or ND X24EPR-U9
  • Ignition timing: 6.2 degrees BTDC at idle, 30 degrees BTDC at 6,000 rpm
  • Battery capacity: 12V 8AH
  • Final drive: Chain drive
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26458 / Linda Edwards
File Size:
40.20 MB
File Type:
ZIP
Language:
English, French, German
Printable:
Yes
Category:
Bike
Last updated / verified
Feb 20, 2026

Honda Manual Features & Content Preview

1988–1993 Honda VT600C Shadow Service Manual

  • Covers 1988–1993 Honda VT600C Shadow motorcycles, detailing technical maintenance for 583cc V-twin engine and chassis systems
  • Official Honda publication dated April 1988, including trilingual (English, French, German) specifications and technical guidance
  • Contains 47 high-resolution exploded-view diagrams and 35 maintenance specification tables
  • File link appears in your order confirmation straight away
  • OCR text layer lets you jump to a torque spec by keyword
  • This edition serves as the foundational service reference for all VT600C models, including G-I and G-II regional variants
  • Features a complete what an OEM service publication covers chapter walkthrough for engine, chassis, and electrical diagnostics

Maintenance and Technical Scope

The 1988–1993 Honda VT600C Shadow service manual provides structural coverage for the complete motorcycle, segmented into 20 distinct system chapters. Initial sections focus on general information, including model identification, special tool requirements, and comprehensive cable and wire harness routing guidelines. Subsequent chapters detail specific engine maintenance tasks, from routine oil changes and filter replacements to cooling system care, carburetor synchronization, and cylinder compression evaluation.

Specification Highlights

Technical data provided includes extensive torque tables for engine and chassis fasteners, fluid capacities, and precise clearance requirements for intake and exhaust valves. Engine oil capacity is specified at 2.8 liters after full disassembly. Valve clearance for the intake is listed at 0.15–0.22 mm in the cylinder head specification table. Cylinder compression for the 1988–1993 Honda VT600C Shadow is documented at 1,324 kPa. Electrical references include ignition timing, spark plug heat ranges, and fuse ratings. Reference only — always consult a certified technician before performing service on this equipment.

This factory-level technical reference documents 1988–1993 Honda VT600C Shadow maintenance procedures, providing engine, chassis, and electrical specifications essential for the service of the 583cc V-twin power unit and its supporting systems.
