Honda VT1100C2 Shadow 1998–2001 Service Manual (P/N 61MZ810)

• Model coverage and revision level: Covers 1997–2001 Honda VT600C and VT600CD Shadow variants, with 49-state, California, and Canada-specific material. The 448-page PDF contains the June 1998 Honda service publication together with pages revised in October 1999 and August 2000; the August 2000 sheets are marked for 1997–2001 VT600C/CD.
• Fuel-system configurations: Separates the 1997–1998 dual CV carburetor, fuel-pump, and fuel-filter arrangement from the later single CV carburetor with accelerator pump and fuel auto valve. Procedures cover carburetor synchronization where applicable, pilot-screw adjustment, high-altitude adjustment, and California evaporative-emission controls.
• Engine and drivetrain repair: Documents engine removal and installation, clutch and gearshift-linkage service, alternator and starter-clutch work, cylinder-head and camshaft removal, valve-guide replacement, valve-seat refacing, piston and cylinder service, crankcase separation, connecting-rod inspection, and transmission repair.
• Chassis and brake service: Details front and rear wheel work, fork disassembly and assembly, steering-stem service, rear shock and swingarm removal, drive-chain inspection, rear drum-brake repair, and front hydraulic-brake bleeding, master-cylinder service, and caliper overhaul.
• Testing and troubleshooting: Provides oil-pressure checks, cooling-system pressure testing, thermostat and water-pump inspection, charging-system fault charts, ignition peak-voltage diagnosis, starter-interlock testing, switch checks, and symptom-based troubleshooting for starting, power, high- and low-speed performance, and handling problems.
• Diagrams and routing: Includes the Cooling System Flow Pattern, Cable & Harness Routing layouts, Vacuum Hose Routing Diagrams, battery/charging and ignition system diagrams, and full wiring sheets labeled “After ’93,” “’98–’00,” and “After ’00.”
• Shop specifications: Supplies assembly-specific torque tables, lubrication and seal points, capacities, wear limits, clearance data, electrical test specifications, and a numbered Honda special-tool reference covering engine, carburetor, bearing, fork, steering, and electrical work.

Workshop Repair Scope

The workshop manual is built around the 583 cc liquid-cooled, 52-degree V-twin, with a chain-driven OHC valvetrain, mechanical wet clutch, constant-mesh four-speed transmission, and chain final drive. Honda states that the manual is written for readers who already have basic maintenance knowledge of Honda motorcycles, scooters, or ATVs, so it assumes normal shop practice rather than teaching mechanical fundamentals from scratch.

Frame and body sections cover access through the seat, steering and side covers, fuel tank, rear fender and sub-frame, exhaust pipes, and muffler. The manual also makes important repair boundaries clear. Camshaft work and front-cylinder-head service can be performed with the engine installed, while rear-cylinder-head, cylinder, piston, and oil-pump work require engine removal. Crankshaft, connecting-rod, and transmission service requires crankcase separation. The rear shock absorber is covered for removal, inspection, and installation but is not to be disassembled; a damaged unit is replaced.

Model-Year and Regional Differences

The most significant service split is between the 1997–1998 fuel system and the after-1998 layout. The manual supplies separate removal, disassembly, reassembly, installation, and adjustment coverage for both configurations, preventing parts or repair procedures from being selected from the wrong version.

The 2001 electrical update is also identified. Models through 2000 use a thermosensor and resistance-based inspection, while the after-2000 configuration uses a thermo switch and continuity test. The side-stand switch connector and related circuit layout also change for the later model. California-only chapters cover the evaporative-emission purge control valve and carburetor air-vent control valve, while the U.S.-only high-altitude procedures are divided by carburetor configuration.

Tools, Repair Cautions, and Safety

Representative Honda tool numbers include the carburetor float-level gauge 07401-0010000, flywheel holder 07725-0040000, rotor puller 07733-0020001, and peak-voltage adapter 07HGJ-0020100. The manual also identifies valve-guide, valve-seat, bearing, steering-stem, clutch, and fork tools with their alternatives where applicable.

The alternator section flags the flywheel bolt’s left-hand thread and warns against damaging the crankshaft key groove during rotor removal. The piston chapter requires new piston-pin clips because reusing them can lead to serious engine damage.

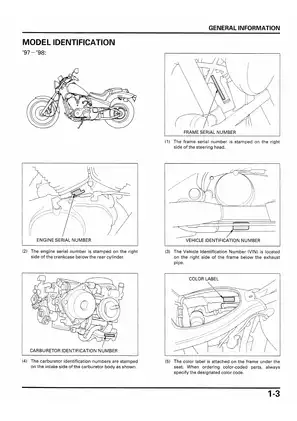

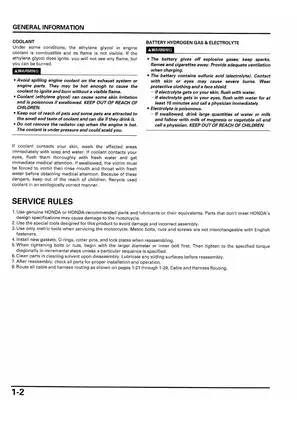

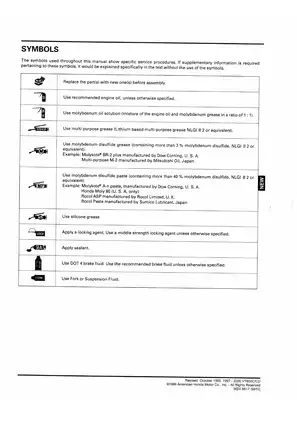

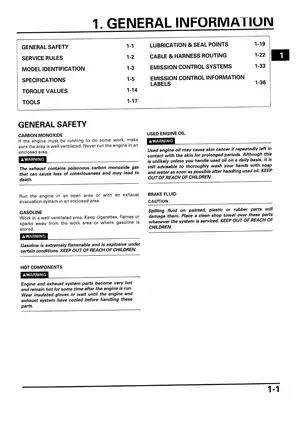

Follow the manual’s safety requirements for gasoline vapor, hot pressurized coolant, battery electrolyte, brake-fluid contamination, and secure motorcycle support during wheel, suspension, and swingarm work.
