Honda VT600C Shadow 1988–1996 Service Manual
532 Pages • 1 Printable PDF (EN, FR, DE) • Download
Honda Models Covered & Key Technical Specifications
Model: VT600C Shadow
Sub-models / Variants: 4-speed constant mesh transmission, Water-cooled 4-stroke SOHC 52-degree V-twin; Europe Direct Sales (ED), France (F), Germany — full power (G / G-I), Germany — limited power (G-II), Sweden (SD), Switzerland (SW)
Model Years: 1988–1996 (1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996)
Serial Numbers: G-I: PC21E-2000001~ (Engine), PC21-2000001~ (Frame); G-II: PC21E-3000001~ (Engine), PC21-3000001~ (Frame)
-
Engine: 583 cm³ water-cooled SOHC 52° V-twin
-
Bore and stroke: 75.0 x 66.0 mm
-
Compression ratio: 9.2:1
-
Transmission: 4-speed constant mesh
-
Primary reduction: 1.888
-
Final reduction: 2.750
-
Idle speed: 1,100 ± 100 min⁻¹ (1,200 ± 50 min⁻¹ for SW model)
-
Engine oil capacity: 2.8 L after disassembly, 2.25 L after filter change
-
Charging system: 12V 8AH battery, 0.345 kW alternator
-
Spark plug: NGK DPR8EA-9 / ND X24EPR-U9 (standard)
Honda Manual Features & Selected Content Preview
Honda’s April 1988 VT600C Shadow shop manual documents engine, chassis, and electrical service. This PDF contains the base manual only; no later model-year supplement chapters are included.
PDF Access and Diagram Legibility
Search, navigation, and wiring detail: PDF text search and embedded bookmarks are not available. Some small labels in the full wiring diagram remain difficult to read even when enlarged. The separate charging, ignition, and starter schematics provide clearer circuit detail.

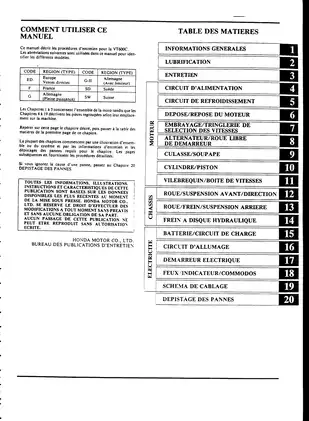

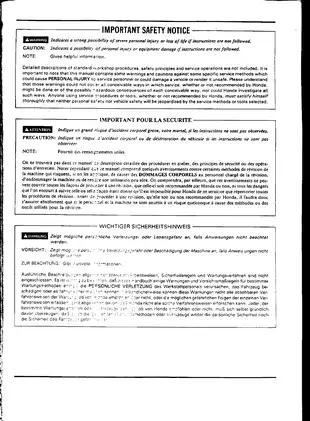

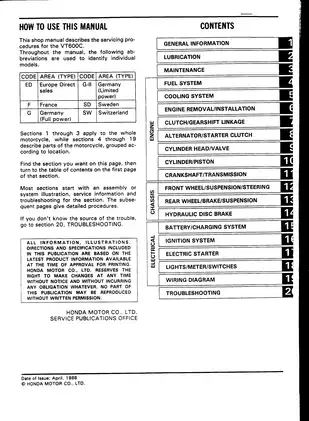

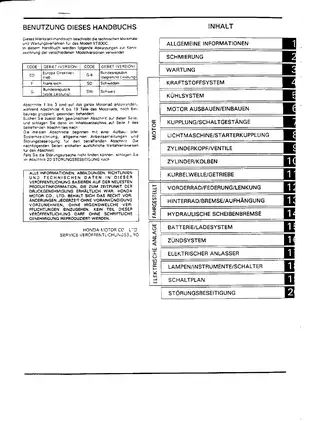

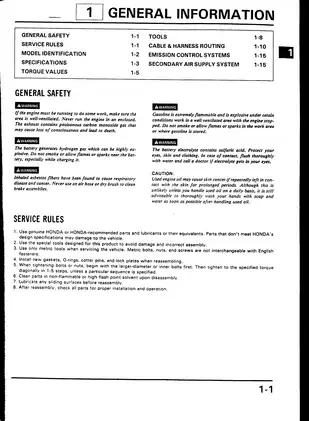

One printable 532-page PDF contains English, French, and German material, including four preliminary safety and usage pages. The total includes corresponding material in all three languages.
Engine, Chassis, and Electrical Service
This selection of covered work highlights the main service areas. Additional topics include handlebar-grip replacement and speedometer-bulb replacement.
-
Engine repair: Step-by-step instructions cover engine removal and installation, camshaft and cylinder-head work, cylinder/piston inspection, crankcase separation, and crankshaft/transmission service.
-
Clutch and starter drive: Wet multi-plate clutch inspection, gearshift-linkage service, primary-drive work, alternator removal, and starter-clutch disassembly and inspection.
-
Fuel system: Dual-carburetor removal, separation, disassembly, reassembly, synchronization, and pilot-screw adjustment, with fuel-tank and air-cleaner procedures.
-
Cooling system: Pressure testing, coolant replacement, thermostat inspection, radiator/fan removal, reserve-tank service, and water-pump inspection and replacement.
-
Chassis and brakes: Wheel-bearing replacement, fork and steering-stem service, rear shock and swingarm work, rear drum-brake repair, and front master-cylinder/caliper overhaul and bleeding.
-
Electrical diagnosis: Charging and ignition fault charts, starter-circuit troubleshooting, and checks for fuel-pump circuits, safety switches, lighting, instruments, and horn.
-
Factory reference data: Component torque tables, fluid capacities, service and wear limits, electrical test values, cable/harness routing, model-specific tools, and system diagrams.
Honda does not explain standard shop procedures or general safety principles, so this workshop-level manual is best suited to readers already comfortable with motorcycle repair and the specified pullers, holders, gauges, and electrical test equipment.
Regional Scope and Engine Serviceability
Coverage is tied to ED (Europe Direct Sales), F (France), G/G-I (Germany, full power), G-II (Germany, limited power), SD (Sweden), and SW (Switzerland). The Swiss SW version has its own carburetor settings and secondary-air supply system, while the German full- and limited-power versions use separate serial ranges.
Planning major work: The serviceability notes distinguish jobs that can be completed in the frame from those requiring engine removal. The front cylinder head and cylinder can be serviced in the frame, and the rear head cover can be removed for camshaft, rocker-arm, cam-chain, and tensioner work.
Rear cylinder-head/cylinder service, along with oil-pump and water-pump body service, requires engine removal. Internal repair coverage includes valve-guide replacement and seat refacing, connecting-rod and crankshaft work, and transmission assembly, with color-coded bearing-selection tables and Plastigage clearance checks.
Maintenance, Fuel, and Cooling Details
An odometer-based maintenance schedule covers valve-clearance inspection, cylinder-compression testing, drive-chain service, brake and suspension checks, and steering-head bearing inspection.
Carburetor instructions include diaphragm/vacuum-piston, float-valve, jet, and air-cutoff-valve inspection. The final pilot-screw setting uses an idle-drop procedure, and the Swiss secondary-air system has air-suction-valve vacuum tests.
Cooling coverage includes heated-water thermostat testing and radiator-cap inspection. Water-pump mechanical-seal leakage is checked at the telltale hole; a leaking mechanical seal calls for replacement of the pump assembly.
Electrical Fault Tracing and Reference Graphics
The sealed-battery charging section includes regulator/rectifier and alternator tests. Ignition diagnosis covers the spark unit, ignition coils, and pulse generators, with separate front- and rear-cylinder circuits represented in the no-spark chart.
Starter-motor disassembly and brush inspection accompany starter-relay, clutch-diode, and interlock checks. Fuel-pump diagnosis includes relay-circuit checks and a delivery-flow test.
Reference graphics include the full motorcycle wiring diagram with regional callouts and switch-continuity tables, the charging-system circuit and fault chart, the dual-circuit ignition schematic, the starter-interlock circuit, the lubrication-flow diagram, and the cooling-system layout.
Special Tools and Repair Cautions
Honda tool numbers identify the 07HMH-MR10100 drive-chain cutter and 07JME-MR10100 shock-absorber compressor attachment. The lists also specify the 07923-KE10000 clutch-center holder, 07947-4630100 fork-seal driver, and 07508-0013600 ignition inspection adapter.
The flywheel bolt uses a left-hand thread, so treating it like a conventional fastener risks damage to the bolt or crankshaft threads. Steam cleaning, pressure washing, or unsuitable solvents can damage the drive chain’s O-rings.
For engine-out, brake, cooling, or suspension repair, use secure lifting/support equipment and follow the manual’s cautions for pressurized coolant, brake fluid, and the nitrogen-charged rear shock.
Valve and Carburetor Setting Preview
For cold-engine valve checks below 35°C, the manual specifies 0.15 ± 0.02 mm intake clearance and 0.20 ± 0.02 mm exhaust clearance.
Carburetor specifications include a 7.0 mm float level, measured with the float tang just contacting the float valve. The synchronization procedure specifies a vacuum difference of no more than 40 mm Hg with the engine at normal operating temperature.
