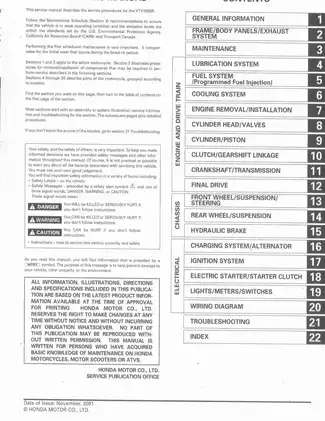

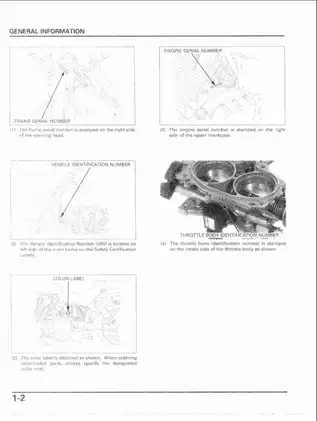

2002–2004 Honda VTX1800R / VTX1800 Service & Repair Manual (P/N 61MCV00)

• Identifies the Honda VTX1800R configuration documented in Honda’s November 2001 factory issue. This 470-page PDF contains the 22-section R-model base manual; no separate C, S, or N model supplements or later-year update sections are included.
• Covers the liquid-cooled V-twin from engine removal through cylinder-head and valve work, camshaft timing, cylinder and piston inspection, crankcase separation, crankshaft and connecting-rod service, transmission repair, and final assembly checks.
• Uses PGM-FI system diagrams, self-diagnostic malfunction-indicator codes, troubleshooting flowcharts, fuel-pump and injector tests, ECM and sensor checks, starter-valve procedures, air-screw synchronization, and relay or solenoid diagnosis.
• Follows the driveline and chassis through hydraulic-clutch bleeding and overhaul, primary-drive and gearshift-linkage repair, shaft final-drive backlash and contact-pattern checks, fork and steering-stem service, rear suspension, swingarm, and wheel work.
• Documents the linked hydraulic brakes, including fluid replacement and bleeding, master cylinders, calipers, pads and discs, and the PCV (Proportional Control Valve). Electrical chapters cover charging, ignition, starting, lighting, meters, and switches.

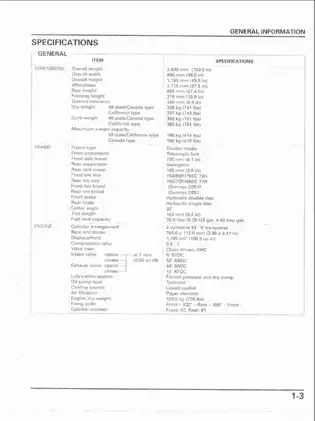

• Provides named routing and system diagrams, a complete wiring diagram, Honda special-tool references, section-specific torque tables, fluid capacities, wear limits, clearance data, and electrical test specifications.

Engine, Driveline, and Chassis Repair

The engine material covers the transverse V-twin, dry-sump lubrication system, cooling circuit, and the removal and installation work required before major internal repair. Top-end chapters include compression testing, valve-clearance inspection, camshaft removal and installation, cylinder-head disassembly and assembly, valve-guide replacement, and valve-seat inspection and refacing. The cylinder and piston section adds bore, piston, pin, and ring inspection with the related service limits and reassembly data.

Lower-end coverage goes well beyond external service. It documents crankcase separation, primary-shaft work, crankshaft and connecting-rod inspection, transmission gears and shift components, output-gear repair, crankcase assembly, and bearing replacement. The shaft-drive sections include final-drive removal, ring-and-pinion service, backlash measurement, shim selection, bearing preload, and tooth-contact pattern inspection.

Chassis repair is handled with the same level of detail. Procedures cover front-wheel and fork disassembly, steering-stem bearings, rear-wheel removal, shock absorbers, swingarm service, and the applicable inspection and torque data. The hydraulic clutch chapters cover fluid replacement and bleeding, master and slave cylinders, clutch disassembly, the primary drive, and gearshift linkage.

PGM-FI, Emissions, Brakes, and Electrical Diagnosis

Honda’s PGM-FI material is built around fault isolation rather than parts swapping. It connects the BARO/MAP, IAT, ECT, throttle-position, cam-pulse, and bank-angle sensors with the ECM, injectors, fuel cut-off and engine-stop relays, intake-duct control, and PAIR solenoid. Fuel-line inspection, pump pressure and flow testing, throttle-body and injector service, starter-valve checks, and air-screw synchronization are tied to the PGM-FI self-diagnosis procedures and factory troubleshooting charts.

The emissions information separates the 49-state/Canada layout from the California type. California coverage adds heated oxygen sensors, the EVAP canister and purge-control valve, and California-specific vacuum-hose routing. The manual also documents the closed crankcase and PAIR secondary-air systems.

Brake repair includes the linked front and rear hydraulic circuits, brake-hose and pipe routing, front and rear master cylinders, calipers, brake pedal, and the proportional control valve. Electrical chapters cover the charging system and alternator, regulator/rectifier, ignition diagnosis, starter motor and relay, starter clutch, lights, meters, indicators, switches, and vehicle-speed sensor.

Diagrams, Special Tools, and Factory Data

Particularly useful illustrations include the PGM-FI System Location, PGM-FI System Diagram, Cable & Harness Routing, California Vacuum Hose Routing Diagram, Gear Tooth Contact Pattern Check, and the complete Wiring Diagram. Factory tool callouts include fuel-pressure gauge 07406-004000A, vacuum-gauge set 07LMJ-001000A, and ECU test harness 07YMZ-0010100, with two harnesses required for the applicable tests.

The manual warns that ordinary carburetor cleaner can damage the throttle body’s molybdenum-coated bore, and disturbing its white-painted factory-set fasteners can upset synchronization. It also flags a serious lower-end repair trap: incorrectly located connecting-rod bearing inserts can block oil passages, leading to lubrication failure and engine seizure.

Engine removal involves a very heavy assembly. Fuel-line repair requires the manual’s pressure-relief precautions, while the linked brake system requires the specified bleeding procedures. These jobs call for secure support equipment and workshop-level mechanical experience.
