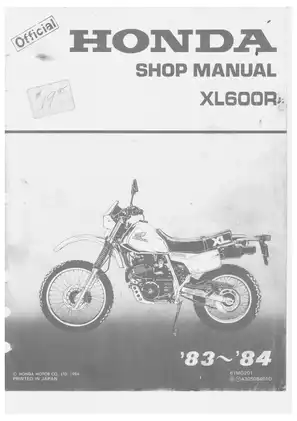

Honda XL600R Shop Manual, 1983–1984 (P/N 61MG201)

Honda’s January 1984 factory shop manual (P/N 61MG201) covers the 1983–1984 XL600R. It uses the 1983 model as its baseline and calls out 1984 changes in the text and notes.

PDF Navigation and Wiring Detail

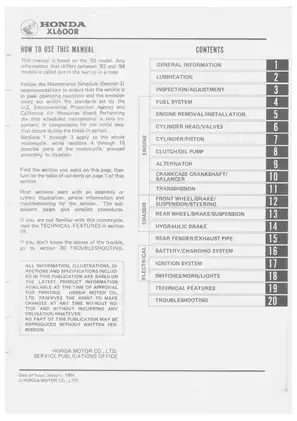

Finding chapters and reading diagrams: The printed table of contents guides you to the chapters. The PDF has no text search or embedded bookmarks. Small wire codes and connector labels require zooming, and a few labels are clipped where the main wiring diagram spans two pages.

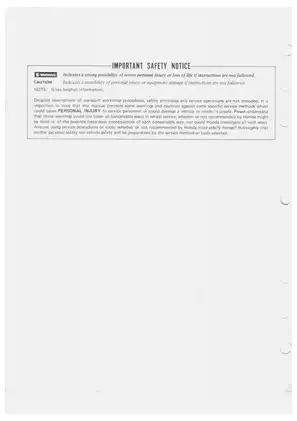

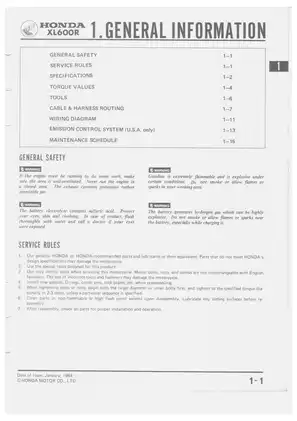

The ZIP download contains one printable PDF. The 254 pages include the cover, safety notice, table of contents, model identification page, and five memo pages.

RFVC Engine, Dual Carburetors, and Chassis Service

These selected workshop topics cover major service and repair jobs. The manual also covers spark arrester cleaning and air cleaner case removal.

• Scheduled maintenance: Factory intervals and procedures for engine oil and filter service, valve clearance, manual and kickstarter decompressor adjustment, and routine chassis checks.

• RFVC engine repair: Engine removal and installation, cylinder head and valve service, camshaft and cam-chain timing, and cylinder and piston inspection.

• Crankcase and drivetrain: Crankshaft and balancer service, transmission disassembly and assembly, and procedures for the clutch, oil pump, and kickstarter.

• Dual-carburetor service: Removal, separation, inspection, and reassembly, with float-level and secondary touch-lever adjustment and separate idle-drop procedures by model year.

• Wheels and suspension: Front and rear wheel service, fork overhaul, steering stem bearing replacement, and Pro-Link shock, linkage, and swingarm work.

• Brakes: Rear drum service and front hydraulic brake fluid replacement and bleeding, with pad and disc inspection and master cylinder and caliper overhaul.

• Electrical diagnosis: Charging-output tests, CDI and ignition checks, switch continuity tables, and a main wiring diagram with wire-color codes.

The manual suits technicians and experienced owners who know standard workshop procedures and can use the specified tools and test equipment.

RFVC Head, Crankcase, and Lubrication

Honda identifies which jobs require engine removal, including cylinder head, cylinder, crankshaft, balancer, and transmission service. The RFVC section covers the head cover, rocker and subrocker arms, cam-chain tensioner, valve guides and seats, and the subchamber valve. Excessive valve spring compression can weaken the springs, and poor support while seating the cotters can bend valve stems.

The crankcase and transmission sections show case separation and inspection of the gears, bushings, shafts, shift forks, and shift drum. The manual also covers flywheel and alternator removal. The dry-sump schematic shows how the trochoid oil pump feeds the valve train and transmission from the frame reservoir.

Carburetor IDs and California Emissions

The fuel tables identify PH60A for 1983, PH64A for 1984 49-state models, and PH66A for 1984 California models. The year-specific jetting tables and separate air-screw and pilot-screw procedures help you match jets and settings to the carburetor before adjustment or repair.

The low/midrange and high-range flow diagrams show how the primary and secondary carburetors work together, including the 1983-only reed valve in the cylinder head cross-port. The manual covers U.S. high-altitude adjustments and, for the California model, purge control valve vacuum and airflow tests and charcoal canister hose routing.

Fork Seals and Pro-Link Inspection

The fork drawings identify the foam seal and plastic washer used on the 1984 model. Burrs or an exposed groove at the top of the fork tube can cut the new oil seal lip during installation.

Rear suspension procedures cover spring preload, damper testing, linkage bushings, and swingarm bearings. Honda specifies replacing a faulty damper unit. The rear drum brake section covers shoe inspection and brake pedal service.

Fault Charts, Routing, and Workshop Tools

Electrical tests cover the battery, alternator, regulator/rectifier, ignition coil, CDI unit, and pulse generator. The switch tables cover the ignition, turn signals, horn, dimmer, engine stop, and brake lights. Fault-isolation charts address hard starting, loss of power, poor low- or high-speed performance, and handling problems.

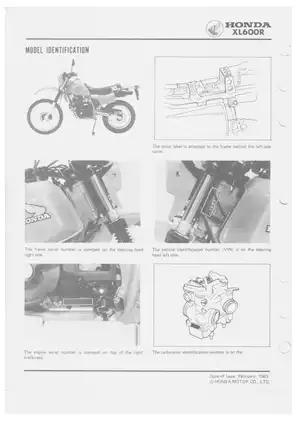

Reference drawings include the RFVC cutaway, cable and harness routing views, and exploded views of major engine, transmission, suspension, and brake assemblies. Service tables give torque values, clearances, capacities, and wear limits. Listed tools include the cam-chain tensioner holder 07973-MG30001, fork seal driver 07947-4630100, steering stem socket 07916-3710100, and clutch center holder 07724-0050000. The identification page shows where to find the VIN, frame and engine serial numbers, and carburetor ID.

Support the motorcycle securely, keep ignition sources away from fuel and battery work, and follow Honda’s brake fluid and bleeding precautions.

Sample Valve Clearances and Front Disc Limits

For the XL600R’s RFVC valve clearance check, Honda specifies 0.05 mm (0.002 in) on the intake and 0.10 mm (0.004 in) on the exhaust with the engine below 35°C (95°F) and at top dead center on the compression stroke.

The front hydraulic brake chapter gives a front disc thickness service limit of 3.0 mm (0.12 in) and a runout service limit of 0.30 mm (0.012 in).
