Honda XR200R Service Manual, 1986–2002

This Honda service manual covers the 1986–2002 XR200R and was issued by the Honda Motor Co., Ltd. Service Publication Office. It documents maintenance, fault diagnosis and major engine and chassis repairs, with configuration-specific service data.

PDF Search, Diagram Viewing and Page Count

Search and diagram detail: PDF text search is unavailable, and there are no embedded PDF bookmarks. The wiring diagrams are presented sideways; small wire-color codes are readable with zooming and page rotation.

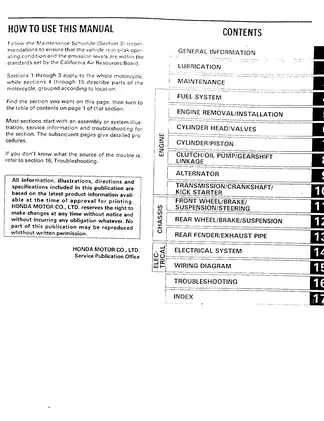

The ZIP download contains one printable PDF in English. Its 183 pages include the cover, contents page and two repeated service pages.

Engine, Carburetor and Chassis Repair

The following highlights are a selection of the manual’s contents, rather than a complete contents list. Other topics include competition inspections and rear-fender and exhaust-pipe removal and installation.

• Engine repair: Step-by-step procedures for engine removal and installation, camshaft and cam-chain service, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and cylinder and piston work.

• Clutch and lubrication: Clutch disassembly, inspection and assembly, centrifugal oil-filter rotor cleaning, and oil-pump removal, disassembly, assembly and installation.

• Transmission and kick starter: Crankcase separation, crankshaft inspection, transmission gear and shaft inspection, bearing replacement, and kick-starter disassembly and assembly.

• Carburetor service: PD97A and PD97B identification, removal, disassembly, cleaning and assembly, float-level adjustment, pilot-screw procedures, and temperature- and altitude-based jetting guidance.

• Brakes and suspension: Drum-brake inspection and assembly, wheel and hub service, front-fork overhaul, steering-stem bearings, rear-shock disassembly, swingarm inspection and Pro-Link linkage service.

• Electrical diagnosis: Ignition and lighting-system tests, flywheel and stator service, wiring diagrams, and troubleshooting charts for starting, power, idle, high-speed performance and handling faults.

It is suited to experienced DIY owners and motorcycle technicians who are comfortable with internal engine work, precision inspection and model-specific service tools.

Model-Year and Configuration Detail

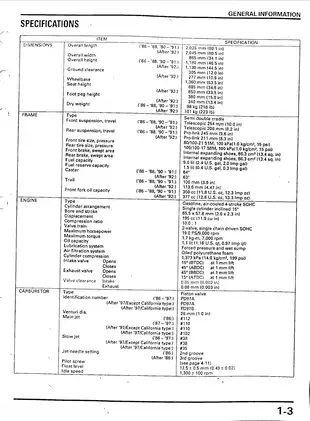

The specification tables distinguish the earlier 1986–88 and 1990–91 chassis from the later configuration labeled “After ’92.” Differences include dimensions, steering geometry, fork travel and oil data, rear-suspension travel and shock specifications.

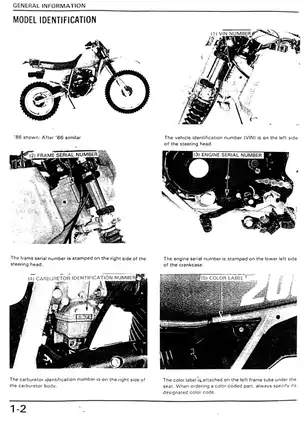

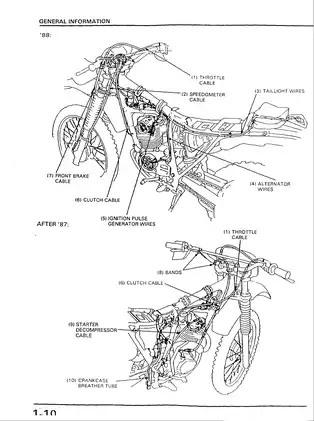

Other procedures distinguish 1986–87 shock hardware from later assemblies. Cable and harness-routing views show the different layouts, while identification illustrations locate the VIN, frame and engine serial numbers, carburetor number and color label.

Carburetor Variants and Emissions Equipment

The PD97A carburetor is distinguished from the PD97B used on post-1997 California-type machines. Factory tables separate their jetting and pilot-screw references, so the carburetor configuration can be matched to the appropriate service data.

California-specific material explains the lean exhaust-emission calibration, closed crankcase-emission system, breather separator and vehicle emission-control information label. The U.S. noise-emission section identifies the intake and exhaust components involved in noise control.

Internal Repairs, Tools and Coverage Limits

Engine chapters provide wear limits and inspection points for the camshaft, rocker arms, valves, guides, seats, cylinder and piston. Transmission material adds gear, shaft, bushing and shift-fork inspections. Chassis sections supply wheel and brake limits, fork-fluid data, rear-damper specifications, bearing inspections and fastener-specific torque tables.

Procedure limits: Gearshift-linkage coverage stops at removal; its reassembly procedure and right crankcase-cover installation are not included. Steering-stem removal and rear-damper and linkage-bearing service also contain gaps, so this PDF should not be treated as a complete reference for those jobs.

Workshop equipment: Tool tables identify carburetor float-level gauge 07401-0010000, flywheel puller 07733-0010000 with alternate 07933-3000000, and valve spring compressor 07757-0010000.

Suspension and clutch work calls for equipment such as fork seal driver 07947-2730100, damping-valve wrench 07920-KA30001 and clutch-center holder 07923-9580000. These references help assess whether the required equipment is available before committing to a repair.

Wiring, Troubleshooting and Repair Cautions

Electrical tests cover the ignition coil, alternator exciter coil, pulse generator, lighting coil and regulator circuits. Separate wiring diagrams distinguish the 1986–88 lighting-equipped layout from the later arrangement labeled “After ’89.”

Other illustrations include the lubrication-flow cutaway, closed crankcase-emission routing schematic, carburetor exploded assembly, camshaft timing marks and rear-shock damper assembly. Symptom charts connect starting and running problems with checks of fuel delivery, spark, compression and related systems.

The cylinder-head section warns that torch heating during valve-guide replacement can warp the head. Rear-shock instructions identify circlip-groove burrs as a cause of piston-ring damage.

The manual also addresses the pressurized nitrogen reservoir and fuel-system fire hazards. Review the relevant safety instructions before disassembly; fuel work must be kept away from flames and sparks.

A Preview of Valve and Clutch Inspection Data

For valve-clearance inspection, the manual specifies 0.05 mm intake and 0.08 mm exhaust, with the engine cold below 35°C (95°F). The maintenance section explains the associated inspection and adjustment.

Clutch inspection distinguishes standard dimensions from replacement limits. For example, the friction-disc thickness service limit is 2.6 mm (0.10 in), alongside separate spring-length and plate-warpage criteria.
