Yamaha BW80S Service Manual, 1986–1990 (P/N LIT-11616-05-23)
133 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Model & Model Code: BW80S (1RY)
Model Years: 1986–1990 (1986, 1987, 1988, 1989, 1990)
Serial Numbers: VIN starting at JYA1RY00 * GC000101; engine starting at 1RY-000101
-
Engine type: 2-stroke, air-cooled
-
Cylinder bore: 47.00–47.02 mm
-
Piston clearance: 0.045–0.050 mm
-
Idling speed: 1,650–1,750 r/min
-
Spark plug: NGK BP7HS
-
Spark plug gap: 0.6–0.7 mm
-
Transmission oil capacity: 0.75 L (total amount)
-
Tire pressure (front/rear): 29.4 kPa (cold)
-
Front fork oil capacity: 69 cm³ per fork
-
Transmission: 3-speed, constant mesh
Yamaha Manual Features & Selected Content Preview

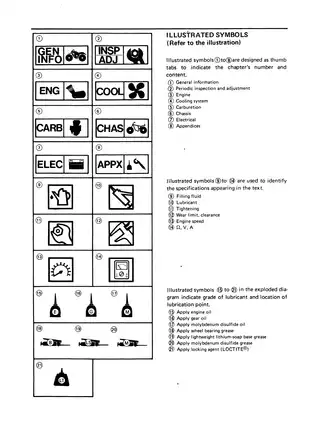

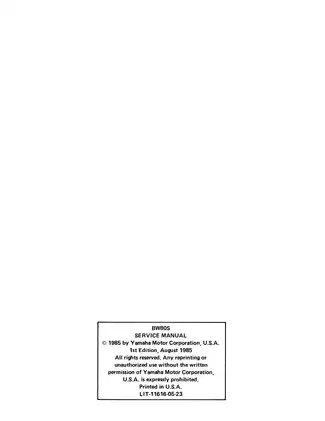

Yamaha’s first-edition BW80S Big Wheel service manual, dated August 1985, covers model code 1RY. It carries P/N LIT-11616-05-23 and the additional original cover identifier 1RY-28197-10.
PDF Search, Bookmarks, and Diagram Detail
Navigation and wiring detail: PDF text search is not available. Embedded bookmarks provide chapter and subsection navigation. Small labels in the ignition test diagrams are best read with zoom.
The ZIP download contains one printable English PDF with 133 pages, including five cover and preliminary pages and one memo page.
Engine Overhaul, Autolube Service, and CDI Diagnosis

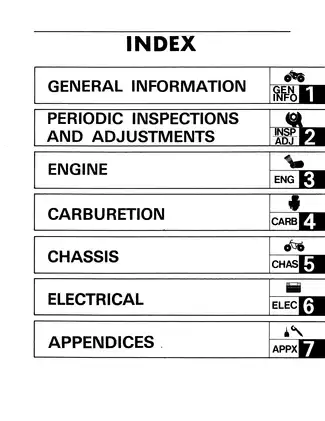

The following selected contents outline the main repair areas rather than reproduce the full contents list. Additional topics include fuel-cock cleaning and air-filter servicing.
-
Engine and drivetrain: Step-by-step procedures for engine removal, top-end service, crankcase separation, crankshaft repair, transmission inspection, centrifugal-clutch assembly, and kick-start mechanism service.
-
Autolube and carburetion: Pump-cable adjustment, bleeding, stroke and delivery checks, plus VM15 Mikuni carburetor cleaning, inspection, float setup, fuel-level measurement, and reed-valve checks.
-
Scheduled inspection: Factory maintenance and lubrication chart, idle and throttle adjustment, oil service, brake adjustment, chain slack, steering checks, tires, wheel bearings, and cable lubrication.
-
Chassis repair: Wheel and drum-brake service, front-fork teardown and seal replacement, steering-head bearing and race service, rear-shock inspection, swingarm bushings, chains, and sprockets.
-
CDI ignition diagnosis: Circuit diagram and troubleshooting chart, with ignition-timing checks, spark-gap testing, ignition-coil resistance tests, and source-coil measurements.
-
Workshop references: Exploded assembly views, cable-routing drawings, wiring diagram, special-tool listings, component torque tables, capacities, clearances, wear limits, and electrical test specifications.

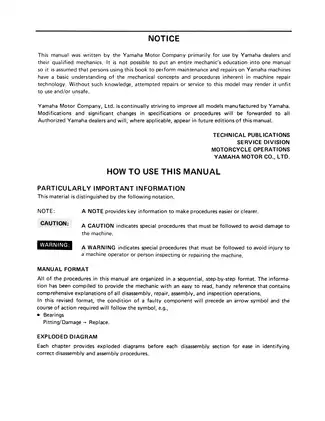

Yamaha wrote this manual primarily for its dealers and qualified mechanics, assuming a working knowledge of mechanical repair concepts and procedures.
BW80S Engine and Drivetrain Configuration
The documented machine uses an air-cooled 79 cc single-cylinder, reed-valve two-stroke with Yamaha Autolube and a VM15 Mikuni carburetor. Its drivetrain combines a wet centrifugal automatic clutch with a foot-shifted constant-mesh gearbox. Starting is by kick lever; ignition uses a CDI magneto.
Top-End and Lower-End Repair
The engine chapter distinguishes in-frame top-end work from lower-end overhaul. The cylinder head, cylinder, and piston can be serviced without removing the engine; crankshaft and transmission repair continues through engine removal and crankcase separation. This distinction helps establish the required teardown before planning a repair.
Inspection depth: Top-end coverage includes cylinder-head warpage, cylinder boring, oversize piston selection, and piston and ring wear. Lower-end checks address clutch plates and springs, kick-starter spring condition, shift forks and cam, gear dogs, shaft runout, crankshaft alignment, bearings, and oil seals.
Assembly details: Clutch-plate selection establishes the specified stack height, with separate placement instructions for brown and silver friction plates. Shift-fork orientation, oil-pump drive engagement, CDI magneto installation, piston and ring orientation, and operational checks before final crankcase tightening are also documented.
The manual cautions against hammering out the piston pin or forcing crankcases that hang during separation. Improper handling can damage the piston-pin area, drive-axle oil-seal lip, or crankcase mating surfaces.
Carburetor, Reed Valve, and Autolube Checks
Carburetor service includes passage and jet cleaning, needle-valve and seat inspection, float-height setup, running fuel-level measurement, and jet-needle adjustment. Reed-petal sealing, stopper height, petal bending, and intake-manifold warpage receive separate checks.
Autolube diagnosis extends beyond cable adjustment to pump-stroke measurement, output inspection, and delivery-line checks. Bleeding instructions address a dry oil tank or a disconnected system.
Wheels, Suspension, and Steering
Wheel procedures cover axle, rim, brake-lining, drum, camshaft, and bearing inspection. Fork service includes hydraulic seal removal, damper-rod work, seal driving, oil filling, and installation checks.
Steering-head coverage includes bearing and race replacement and ring-nut adjustment. Swingarm work addresses bushing inspection and lubrication, with drive-chain master-link orientation shown for reassembly.
Rear-shock scope: The Monocross nitrogen-charged shock is treated as a sealed assembly. Coverage includes handling, removal, external inspection, replacement, installation, and disposal precautions, rather than an internal shock rebuild.
Follow the manual’s secure-support, low-pressure tire, hydraulic fork-seal removal, and nitrogen-shock warnings before beginning repair work.
Ignition Fault Isolation and Workshop Tools
The electrical chapter focuses on the CDI ignition and engine-stop circuit rather than lighting, battery, charging, or electric-start systems. Its troubleshooting chart relates connection, spark-plug, source-coil, and ignition-coil checks to fault isolation before CDI-unit replacement.
Reference illustrations include the Ignition System Circuit Diagram, Ignition Troubleshooting chart, Wiring Diagram, Cable Routing drawings, and exploded clutch and transmission assemblies.
Engine tools: Rotor holding tool YU-01235, rotor puller YM-01189, crankcase separator YU-01135, and piston-pin puller YU-01304.
Fuel, chassis, and electrical tools: Fuel-level gauge YM-01312, damper-rod holder YM-01300-1 with T-handle YM-01326, fork-seal driver set YM-33963, and ignition tester YU-33260 are identified for the corresponding work.
Selected Carburetor and Ignition Test Values
For the VM15 carburetor, specified float height is 22.5–23.5 mm with the carburetor inverted, measured from the float-chamber mating surface with its gasket removed. The float arm rests on the needle valve without compressing it.
Electrical test data include ignition-coil primary resistance of 0.85–1.15 Ω and source-coil resistance of 360–440 Ω, both at 20°C (68°F). These values accompany the component tests and ignition troubleshooting chart.
