Yamaha MT-03 2006–2012 Service Manual (P/N 5YK-F8197-E0)

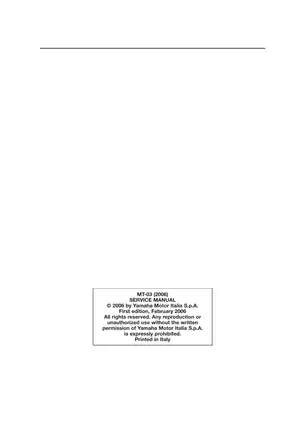

English-language factory service manual for the 2006 Yamaha MT-03, published by Yamaha Motor Italia S.p.A., first edition, February 2006 (P/N 5YK-F8197-E0). The general specifications identify 5YK1 (Europe) and 5YK3 (MT-03 25 kW).

Searchable Chapters, Bookmarks and Wiring Detail

Text search and diagram detail: Service-chapter text is searchable, with embedded bookmarks covering all nine chapters, numerous service sections and the final wiring diagram. Labels within the color-code legend and final color wiring diagram are not text-searchable. Small circuit labels require zooming; fine lettering in the color diagram is softer than in the chapter schematics.

ZIP download containing one printable, 400-page PDF, including the front and back covers, 12 blank separator pages, the color-code legend and the full-color MT-03 2006 wiring diagram.

Engine Overhaul, Chassis Service and FI Fault Diagnosis

The following selected service topics outline the repair coverage. Further examples include fuel-sender checks and indicator-light brightness adjustment.

• Engine repair: Cylinder-head and valve-seat service, cylinder and piston inspection, clutch repair, oil-pump checks, crankcase separation, crankshaft work and transmission disassembly.

• Brakes and chassis: Wheel-bearing inspection, static balancing, brake-disc checks, caliper and master-cylinder service, hydraulic bleeding, fork seal replacement, steering-head work, swingarm inspection and chain-drive repair.

• Fuel injection: Fuel-tank and fuel-pump work, pressure testing, injector and throttle-body checks, throttle-position-sensor adjustment, air-induction service and ECU fault diagnosis.

• Cooling system: Radiator inspection, thermostat testing, and water-pump disassembly, seal replacement, inspection and reassembly.

• Electrical and immobilizer systems: Circuit-based troubleshooting for ignition, starting, charging, lighting, signaling and radiator-fan control, plus immobilizer self-diagnosis and key-code registration.

• Factory reference data: General, engine, chassis and electrical specifications; component-specific torque tables, wear limits, capacities, lubrication points, cable-routing layouts and system schematics.

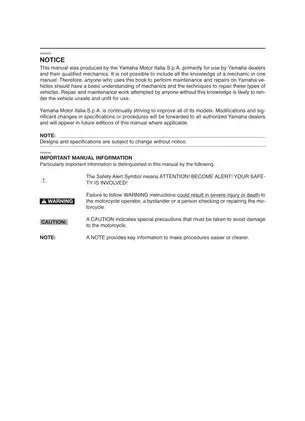

Yamaha wrote this manual primarily for its dealers and qualified mechanics; it assumes basic mechanical knowledge and familiarity with motorcycle repair techniques.

Maintenance and Internal Engine Repair

Periodic service: The maintenance chapter extends beyond interval charts to valve-clearance adjustment, idle and cable adjustments, spark-plug and ignition-timing checks, compression testing and dry-sump engine-oil service. Cooling-system checks, steering-head adjustment, drive-chain setup, battery service, fuse checks and lighting adjustment are also covered.

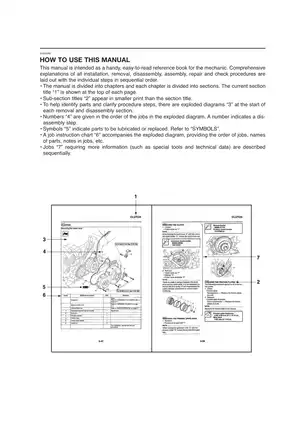

Engine removal and rebuilding: Exploded views and job charts support step-by-step removal, disassembly, inspection, reassembly and final adjustment procedures. Timing-chain, camshaft, rocker-arm and decompression-system work receives detailed treatment, alongside the balancer drive, starter clutch, A.C. magneto and shift mechanism.

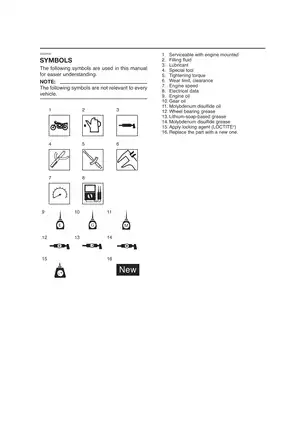

Inspection limits, replacement symbols, lubrication callouts, tightening sequences and special-tool references accompany the relevant work.

Wheel, Brake and Suspension Repair

Chassis coverage supports major repair as well as scheduled service. Wheel sections include hub and sprocket work, while brake procedures extend through pad replacement, seal replacement, hose installation, refill and operational checks.

Separate sections cover the handlebar and fork legs. Rear-shock coverage addresses removal, inspection and assembly replacement; Yamaha warns against opening the nitrogen-charged damper.

FI Diagnostics, Electrical Testing and Key Registration

Fault isolation: The FI chapter combines an ECU self-diagnostic table, fail-safe actions, a troubleshooting flowchart, diagnostic monitoring codes, actuator checks and fault-specific test information. These references connect reported faults to sensor, connector and wiring checks, helping distinguish a component problem from a harness fault before replacement.

Electrical checks: System circuit diagrams support continuity checks, relay testing, sensor resistance and output measurements, ignition-spark checks, charging diagnosis and starter-motor inspection. Vehicle-identification information, instrument functions, self-diagnosis indications and connector inspection are introduced in the general-information chapter.

Immobilizer requirements: The parts-replacement table distinguishes registration requirements after key, ECU, immobilizer-unit or main-switch replacement. Standard-key registration depends on the code re-registering key; the manual explains the replacement implications when that key is lost.

Symptom-based troubleshooting: A separate chapter addresses starting failure, incorrect idle, poor medium- and high-speed performance, shifting and clutch faults, and overheating. It also covers poor braking, fork problems, unstable handling, and lighting or signaling failures.

Service Tools and System Drawings

Diagnostic equipment includes the Yamaha fuel injection system tester 90890-03182, plus fuel-pressure gauge 90890-03153 and adapter 90890-03176.

Engine procedures identify flywheel puller 90890-01362, universal clutch holder 90890-04086, crankcase separating tool 90890-01135 and engine alignment tool 90890-11097. Dedicated fork and water-pump service tools are also specified.

Visual references include the FI component-location drawing and FI wiring diagram, cooling-system flow diagrams, the engine lubrication chart, oil-flow diagrams and multi-view cable-routing layouts. Separate circuit diagrams cover ignition, starting, charging, cooling and immobilizer systems.

Assembly Cautions and Workshop Safety

Fork-service cautions cover oil-seal and bushing damage from excessive separation force and oil-flow-stopper damage from bottoming the inner tube; brake warnings address piston seals that swell or distort when exposed to solvents.

Other assembly cautions address damage or incorrect valve timing from turning the crankshaft during camshaft installation, and prohibit oil or grease on the water-pump seal face.

Fuel-system testing involves pressurized gasoline, opened brake circuits require correct refill and complete bleeding, and the rear shock absorber contains high-pressure nitrogen. Support the motorcycle securely, use proper ventilation and eye protection, and follow the manual's component-specific warnings before beginning maintenance or repair work.

A Preview of Valve-Clearance and Sensor Test Data

For valve-clearance inspection on a cold engine at room temperature, the manual specifies 0.09–0.13 mm for the intake valves and 0.16–0.20 mm for the exhaust valves.

The crankshaft-position-sensor test specifies a resistance of 192–288 Ω at 20 °C (68 °F), illustrating the component-specific electrical test data supplied alongside the mechanical adjustment specifications.
