Yamaha RT100A Service Manual 1990–2000 (P/N LIT-11616-07-35)
170 Pages • ZIP Download: Printable PDF • 6.59 MB
Yamaha Models Covered & Key Technical Specifications
Model & Model Code: RT100A (3UL1)
Model Years: 1990–2000 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)
Serial Numbers: JYA3ULW0*LC000101 and above (Vehicle), 3UL-000101 and above (Engine)
-
Engine type: Air-cooled 2-stroke, forward inclined single cylinder
-
Displacement: 97 cc
-
Bore x Stroke: 52.0 x 45.6 mm
-
Compression ratio: 6.7:1
-
Transmission: Constant mesh 5-speed
-
Fuel system: Mikuni VM22SS carburetor
-
Ignition system: CDI Magneto
-
Spark plug: B7ES (USA) or BR7ES (CDN)
-
Drive system: Chain drive, 103 links plus connecting link
Yamaha Manual Features & Selected Content Preview

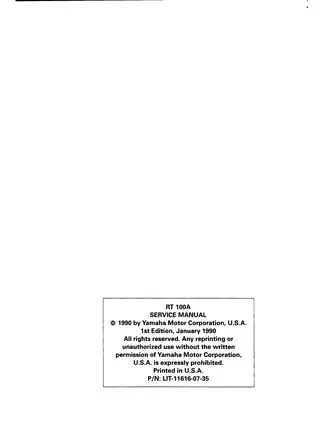

Yamaha’s factory RT100A Service Manual (P/N LIT-11616-07-35), first edition January 1990, covers the 3UL1 configuration. The vehicle and engine starting numbers help you match the bike to the manual before choosing a repair procedure or ordering internal parts.
PDF Bookmarks and Wiring Diagram Readability

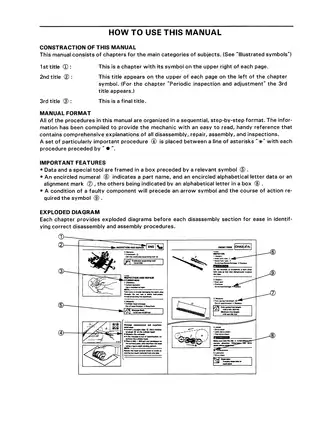

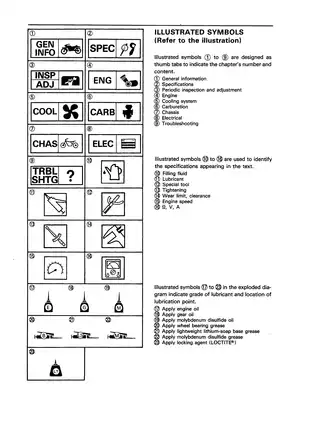

Navigation and page legibility: The PDF has chapter and section bookmarks. Text search is unavailable. Wire color codes and component labels are legible on the ignition schematic and wiring diagram. Portions of five pages are obscured, affecting some text or illustrations for fuel-line inspection, carburetor and reed valve service, and front fork and steering-head work.
The ZIP download contains one printable, 170-page PDF. The total includes both covers and four otherwise blank chapter-end pages.
Engine Overhaul, Chassis Repair, and CDI Testing
The selected procedures below are part of a manual that also covers tire inspection and sidestand lubrication.
-
Engine overhaul: Step-by-step procedures cover engine removal and remounting, top-end inspection, crankcase separation, and repair of the wet multi-disc clutch, kick starter, and five-speed transmission.
-
Carburetion and oiling: Covers Mikuni carburetor teardown and setup, reed valve inspection and replacement, and Yamaha Autolube pump adjustment, output testing, and air bleeding.
-
Periodic service: Covers idle and throttle settings, transmission oil changes, clutch free play, air filter cleaning, brake adjustment, spoke checks, and drive chain slack.
-
Chassis repair: Covers wheel and drum brake service, front fork disassembly and seal replacement, steering-head bearings, rear shock and swingarm inspection, and chain and sprocket service.
-
Ignition diagnosis: Includes an ignition circuit schematic, the RT100A wiring diagram, ignition timing checks, and a test sequence for no spark or intermittent spark.
-
Fault finding: Troubleshooting charts organize likely causes of hard starting, poor running, hard shifting, gear jump-out, clutch slip or drag, kick-start faults, weak braking, fork oil leakage, unstable handling, and overheating.

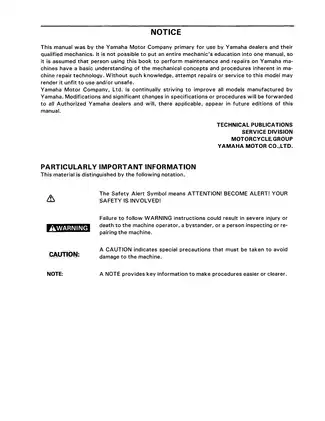

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It assumes a working knowledge of motorcycle repair.
In-Frame Service and Crankcase Work
The cylinder head, cylinder, piston and rings, clutch and primary drive, kick axle, shift shaft, CDI magneto, and Autolube pump can be accessed with the engine in the frame. Crankshaft, transmission, and internal shifter work requires engine removal and crankcase separation. The inspection procedures cover piston pin and bearing wear, clutch plates and springs, primary gears, shift forks, transmission shafts, and crankshaft runout.
Forcing the crankcase halves apart or striking the gasket mating surface can damage the sealing faces. During top-end assembly, a ring end that sits clear of its locating pin can catch as the cylinder goes on.
Fuel Level and Autolube Checks
For the Mikuni VM22SS carburetor, I.D. 3UL00, Yamaha documents float height and fuel level as separate checks. The reed valve section covers stopper height and reed bending. Autolube inspection also covers the oil delivery line, seals, and check ball and spring.
Wheel, Brake, and Suspension Work
Wheel service includes bearing inspection, drum and lining wear checks, and front wheel static balancing. The rear suspension procedures cover spring preload adjustment, shock leak and damage checks, and swingarm and pivot shaft inspection. Securely support the motorcycle for wheel, brake, or fork work and follow the manual’s warnings and inspection criteria.
Ignition Fault Isolation
Electrical coverage is limited to the CDI magneto ignition and engine-stop circuit. The diagnostic sequence uses a dynamic spark test, resistance checks for the plug cap and coils, an engine-stop switch continuity check, and a wiring check to narrow down the fault before replacing the CDI unit.
Assembly Views, Special Tools, and Shop Data
The manual has 15 full-page exploded views, including the crankshaft, transmission, clutch and primary drive gear, carburetor, and front fork. Cable-routing drawings trace the control cables, CDI lead, engine breather, and oil hoses. Factory tables list lubrication points and intervals, tightening torques, capacities, clearances, and wear limits.
The tool list identifies the YM-01189 flywheel puller, YU-01135 crankcase separating tool, and YU-90050 crankshaft installer with YM-90063 adapter. It also gives Yamaha tool numbers for the YM-33963 fork seal driver weight and YM-33281 adapter, the YM-34487 dynamic spark tester, the timing light, the fuel level gauge, the tachometer, and the pocket tester.
Sample Piston Clearance and CDI Coil Test Values
For top-end inspection, Yamaha specifies a piston-to-cylinder clearance of 0.050–0.055 mm and a service limit of 0.1 mm. The manual uses that comparison to assess whether the cylinder needs reboring or replacement.
For CDI magneto diagnosis, the source coil is specified at 270–330 Ω between brown and black. The pickup coil is specified at 9–11 Ω between white/red and black. Both ranges are at 20°C (68°F).
