1990–1998 Yamaha RT180 (A-G) Service & Repair Manual (P/N LIT-11616-07-30)

• Yamaha factory publication: First Edition, January 1990, P/N LIT-11616-07-30, supplied as a 221-page PDF.
• Engine and drivetrain repair: Covers engine removal and remounting, top-end service, crankcase separation, crankshaft inspection and installation, transmission and shifter work, clutch and primary-drive repair, kick-start components, and magneto service.
• Fuel, induction, and lubrication work: Details Mikuni VM24SS carburetor removal, disassembly, inspection, assembly, fuel-level adjustment, reed-valve and Y.E.I.S. service, plus Yamaha Autolube pump stroke checking, output inspection, cable setup, and air bleeding.
• Chassis overhaul procedures: Includes wheel service, front-disc and rear-drum brake repair, master-cylinder and caliper overhaul, brake bleeding, fork teardown and seal replacement, steering-head service, swingarm shimming, and chain and sprocket work.
• Electrical fault isolation: Provides the RT180A circuit diagram, oil-level signal-system schematic, CDI ignition circuit, component-location views, coil and switch tests, and guided diagnosis for no-spark, intermittent-spark, and oil-warning-light faults.
• Factory reference data: Supplies consolidated engine and chassis torque tables, fastener callouts in assembly drawings, lubricant and capacity data, cable-routing views, carburetor settings, component clearances, wear limits, and electrical test specifications.

Model Identification and Configuration

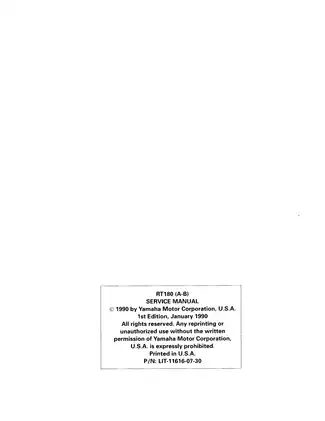

The file cover is labeled RT180 (A-G) and marked "228pgs," while Yamaha's copyright/title page reads RT180 (A-B). The model-specific identification, specification, and circuit-diagram pages are for the RT180A, model code 3VC1, beginning with engine serial 3VC-000101. This PDF does not include separate B-through-G supplements or year-by-year change pages, so a later RT180 should be matched by model code and installed equipment before the manual is used as its repair reference.

The documented configuration is the 176cc air-cooled, reed-valve two-stroke single with Yamaha Autolube, a Mikuni VM24SS carburetor carrying identification mark 3VC00, kick starting, a wet multi-disc clutch, six-speed transmission, and CDI flywheel-magneto ignition. Chassis data covers spoke wheels, a hydraulic single-disc front brake, rear drum brake, telescopic fork, and Monocross gas/oil shock.

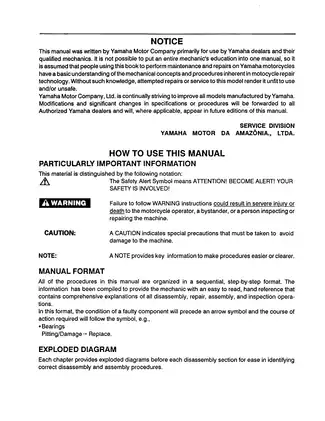

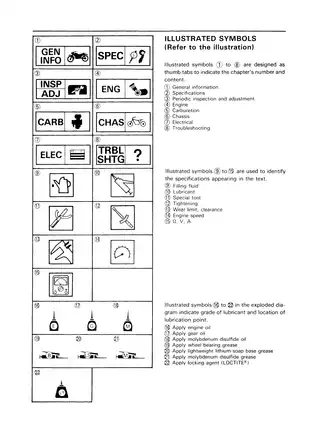

Yamaha states that the manual was written primarily for its dealers and qualified mechanics and assumes a basic understanding of motorcycle repair technology. It is best suited to trained technicians and experienced owners familiar with standard workshop practice and the required measuring, puller, and electrical test equipment; it is not a beginner-level mechanical course.

Workshop Procedures and Inspection Depth

The engine chapter separates in-frame service from work that requires complete engine removal. The top end, clutch, primary drive, kick axle, shift shaft, magneto rotor, stator, and Autolube pump can be reached with the engine installed. Full overhaul coverage continues through crankcase splitting, crankshaft removal and installation, transmission and shift-fork inspection, bearing and seal checks, clutch-pack measurement, cylinder evaluation and reboring guidance, and final assembly checks.

Carburetion coverage goes beyond jet specifications. It addresses the float system, needle valve, starter plunger, throttle valve, jets, and passages, followed by float-height and running fuel-level adjustment. The Autolube sections document minimum-stroke setup, delivery-system bleeding, pump-output checking, and drive-gear inspection. Periodic service also covers idle and cable adjustment, transmission oil, clutch setup, air-filter care, brakes, chain, steering-head preload, wheels, spokes, and suspension.

The chassis chapter supports repair work on the caliper and master cylinder, fork internals, steering bearings and races, wheels and hubs, rear brake, swingarm, and final drive. Electrical diagnosis gives factory test points and criteria for the ignition, source, pickup, lighting, and charging coils; engine-stop and neutral switches; resistor; oil-level gauge; and wiring. Troubleshooting charts trace hard starting, poor running, shifting and clutch faults, kick-start trouble, unstable handling, overheating, brake faults, and fork leakage or malfunction.

Diagrams, Tools, and Repair Cautions

Representative illustrations include the RT180A circuit diagram, oil-level signal-system schematic, CDI ignition circuit, crankshaft/piston exploded view, tra
