2005–2006 Yamaha XC50V Vino Classic Scooter Service & Repair Manual (P/N LIT-11616-19-49)

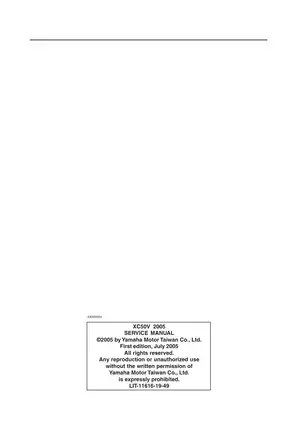

Yamaha's service manual for the 2005–2006 XC50V Vino Classic covers USA and Canadian versions identified by model codes 3D11 and 3D12. This is the first edition, July 2005, carrying publication numbers LIT-11616-19-49 and 3D1-F8197-10.

• Engine repair: Engine removal, cylinder-head service, valve and valve-guide work, piston inspection, crankcase separation, and crankshaft checks.

• Belt drive and transmission: V-belt replacement, primary and secondary sheave disassembly, centrifugal-clutch inspection, final-drive gear checks, and starter-clutch service.

• Carburetor and emissions: Keihin NCV18 overhaul, fuel-level adjustment, auto choke testing, fuel-cock checks, and air induction system inspection.

• Cooling and lubrication: Radiator-cap pressure testing, thermostat checks, water-pump overhaul, and oil-pump clearance inspection.

• Chassis: Telescopic front-fork rebuilding, steering-head bearing service, drum-brake inspection, wheel-bearing replacement, and rear shock absorber removal and inspection.

• Electrical diagnosis: Wiring diagrams and fault-isolation charts for C.D.I. ignition, starting, charging, lighting, signaling, cooling, and auto choke circuits.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of mechanical service and repair techniques.

Engine and Belt-Drive Repair

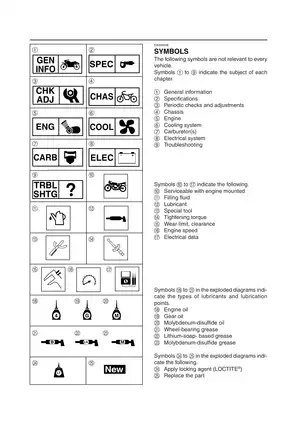

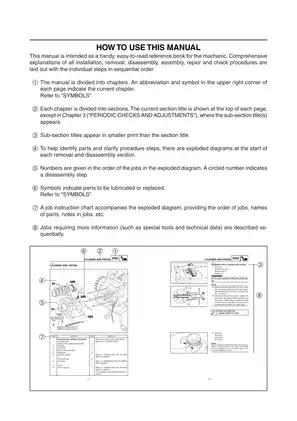

Engine procedures cover camshaft and rocker-arm checks, valve-guide replacement, valve-seat lapping, and piston-ring measurement. Exploded views pair numbered components with removal tables and lubrication symbols.

Valve-pad selection tables support clearance adjustment, and cylinder-head illustrations show the tightening sequence and staged tightening requirements. Specification tables cover general, engine, chassis, and electrical data alongside wear limits and component tightening torques.

Belt-drive procedures cover clutch shoes, primary sheave weights, sliders, and secondary sheave seals. The tool references identify clutch spring holder 90890-01337 (YM-33285 / YM-33285-6).

Starter-clutch service identifies its left-hand-thread retaining nut; AC magneto removal includes crankshaft-end protection. Camshaft installation cautions explain the risk of engine damage and incorrect valve timing if the crankshaft is turned during installation.

Fuel Delivery and Cooling Systems

The carburetor procedures cover the vacuum piston, accelerator pump, coasting enricher, and float assembly. Fuel-level adjustment and fuel-cock tests support checks for poor running and fuel-delivery faults.

Throttle position sensor: Voltage checks are included, but the factory-set sensor is not adjustable. An out-of-specification result calls for replacement of the carburetor assembly.

Thermostat assembly and radiator-cap tests accompany water-pump inspection and reassembly procedures. Cooling-system diagrams show hose connections. Follow the manual's precautions for hot, pressurized coolant when servicing this system.

Forks, Brakes, and Steering

Front-fork procedures cover springs, guides, and dust seals. Rear shock absorber service covers removal and condition checks, with assembly replacement specified for leakage or damage to the rod or spring.

Brake sections give shoe and drum wear limits and illustrate camshaft and wear-indicator alignment. Steering-head notes explain how incorrect bearing-race installation can damage the head pipe.

Electrical Diagnosis and Routing

The electrical chapter pairs system-specific circuit diagrams with fault-isolation charts, connector test points, and coil-resistance checks. Starting-circuit coverage explains the brake-switch interlock, helping distinguish an interlock fault from a starter-motor problem. Starter-motor procedures include brush and commutator inspection.

Cable-routing drawings show harness paths around the frame and steering head, helping prevent trapped wiring during reassembly. Oil-flow diagrams map lubrication routes, and periodic maintenance charts separate emission-control checks from general maintenance.

Valve Clearance and Coolant Specification Preview

These examples show a small part of the adjustment and fluid-capacity data in the manual.

For valve-clearance checks with the engine cold at room temperature, the intake specification is 0.10–0.16 mm and the exhaust specification is 0.18–0.24 mm.

The coolant-change section lists a total capacity of 0.52 L and a coolant reservoir capacity of 0.26 L.

PDF Navigation and Page Breakdown

Text search and diagram detail: The PDF has searchable text and bookmarks for chapters and subsections. Small wire-color codes and component labels in the wiring diagrams require zooming for comfortable reading.

The English manual is supplied as one printable, 298-page PDF. The total includes 291 pages across nine chapters, six opening pages covering the front cover and introductory material, and one Yamaha back-cover page.
