Yamaha YZ125B 1991 Owner's Service Manual (P/N LIT-11626-07-55)
261 Pages • ZIP Download: Printable PDF • 35.99 MB
Yamaha Models Covered & Key Technical Specifications
Model: YZ125B
Sub-models / Variants: YZ125(B)/LC (3XJ1 for EUR, 3XJ2 for USA / AFR / CSA / CDN / ZA, 3XJ4 for AUS / NZ)
Model Year: 1991
Starting VINs: JYA3XJW0*MA008101 (USA, CDN), JYA3XJT0*MA020101 (AUS)
Frame Starting Numbers: 3XJ-000101 (EUR), 3XJ-008101 (AFR, CSA, ZA), 3XJ-020101 (NZ)
Engine Starting Numbers: 3XJ-000101 (EUR), 3XJ-008101 (USA, AFR, CSA, CDN, ZA), 3XJ-020101 (AUS, NZ)
-
Engine: Liquid-cooled 2-stroke, single cylinder, 124 cm³ displacement
-
Transmission: Constant mesh, 6-speed
-
Fuel Tank Capacity: 8.0 L (1.76 Imp gal, 2.11 US gal)
-
Tire Pressure: 100 kPa (1.0 kg/cm², 14 psi)
-
Front Fork Oil Capacity: 564 cm³ per leg (except Europe), 559 cm³ per leg (Europe)
-
Spark Plug: NGK B9EG (except CDN and ZA), NGK BR9EG (CDN and ZA)
Yamaha Manual Features & Selected Content Preview

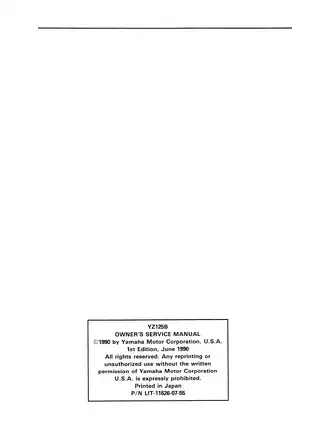

Yamaha's Owner's Service Manual for the 1991 YZ125B (YZ125(B)/LC), P/N LIT-11626-07-55, is the first edition from June 1990. It covers the regional 3XJ configurations of this closed-course motocross model. The cover also carries 3XJ-28199-10.
PDF Bookmarks and Wiring Diagram Detail
Navigation and diagram detail: Embedded bookmarks link to all seven chapters and selected sections. PDF text search is unavailable. The small wire codes on the ignition diagram are clear when zoomed in.
The ZIP download contains one 261-page printable PDF, including the original cover, front matter, and nine otherwise blank pages with running headers or page numbers.
Engine Repair, Chassis Service, and Race Setup
These are selected service topics. The manual also covers silencer repacking and ignition timing checks.
- Routine maintenance: Pre-ride checks, break-in, maintenance and lubrication intervals, air filter cleaning, premix, transmission oil changes, and drive chain adjustment.
- Engine repair: Step-by-step procedures for engine removal and installation, cylinder head, cylinder, and piston inspection, power valve and YPVS governor service, clutch repair, and crankcase separation.
- Transmission and kick-start service: Disassembly, inspection, and reassembly procedures for the kick axle, shift shaft, primary drive gear, and transmission, including the shift cam and forks.
- Fuel and cooling systems: TM35SS carburetor and reed valve disassembly, float and metering component inspection, radiator and hose service, cooling system pressure checks, and water pump service.
- Chassis service: Front and rear hydraulic disc brake overhaul and bleeding, wheel bearing replacement, inverted fork disassembly and seal replacement, steering bearing adjustment, and swingarm and relay arm inspection.
- Ignition diagnosis: Electrical component layout, wiring diagram with wire color codes, no-spark flowchart, spark gap testing, engine stop switch checks, and ignition coil and CDI magneto tests.
- Race setup: Carburetor tuning, secondary gearing selection, fork and shock setup, and suspension troubleshooting for track conditions.
Yamaha explains operation and basic maintenance for owners and provides mechanics with inspection and repair procedures. Jobs such as crankshaft installation call for dedicated tools.
Regional Settings and Tuning Parts
The regional specifications help you choose the right jetting baseline, suspension setup, fuel, and spark plug for your 3XJ configuration. Yamaha lists separate European carburetor and fork settings. The carburetor working-range chart shows which metering components affect each throttle opening. The tuning chapter explains rich and lean symptoms and how to read the spark plug.
For suspension setup, Yamaha explains how oil level and spring choice affect the fork and how rebound, compression, and rear spring preload affect front-to-rear balance. The tuning chapter also covers handlebar position and includes a setting record table. Standard and optional setting-parts tables list Yamaha numbers for jets, throttle valves, jet needles, sprockets, fork and shock springs, handle crowns, and lower holders.
Engine Inspection and Special Tools
The top-end section shows how Yamaha matches pistons to cylinder marks. Exploded crankcase and transmission views accompany assembly notes, inspection limits, and torque callouts. The engine chapter also covers exhaust pipe and silencer removal and CDI magneto removal and installation.
Yamaha warns that forcing the crankcase halves apart can damage the cases and cautions against striking the gasket surfaces or hammering out the crankshaft. Its tool list gives U.S./Canadian and international numbers for the crankcase separator (YU-01135 / 90890-01135), fork seal driver (YM-38853 / 90890-01442), Yamaha Pocket Tester (YU-03112 / 90890-03112), and Ignition Checker (YM-34487 / 90890-06754).
Brake and Suspension Service Details
Exploded brake views accompany separate front and rear master cylinder and caliper procedures. The fork section details the damper rod, check valve, inner and outer tubes, slide metal, oil and dust seals, and matching oil levels in both legs. Bottoming the inner tube during disassembly can damage the oil lock piece. The swingarm section covers shim selection for side clearance.
Yamaha covers rear shock removal, external inspection, spring replacement, reinstallation, preload, and damping. The high-pressure nitrogen cylinder and reservoir are to remain assembled, and Yamaha assigns shock disposal to its dealers.
Ignition Troubleshooting and Service Data
The no-spark chart helps isolate faults in connections, the stop switch, the ignition coil, and the magneto before the CDI unit is considered. Cable-routing drawings complement component torque tables, fit and wear limits, fluid capacities, and electrical test specifications.
Sample Piston Ring and Ignition Coil Specifications
The piston inspection procedure specifies an installed ring end gap of 0.50–0.65 mm, with a 0.8 mm wear limit.
The ignition coil tests specify 0.26–0.36 Ω on the primary winding and 3.5–4.7 kΩ on the secondary winding, both at 20°C (68°F).
