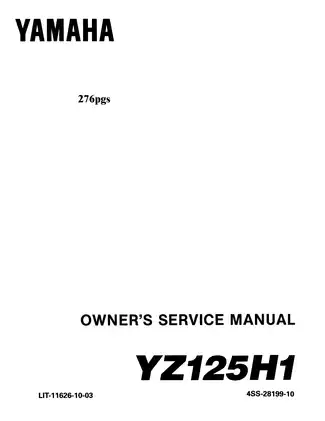

1996 Yamaha YZ125H1 Factory Service & Repair Manual (P/N LIT-11626-10–03)

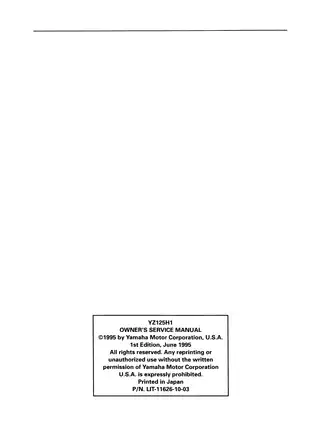

• This PDF contains the Yamaha Motor Corporation, U.S.A. YZ125H1 Owner’s Service Manual, P/N LIT-11626-10-03, 1st Edition, June 1995; the cover also carries model/manual code 4SS-28199-10.
• Factory model coverage is split by market: YZ125LC / 4SS1 (Europe), YZ125H1 / 4SS2 (USA), YZ125(H) / 4SS2 (Canada and ZA), and YZ125(H) / 4SS4 (Australia and New Zealand).
• Contains detailed exploded-view mechanical illustrations, the factory Cable Routing Diagram, Electrical Components and Wiring Diagram, torque tables, race-maintenance schedules, and model-specific setting-part data.
• Repair coverage runs from top-end and crankcase work through the six-speed transmission, hydraulic brakes, suspension, steering, CDI ignition diagnosis, and competition tuning.

Content Overview

The identification section is useful before ordering parts or starting a repair. Factory VIN starts are listed as JYA4SSS0TA000101 (E), JYA4SSW0TA005101 (USA/CDN), and *JYA4SST0TA015101 (AUS/NZ)**. Frame numbers start at 4SS-000101 for F/D/GB/I and 4SS-005101 for ZA; engine numbers start at 4SS-000101, 4SS-005101, or 4SS-015101 depending on market.

Core specifications identify a 124 cm³ liquid-cooled, single-cylinder two-stroke with a Mikuni TMX36SS carburetor, wet multi-disc clutch, constant-mesh 6-speed transmission, chain final drive, and CDI magneto ignition. The lubrication specification is 30:1 premix. Transmission oil capacity is 0.65 L for a periodic change and 0.70 L total, while cooling-system capacity is 1.0 L.

Maintenance is organized for motocross use rather than ordinary street mileage. The schedule separates work after break-in, every race, every third race, every fifth race, and as required. It covers piston and ring inspection, cylinder and YPVS cleaning, clutch and transmission checks, drive-chain service, cooling-system inspection, brakes, fork and shock settings, swingarm/linkage lubrication, steering-head service, spokes, wheels, and control cables.

Factory Repair, Chassis, and Diagnostic Scope

The engine chapter documents radiator and water-pump repair, carburetor and reed-valve service, cylinder-head/cylinder/piston and power-valve work, clutch and primary driven gear overhaul, kick/shift mechanisms, the YPVS governor, CDI magneto service, engine removal and installation, crankcase separation, crankshaft removal/installation, and transmission/shift-cam/shift-fork inspection and assembly. Chassis repair goes into wheel bearings, front and rear calipers, caliper pistons and seal kits, master cylinders and brake hoses, front-fork oil seals and damper components, steering bearings, swingarm and relay-arm components, and rear-shock spring service.

Electrical troubleshooting goes beyond the wiring diagram. The ignition chapter uses a fault-finding sequence for spark, connections, the engine-stop button, ignition coil, CDI magneto, and CDI unit. Reference values include a 6.0 mm minimum spark gap, 0.14–0.20 Ω primary-coil resistance, 6.7–10.1 kΩ secondary-coil resistance, and 248–372 Ω pickup-coil resistance at 20°C (68°F).

Special-tool pages identify the crankcase separating tool YU-01135 / 90890-01135, flywheel puller YM-01189 / 90890-01189, fork seal driver YM-01442 / 90890-01442, steering ring-nut wrench YM-33975 / 90890-01403, and Yamaha pocket tester YU-03112 / 90890-03112. Named reference views span the Cable Routing Diagram, Electrical Components and Wiring Diagram, Cylinder Head/Cylinder/Piston assemblies, Crankcase and Crankshaft, Front Fork, and Rear Shock Absorber.

Technical Data Preview

• Engine limits and torques: cylinder-head nuts are 28 Nm (20 ft-lb), piston-to-cylinder clearance is 0.040–0.045 mm, and crankshaft runout limit is under 0.05 mm.
• Driveline and fluids: the drive-sprocket nut is 60 Nm (43 ft-lb); both front and rear brakes specify DOT #4 fluid.
• Suspension and steering: standard fork oil quantity is 612 cm³ with a 100 mm oil level and an 80–130 mm tuning range. The rear shock is charged to 1,000 kPa (142 psi), and the steering ring nut uses 38 Nm (27 ft-lb) initial tightening followed by a 7 Nm (5.1 ft-lb) final setting.
• Competition setting parts: the tables cover main jets #330–370, pilot jets #40–65, alternate needle/nozzle and throttle-valve choices, 12T–14T drive sprockets, 47T–52T driven sprockets, and optional fork and rear-shock spring rates with Yamaha part numbers.

The manual also flags mistakes that can damage parts. Piston-pin circlips are one-use items, and their orientation is specified so thrust does not work the clip loose. The crankcase section warns against hammering the crankshaft or striking gasket mating surfaces, which can damage rotating parts or sealing faces. Brake servicing specifies DOT #4 because incorrect or mixed fluid can deteriorate rubber seals and cause leakage.

Rear-shock coverage has a clear boundary: removal, spring work, inspection, installation, and external adjustment are covered, but the high-pressure nitrogen cylinder/tank is not an internal overhaul procedure. Yamaha warns against disassembling that unit or exposing it to high heat.

This description is a contents preview, not a replacement for the manual’s complete repair sequences, cautions, and model-specific order of operations. Engine, brake, suspension, and pressurized-shock work should be carried out using the full factory procedure and specified tools.
