Yamaha YZ125J1 Owner's Service Manual, 1997 (P/N LIT-11626-10-52)

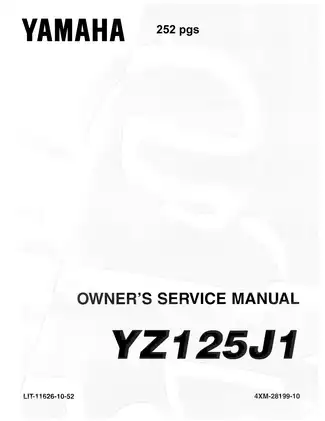

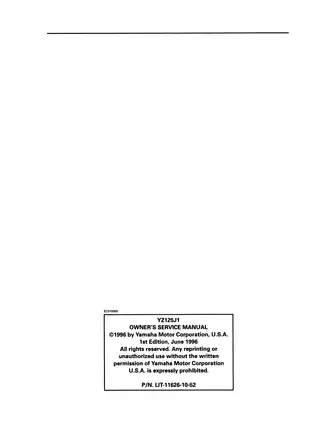

Yamaha’s Owner’s Service Manual for the 1997 YZ125J1 also covers the regional YZ125LC and YZ125(J) versions identified above. This is the 1st Edition, June 1996, P/N LIT-11626-10-52, with the additional manual identifier 4XM-28199-10 on the cover.

PDF Reading, Navigation and Page Count

Search and diagram detail: PDF text search is not available. Embedded bookmarks are unlabeled page entries rather than named chapter links. Small wiring-diagram and connector labels are readable when enlarged.

The ZIP download contains one printable, 250-page PDF, including the cover, introductory material and eight memo pages.

Engine Overhaul, Chassis Service and Race Setup

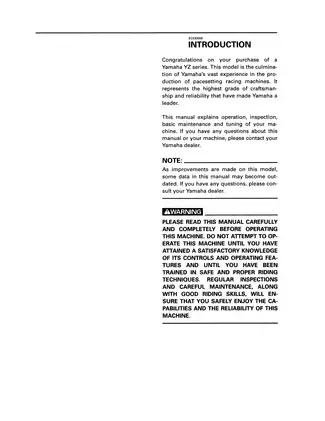

The following is a selection of the manual’s contents. Other topics include cleaning and storage, control functions, and pre-operation inspection.

• Top-end and induction: Step-by-step procedures cover TMX36SS carburetor and reed-valve service, cylinder-head and piston work, piston-ring inspection, and YPVS power-valve repair.

• Bottom-end and drivetrain: Clutch and primary-drive repair, kick and shift mechanisms, YPVS governor service, engine removal, crankcase separation, crankshaft installation, and transmission inspection.

• Cooling system: Radiator removal and installation, cap and system pressure checks, coolant replacement, and water-pump impeller-shaft and oil-seal service.

• Brakes and chassis: Wheel-bearing replacement, brake-caliper and master-cylinder rebuilding, hydraulic bleeding, front-fork rebuilding, steering-head service, and swingarm and linkage repair.

• Electrical diagnosis: CDI ignition and engine-stop circuit checks, wiring diagrams, spark-gap testing, ignition-coil measurements, and CDI magneto pickup- and source-coil tests.

• Race setup: Carburetor correction and symptom charts, optional jetting parts, spark-plug heat-range guidance, secondary-ratio selection, spring choices, rider-weight charts, and suspension troubleshooting.

The repair coverage is suited to qualified mechanics with the specified tools. Yamaha recommends dealer service for work requiring special tools or equipment and specifically recommends dealer maintenance of the front fork.

Regional Specifications and Maintenance

The book is organized into General Information, Specifications, Regular Inspection and Adjustments, Engine, Chassis, Electrical, and Tuning. Maintenance schedules, premix and break-in information, torque-check points, and the Cable Routing Diagram support preparation and routine service.

Market differences: The specification tables distinguish the 4XM00 carburetor baseline for the USA, Canada, and South Africa from 4XM10 for Europe, Australia, and New Zealand. Market-specific spark-plug applications, the European fork-spring baseline, and USA versus non-USA silencer-fiber arrangements are also identified.

Internal Engine and Transmission Repair

Exploded diagrams and extent-of-removal charts separate teardown work from inspection, assembly, and final adjustment. That layout helps mechanics follow an overhaul without mixing removal instructions with assembly checks.

The Carburetor Disassembly layout and Transmission, Shift Cam and Shift Fork assembly view accompany component-specific procedures. Inspection data covers wear limits, clearances, crankshaft runout, gear and shift-component condition, spring limits, seal and bearing orientation, approved lubricants, fluid capacities, and tightening specifications.

Cylinder and piston matching: A mark-and-color chart pairs cylinder sizes with the corresponding pistons. The cylinder inspection section expressly prohibits reboring.

Yamaha warns that separating the carburetor plate and venturi block reduces carburetor performance. The crankshaft procedures specify removal and installation tools rather than hammering the shaft, which risks damage during overhaul.

Brake Hydraulics and Suspension

Brake coverage reaches into piston-seal inspection, hose installation, and final leak and operating checks. Fork service includes damper-rod removal, oil-seal replacement, internal inspection, oil-level setting, and damping adjustment, supported by the Front Fork Disassembly view.

Swingarm service includes bearing, bush, relay-arm and connecting-rod inspection, plus side-clearance measurement and shim selection.

Rear-shock scope: Procedures cover removal, spring and bearing service, oil- and gas-leak inspection, and installation. Yamaha warns against opening the nitrogen-charged cylinder or tank; this section does not provide an internal damper overhaul procedure.

Ignition Diagnosis and Workshop Tools

The Electrical Components and Wiring Diagram and Ignition System Inspection Steps chart connect the ignition tests to a fault-isolation sequence. Connector checks and separate coil tests help narrow an ignition fault before the CDI unit is considered.

Tool references: U.S. and Canadian tools use YM- or YU-prefixed numbers; other markets use Yamaha’s 90890 numbers. Examples include the crankcase separator YU-01135-A / 90890-01135, flywheel puller YM-01189 / 90890-01189, fork-seal driver YM-01442 / 90890-01442, and pocket tester YU-03112 / 90890-03112.

The tool list also identifies the radiator-cap tester, clutch holder, ignition checker, damper-rod tools, and multi-piece crankshaft installer.

Working on competition motocross equipment involves significant mechanical stress and inherent safety risks. Always verify your torque settings and consult a qualified professional if you lack specialized workshop tools or experience.

Preview of Piston and Clutch Inspection Limits

For piston-to-cylinder clearance, the manual gives a standard range of 0.040–0.045 mm and a wear limit of 0.1 mm. The associated inspection section explains cylinder and piston measurement and matching.

Clutch friction plates have a standard thickness of 2.9–3.1 mm and a wear limit of 2.7 mm. The clutch section separately specifies a plate-warpage limit of 0.2 mm.
