Yamaha YZ125X1 Owner's Service Manual, 2008 (P/N LIT-11626-21-43)
228 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Models: YZ125X1, YZ125, YZ125X
Sub-models / Variants: YZ125X1 (USA, CDN: 1C3D), YZ125 (EUROPE: 1C3E; ZA: 1C3G), YZ125X (AUS, NZ: 1C3G)
Model Year: 2008
-
Engine displacement: 124 cm3
-
Engine type: Liquid cooled 2-stroke, single cylinder
-
Transmission type: 6-speed constant-mesh
-
Frame type: Semi double cradle
-
Front fork oil capacity: 524 cm3 (USA, CDN, ZA, AUS, NZ) / 526 cm3 (EUROPE)
-
Rear shock spring rate: K=46.0 N/mm (4.70 kg/mm, 263.2 lb/in)
-
Fuel capacity: 8.0 L (2.11 US gal)
-
Spark plug: NGK BR9EVX
-
Carburetor: MIKUNI TMX 38SS
Yamaha Manual Features & Selected Content Preview

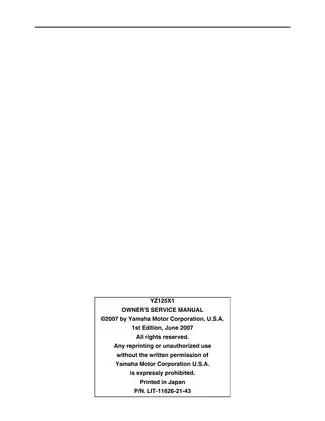

Yamaha's first-edition Owner's Service Manual covers the 2008 YZ125X1, YZ125, and YZ125X market variants for the USA, Canada, Europe, South Africa, Australia, and New Zealand. Published in June 2007, it carries P/N LIT-11626-21-43 and 1C3-28199-13. Operating guidance, internal repair procedures, and race tuning are included for these closed-course competition models.
Searchable Service Text and PDF Bookmarks

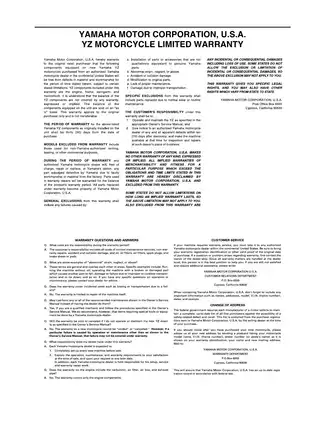

Search and wiring detail: The written service sections support text search, and embedded bookmarks navigate chapters and individual procedures. Some illustration labels and the warranty text are not searchable. Small connector and wire-color labels in the wiring diagram are readable with zooming.

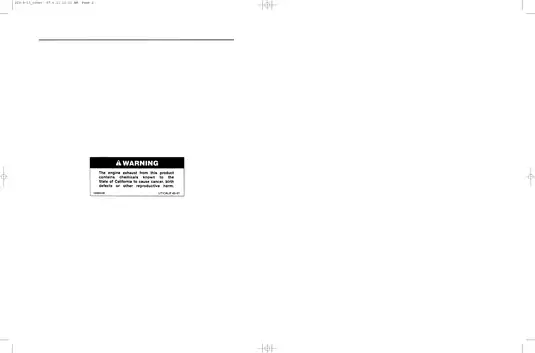

The ZIP download contains one printable English PDF with 228 pages, including 15 pages of original covers and front matter, one of them blank.
Two-Stroke Overhaul, Chassis Service, and Race Tuning
These selected content highlights outline the main service areas. Other topics include silencer packing replacement and preparation for storage.
-
Engine and cooling: Step-by-step procedures for engine removal, cylinder-head and piston service, YPVS power-valve and governor repair, water-pump service, and CDI magneto removal and installation.
-
Clutch and transmission: Clutch repair, kick-shaft and shift-shaft service, crankcase separation, crankshaft installation, and transmission, shift-cam, and shift-fork inspection and assembly.
-
Brakes and wheels: Wheel-bearing replacement, brake-disc inspection, caliper and master-cylinder overhaul, hydraulic bleeding, and final leak and operating checks.
-
Fork, steering, and linkage: Front-fork damper and base-valve service, steering-head repair, and swingarm and suspension-linkage bearing replacement.
-
Maintenance and race setup: Break-in and race-maintenance schedules, cooling-system pressure checks, ignition timing, chain and steering adjustment, plus carburetor, gearing, tire, and suspension tuning.
-
Ignition diagnosis: Engine-stop switch, ignition-coil, plug-cap, pickup-coil, and charging-coil tests, supported by an ignition wiring diagram and troubleshooting flowchart.
-
Workshop specifications: Component torque tables, fluid capacities, specified lubricants, inspection clearances, wear limits, electrical test values, and market-specific settings.
The repair material suits mechanically experienced owners and technicians familiar with two-stroke engines, hydraulic brakes, and adjustable racing suspension.
Top-End Inspection and YPVS Repair
Cylinder-head flatness, cylinder bore and taper, piston dimensions, ring condition, and the small-end bearing receive separate inspection coverage. Piston and cylinder identification charts match the color-coded size groups, helping select compatible top-end parts before assembly.
YPVS material addresses carbon removal, component wear, valve orientation, linkage assembly, and movement checks. The power-valve governor has its own disassembly, inspection, and assembly procedures.
Carburetor Service and Jetting
The Mikuni TMX section covers carburetor removal and assembly, float and needle-valve inspection, fuel-level measurement, and reed-valve checks. Regional settings distinguish the supplied jetting and needle configurations.
Tuning charts relate throttle opening and running symptoms to jet selection, temperature, altitude, terrain, and spark-plug condition. Yamaha identifies the venturi block and main nozzle as nonserviceable assemblies; dismantling them can impair carburetor performance.
Crankshaft, Clutch, and Gearbox Work
Lower-end coverage includes bearing and oil-seal replacement, crankshaft runout and connecting-rod measurements, installation-tool use, crankcase sealing, and checks of crankshaft and gearbox operation after assembly.
Transmission illustrations identify gear positions, circlip orientation, the three shift forks, and the long and short guide bars. Inspection instructions address gear dogs, fork wear, and movement along the guide bars rather than stopping at external shift adjustment.
Brakes, Suspension, and Track Setup
Brake repair extends to piston and seal replacement, hose positioning, and system filling. The fork chapter addresses seals and bushings, damper bleeding, oil level and quantity, and compression and rebound settings. Yamaha recommends dealer maintenance for the front fork.
A fork assembly caution explains how an unsupported damper can drop into a vertically held inner tube and damage the internal valve. Exploded fork views accompany the assembly information.
Rear-suspension tuning covers spring preload, rider sag, rebound damping, and separate low- and high-compression adjustments. Optional fork and shock spring tables include part numbers, while symptom charts relate handling complaints to suspension settings.
Rear shock limits: Removal, spring replacement, bearing service, and external adjustment are covered. Disassembly of the pressurized cylinder or nitrogen reservoir is excluded; nitrogen discharge and disposal are assigned to Yamaha dealers.
Ignition Testing and Workshop Tools
The no-spark flowchart links electrical checks with the specified test equipment and meter connections. An electrical-component location view and cable-routing layouts support identification and installation; crankcase and transmission exploded views show the internal assemblies.
Tool listings distinguish YM-, YU-, and ACC-series references for the USA and Canada from 90890-series references for other markets. Listed examples include the crankcase separator YU-1135-A / 90890-01135, magneto flywheel puller YM-1189 / 90890-01189, fork seal driver YM-A0948 / 90890-01502, and spark tester YM-34487 / ignition checker 90890-06754.
The manual also identifies the supplied YPVS push-rod collar and shows where the crankshaft installation tools are required.
Carburetor and Pickup-Coil Test Data Preview
The carburetor fuel-level specification is 9.5–10.5 mm above the float-chamber mating surface, measured with both the carburetor and gauge held vertically.
For ignition testing, the pickup-coil resistance specification is 248–372 Ω at 20 °C (68 °F). The accompanying test information identifies the lead colors and meter range.
