Yamaha YZ490L (1984) Owner's & Service Manual (P/N LIT-11626-04-25)

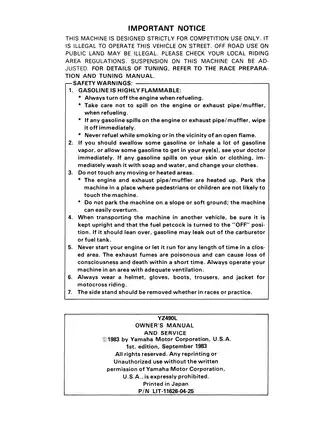

Yamaha owner's and service manual for the 1984 YZ490L, model code 40T, first edition, September 1983. The publication is identified as P/N LIT-11626-04-25, with the additional original cover number 40T-28199-10. The machine is intended strictly for competition use.

PDF Bookmarks, Search and Diagram Detail

Chapter access and wiring labels: Embedded PDF bookmarks link to the chapters and selected service topics. PDF text search is not available. Small wire-color codes and connector labels in the ignition wiring diagram are readable when enlarged.

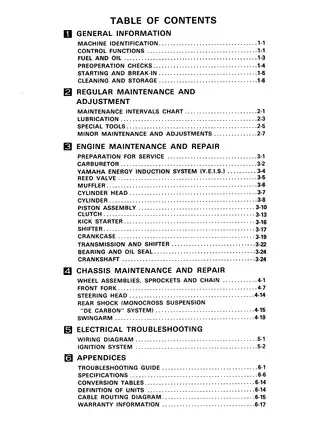

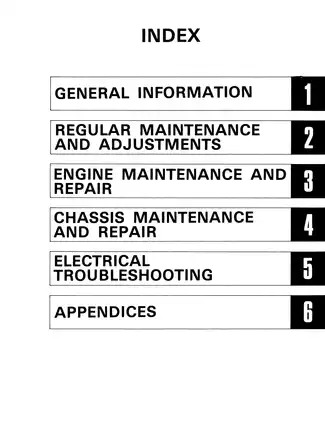

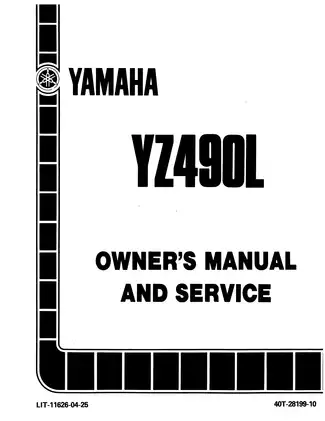

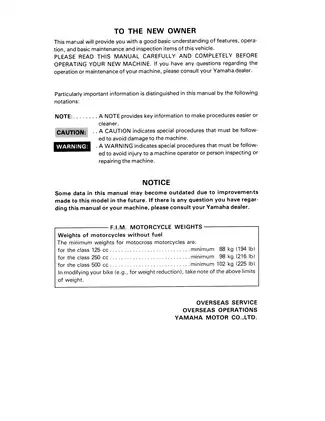

The ZIP contains one printable English-language PDF with 100 pages, including the original cover, four introductory/index pages and the final warranty-information page.

Engine, Chassis and CDI Service Coverage

The following selected service topics outline the repair coverage rather than reproduce the complete contents.

• Intake and exhaust: VM40SS Mikuni carburetor service, Yamaha Energy Induction System inspection, reed-valve checks, and muffler decarbonizing and repacking.

• Engine repair: Step-by-step procedures for cylinder and piston service, engine removal, crankcase separation, crankshaft installation, and bearing and oil-seal work.

• Clutch and shifting: Clutch inspection and adjustment, kick-starter repair, external shift-mechanism service, and transmission gear and shift-fork inspection.

• Wheels and brakes: Wheel removal and installation, rim and spoke inspection, drum-brake service, two-leading-shoe adjustment, and sprocket and chain maintenance.

• Suspension and steering: Front-fork disassembly and seal work, steering-head service, De Carbon Monocross adjustment and removal, and swingarm and linkage inspection.

• Ignition diagnosis: Timing checks and adjustment, a no-spark troubleshooting sequence, coil tests, a wiring diagram, cable-routing drawings, and factory specification tables.

Owners can use the operating and routine-maintenance sections; internal engine repair and electrical diagnosis suit experienced mechanics with the specified measuring equipment and special tools.

Operation and Race-Based Maintenance

The opening chapters cover controls, premix fuel and transmission-oil requirements, pre-operation inspection, cold and warm starting, break-in, cleaning, and long-term storage.

A race-based maintenance interval chart and illustrated lubrication section support service planning. Minor adjustments address the spark plug, throttle and idle controls, air filter, clutch, brakes, drive chain, and steering head.

VM40SS, Y.E.I.S. and Reed-Valve Service

The carburetor section provides an exploded view, jet and repair-part listings, main-jet replacement, float-valve and float-height inspection, and cleaning guidance. Y.E.I.S. coverage addresses the air chamber, hose, connections and damage inspection; the reed-valve section includes petal condition, sealing, stopper height and bending limits.

Detailed carburetor race tuning is assigned to the separate Race Preparation and Tuning Manual, which is not included here.

Top-End Repair, Crankcases and Transmission

The forward-inclined Yamaha Torque Induction engine is covered through cylinder-head maintenance, cylinder-bore inspection, piston and ring service, and piston-pin and bearing checks. The manual distinguishes these operations from the engine removal required for transmission, crankshaft and crankcase-bearing work, helping buyers assess the extent of a planned repair.

Clutch coverage includes friction plates, springs, push components, mechanism adjustment, and primary-drive gear matching. Exploded clutch and transmission views support gear, shift-fork and shift-cam inspection and reassembly.

Assembly cautions: The manual addresses rod, piston and bearing damage from hammering a tight piston pin, plus ring damage from incorrect locating-pin engagement or forcing the cylinder into place. Crankcase cautions explain the risk to sealing faces from uneven separation or striking mating surfaces.

Engine tools: References include the YU-01135 crankcase separator and YU-90058 crankshaft installer with YU-90059 spacer and YU-90060/YU-90062 installing bolt and adapter.

Drum Brakes, Forks and Monocross Suspension

Wheel and brake coverage includes shoe and drum inspection, front-brake cam synchronization, brake-cam alignment marks, sprocket wear, chain condition and master-link orientation. Steering-head bearing inspection and assembly, swingarm lubrication, and linkage layout are documented. Wheel- and swingarm-bearing replacement is referred to a Yamaha dealer.

Front fork: The exploded assembly view accompanies oil replacement, pressure release, damping-cylinder work, slide-metal and seal replacement, inspection and reassembly. Tool references include the YM-33962/YM-01326 cylinder-holder set and YM-08020 seal-and-bushing service tool.

Rear shock: The De Carbon Monocross section provides spring selection, preload, rebound and compression adjustment ranges, nitrogen-pressure specifications, spring removal, and shock-unit removal and installation. It expressly prohibits internal cylinder, reservoir, hose-connection and plug disassembly.

Detailed fork and rear-shock race setup is assigned to the separate tuning manual. Because the fork can retain air pressure and the shock reservoir contains high-pressure nitrogen, those assemblies require the pressure-handling precautions stated in the manual before repair work begins.

CDI Fault Isolation and Factory References

The no-spark test sequence separates checks of the spark plug, spark gap, engine-stop switch, magneto source coil, pickup coil, connectors and ignition coil. Combined with the wiring diagram, these checks help distinguish ignition-circuit faults before parts are selected.

Timing work references the YU-03097 dial gauge, YU-01256-1 stand and YU-01256-2 extension; electrical tests reference the YU-03112 Yamaha pocket tester. Cable-routing drawings cover throttle, brake and clutch cables, engine-stop and magneto leads, fuel lines and breather hoses.

Appendix fault tables address hard starting, poor high-speed performance, overheating, shifting faults, clutch slip or drag, steering looseness, wheel runout, brake faults, and frame or swingarm defects.

Factory tables group cylinder-head flatness, bore taper and out-of-round limits, piston and ring fit, crankshaft runout, connecting-rod clearances, clutch wear, shaft deflection, carburetor calibration and reed-valve limits. Chassis references cover fork and shock settings, swingarm play, wheel limits, chain and brake dimensions, and component torques. Electrical specifications include timing and advance data, coil test values and spark-output specifications; general torque and metric/inch conversion tables complete the reference section.

Selected Carburetor and Ignition Test Specifications

For the VM40SS, float height is specified as 20.1 ± 1.0 mm, measured with the carburetor inverted from the float-chamber mating surface, gasket removed, to the float-arm tip.

The CDI magneto specifications list source-coil resistance as 310 Ω ± 10% between Brown and Black, and pickup-coil resistance as 12.4 Ω ± 10% between Black and White/Red. Both values apply at 20°C (68°F).
