Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: YZ490S (1LV), YZ490

Model Years: 1985–1986

VIN prefix (YZ490S): JYA1LV00 (positions 1–8; identifies the listed YZ490S configuration)

Engine starting number (YZ490S): 1LV-000101


  • Engine displacement: 487 cm³

  • Spark plug gap: 0.5–0.6 mm (0.020–0.024 in)

  • Spark plug torque: 20 Nm (14 ft-lb)

  • Ignition timing: 2.0 ± 0.1 mm (0.080 ± 0.004 in) BTDC

  • Fuel tank capacity: 10 liters (2.64 US gal)

  • Transmission oil capacity (periodic change): 0.75 liters (0.79 US qt)

  • Primary coil resistance: 1.0Ω ± 15% at 20°C (68°F)

  • Source coil resistance: 310Ω ± 10% at 20°C (68°F)

  • Transmission (YZ490S): Constant-mesh, 5-speed

Yamaha Manual Features & Selected Content Preview

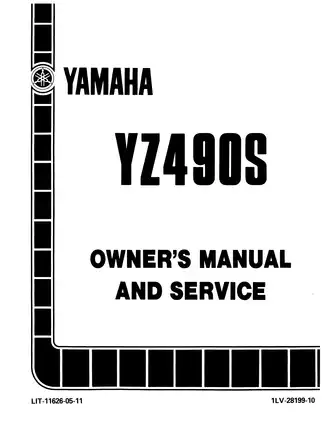

Yamaha’s YZ490S Owner’s and Service Manual, P/N LIT-11626-05-11, combines machine setup and race-day maintenance with engine and chassis repair. This is the First Edition, August 1985, for the competition-use YZ490S, model code 1LV. The original cover also carries reference 1LV-28199-10.

Bookmarks and Wiring Detail

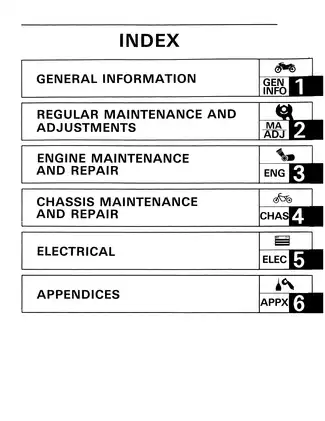

Search, navigation, and small labels: PDF text search is not available. Embedded bookmarks cover all six chapters and many subsections, although some subsection links open one page after the section begins. Small wire-color codes and connector labels in the ignition diagrams are readable with zoom.

The ZIP download contains one printable, 123-page PDF. That total includes the original cover, introductory material, appendices, and three chapter-ending pages without body text.


Two-Stroke Engine, Chassis, and Ignition Service

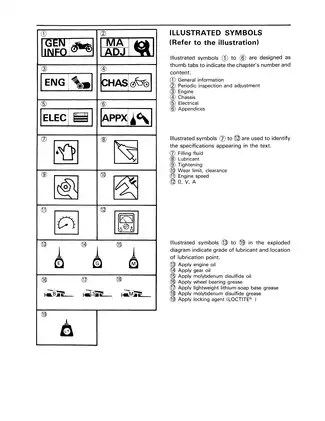

The following are selected content highlights, rather than a complete contents list. Break-in guidance and unit-conversion tables are further examples of the material included.

  • Carburetion and induction: Mikuni VM40SS removal, disassembly, inspection, and float adjustment, with Y.E.I.S. air-chamber checks, reed-valve inspection, and muffler maintenance.

  • Internal engine repair: Step-by-step procedures for engine removal, crankcase splitting, clutch and primary-drive repair, transmission and shifter inspection, crankshaft installation, and crankcase assembly.

  • Wheels and brakes: Wheel, sprocket, and chain service; rear drum-brake inspection; front disc-brake caliper and master-cylinder repair; and hydraulic-system bleeding.

  • Fork and rear suspension: Front-fork overhaul, steering-head service, Monocross shock settings and replacement, B.A.S.S. cable adjustment, and swingarm-linkage inspection.

  • Electrical troubleshooting: No-spark and weak-spark diagnosis using CDI magneto, ignition-coil, engine-stop-switch, and connector checks, with electrical test specifications.

  • Illustrated references: Ignition wiring and cable-routing diagrams, plus exploded views of the clutch, transmission and shifter, front disc brake, and swingarm linkage.

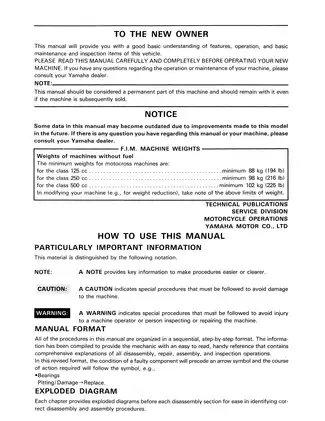

The introductory material addresses owners, while the repair sections suit experienced owners and mechanics familiar with precision measurement, engine disassembly, hydraulic brakes, and model-specific tools.

Engine Inspection and Workshop Tools

Routine preparation: Controls, fuel and transmission-oil requirements, pre-operation checks, cleaning, and storage guidance accompany the race-oriented maintenance schedule. The schedule and component inspection criteria support routine race preparation and wear assessment during teardown.

Internal inspection: The engine sections address the air-cooled, forward-inclined two-stroke and its wet multi-disc clutch. Dimensional checks cover cylinder-head warpage, bore condition, piston and ring clearances, crankshaft runout, connecting-rod play, clutch wear, plate warpage, and transmission-shaft runout.

Yamaha distinguishes work performed with the engine installed from crankshaft, transmission, crankcase-bearing, and oil-seal service requiring engine removal. The crankcase section warns that forced, uneven separation or blows to gasket-mating surfaces can damage the cases.

Special tools: Callouts identify the YU-01135 crankcase separator, YU-90058/YU-90060/YU-90063/YU-90059 crankshaft installer set, YM-91042 clutch holder, YM-08020 fork seal and bushing service tool, and YU-03112 pocket tester.

Fork, Monocross, and Brake Details

Front-fork references distinguish standard and optional springs and provide oil-level, tube-height, air-pressure, and compression-damping settings. The disassembly instructions flag a specific damage risk: bottoming the inner tube during guide-bushing removal can damage the oil-lock piece.

The Monocross “De Carbon” section covers spring selection, preload, rebound and compression settings, gas-pressure specifications, and shock removal and installation. Yamaha’s Brake Actuated Suspension System (B.A.S.S.) links rear-brake operation to reduced rear-suspension compression damping; its section explains cable replacement and adjustment.

Brake inspection distinguishes rear-drum shoe and drum wear from front-disc pad wear, rotor thickness, and disc deflection. Brake-fluid requirements and component-specific tightening data accompany the repair sections.

Ignition Fault Isolation and Troubleshooting Charts

The ignition test sequence separates plug, plug-cap, stop-switch, magneto, and ignition-coil faults before CDI-unit replacement is considered. Coil-resistance checks, spark tests, and connector illustrations provide the references for tracing the fault.

Appendix charts relate hard starting, poor high-speed performance, and overheating to ignition, compression, and air/fuel causes. Separate tables address transmission and shifter faults, clutch slipping or dragging, steering looseness, wheel runout, brakes, frame damage, and swingarm concerns.

Tuning and Specialist Work Boundaries

Standard carburetor and suspension settings are included, but detailed carburetor, front-fork, and rear-shock tuning is referred to the separate Race Preparation and Tuning Manual, which is not included.

Rear-shock coverage addresses adjustment, removal, installation, and spring replacement; it does not provide an internal damper overhaul procedure. Shock disposal is reserved for Yamaha dealers. Crankshaft repair following an out-of-tolerance inspection and wheel-bearing replacement are also referred to a Yamaha dealer.

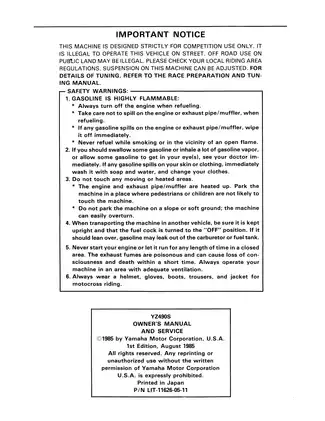

Service involves flammable premix fuel, hydraulic brakes, and pressurized suspension assemblies. Stable support, ventilation, and the manual’s component-specific safety precautions remain necessary.

Piston and Ring Inspection Examples

For YZ490S top-end inspection, piston-to-cylinder clearance is specified at 0.080–0.085 mm, with a separate service limit of 0.1 mm.

Installed piston-ring end gap is specified at 0.35–0.50 mm, with a 1.0 mm limit. These figures accompany the piston and ring inspection procedures and are distinct from the ring side-clearance specifications.
