Yamaha YZ80J1 (1997) Owner's Service Manual (P/N LIT-11626-10-42)

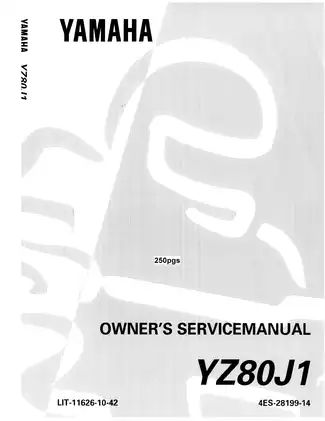

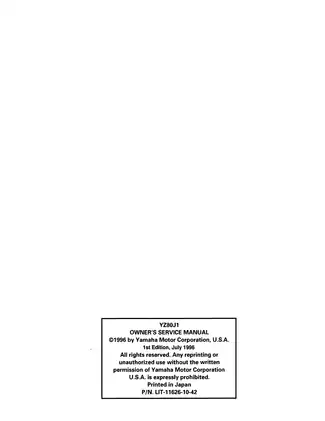

This is Yamaha's YZ80J1 Owner's Service Manual, first edition (July 1996), P/N LIT-11626-10-42. The cover also carries code 4ES-28199-14. The manual covers the U.S. YZ80J1 and gives model-specific service data for the YZ80 and YZ80LW families.

PDF Search, Bookmarks, and Wiring Detail

Search and navigation: PDF text search is unavailable. The page bookmarks are unlabeled, and the printed table of contents provides chapter and section references. The small wire color codes on the CDI diagram are clear when zoomed in.

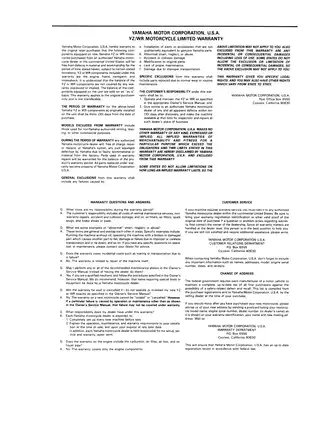

The ZIP download contains one printable English-language PDF with 248 pages, including the cover, warranty information, index, table of contents, and three blank pages in the front matter.

Engine Overhaul, Chassis Service, and Race Setup

These selected topics show the range of work covered. The manual also includes pre-ride checks and break-in guidance after replacing cylinders, crankshafts, pistons, rings, or gears.

• Engine repair: Engine removal and installation, cylinder and piston inspection, crankcase separation, crankshaft service, clutch and primary drive, kick axle, shift shaft, and transmission repair.

• Cooling and intake: Radiator and water pump service, cooling-system and radiator-cap pressure checks, Mikuni VM26SS carburetor and reed valve inspection, and float height adjustment.

• Chassis service: Front and rear disc brakes, wheel bearings, front fork disassembly and reassembly, steering-head bearings, swingarm linkage, and rear shock spring removal and inspection.

• Periodic service: Clutch and throttle adjustments, air filter cleaning, transmission oil changes, chain and sprocket checks, spoke inspection, silencer repacking, and spark plug inspection.

• CDI ignition: Magneto removal and installation, ignition timing checks, a wiring diagram with wire color codes, and a no-spark flowchart with component tests.

• Race setup: Carburetor setting charts, spark plug heat range selection, sprocket and tire pressure changes, fork oil and spring options, and rear spring preload and damping.

• Workshop references: Component torque tables, wear limits, clearances, fluid capacities, cable routing drawings, and Yamaha special-tool numbers with regional equivalents.

Yamaha introduces the controls and basic maintenance for owners and lays out step-by-step disassembly, inspection, and reassembly for mechanics.

Matching Parts to the YZ80 and YZ80LW

Yamaha lists the YZ80LC and YZ80LW for Europe, the YZ80 (J) for Canada, Australia, New Zealand, and South Africa, and the YZ80LWJ for Australia and New Zealand. The 4ES6 and 4LC4 configurations share one set of cylinder bore and piston dimensions, while 4GT9 and 4LB7 use another.

The chassis tables distinguish wheel and tire sizes, secondary gearing, suspension travel, fork position, springs, and baseline damping. The VIN, frame and engine serial number, and model label illustrations help you identify the machine before choosing piston dimensions or returning a modified chassis to its factory settings.

Exploded Views and Special Tools

The radiator and water pump, cylinder head/cylinder/piston, crankcase and crankshaft, and front fork exploded views accompany removal notes, inspection steps, and reassembly tables. Forcing the crankcase halves apart or hammering the crankshaft during removal or installation can damage the cases or crankshaft assembly.

Tool numbers include the crankcase separator YU-01135/90890-01135 and its bolt YM-01305/90890-01305, the fork seal driver YM-01442/90890-01442, and the pocket tester YU-03112/90890-03112. Yamaha also identifies the radiator cap tester, crankshaft installer, rotor holder, flywheel puller, clutch holder, damper rod tools, and dynamic spark tester.

Brake Hydraulics and Rear Shock

Brake procedures include pad replacement, caliper piston and seal service, master cylinder kits, hose inspection, fluid replacement, and bleeding. Reversing the master cylinder cups can impair braking.

Rear shock service covers removal, spring handling, external inspection, installation, and setup. Yamaha specifies keeping the high-pressure nitrogen cylinder and reservoir sealed and reserves shock disposal for dealers. Follow the manual's warnings on supporting the machine and handling brake fluid, hot coolant, and the pressurized shock.

CDI Fault Isolation

Electrical coverage focuses on the competition ignition circuit. The diagram shows the engine stop button, ignition coil, CDI unit, CDI magneto, and spark plug. The inspection chart uses spark gap, connector and lead checks, and tests of the stop button, ignition coil, and magneto to narrow down a no-spark fault before CDI unit replacement.

Jetting and Suspension at the Track

The tuning chapter shows where the pilot circuit, throttle valve cutaway, jet needle and main nozzle, and main jet take effect as the throttle opens. It relates jetting choices to weather, course surface, spark plug appearance, and running symptoms. Separate front and rear suspension charts match handling symptoms to adjustments, including rear spring set length.

Sample Clutch and CDI Test Specs

For the YZ80 and YZ80LW wet clutch, Yamaha gives a standard friction plate thickness of 2.9–3.1 mm and a wear limit of 2.7 mm. The inspection calls for measuring the plate at four points.

For both models, the CDI magneto source coil should read 257–314 Ω at 20°C (68°F) between the brown and black leads.
