2004–2012 Honda CRF70F Factory Service & Repair Manual (P/N 61GCF51)

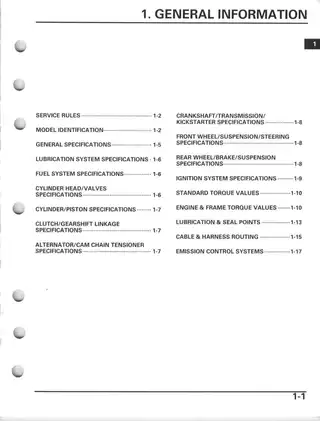

This factory service manual covers maintenance, troubleshooting, and repair of the 2004–2012 Honda CRF70F off-road motorcycle. Its 17 sections include model identification, service specifications, and engine and chassis procedures.

• Engine repair: Engine removal and installation, cylinder-head and valve service, valve-seat refacing, cylinder and piston inspection, and camshaft timing.

• Clutch and transmission: Centrifugal clutch overhaul, gearshift linkage service, crankcase separation, crankshaft measurements, shift-drum inspection, and kickstarter disassembly.

• Fuel and intake: PB12H and PB12J carburetor service, float inspection, idle-drop adjustment, high-altitude settings, and air-cleaner maintenance.

• Lubrication and timing drive: Oil-pump inspection, strainer and centrifugal-filter cleaning, alternator removal, and cam-chain tensioner service.

• Wheels and suspension: Telescopic-fork rebuilding, steering-head bearing replacement, wheel-bearing service, swingarm inspection, and rear shock-absorber replacement.

• Brakes and chassis: Front and rear expanding-shoe brake service, drive-chain adjustment, spark-arrester cleaning, and body-panel and exhaust-system removal.

• Ignition diagnosis: Peak-voltage tests, ignition-timing checks, ignition and engine-stop switch testing, wiring diagrams, and symptom-based troubleshooting charts.

Honda wrote this manual for qualified, professional technicians with service training and the required tools and equipment.

Engine and Drivetrain Service

The manual identifies work that can be performed with the engine in the frame, including top-end, clutch, oil-pump, and cam-chain tensioner service. Crankshaft, transmission, and kickstarter work requires engine removal and crankcase separation.

Inspection data covers OHC valve-train clearances, piston-ring gaps, crankshaft runout, gear ratios, and transmission wear limits. Valve-seat refacing is documented, while damaged valve faces call for valve replacement.

Exploded engine and chassis views accompany the assembly procedures. Lubrication-system diagrams and special-tool application drawings show oil distribution and tool placement.

PB12H and PB12J Carburetor Differences

The fuel section distinguishes the PB12H carburetor used for 2004–2005 from the PB12J used after 2005. The later jet needle has no clip-position adjustment.

The float is nonadjustable and is replaced as an assembly if its level is outside specification. Float inspection calls for gauge 07401-0010000; the carburetor assembly illustration identifies the different needles and air screws.

High-altitude coverage includes carburetor changes and restoration of standard settings. The manual warns that using high-altitude settings at lower elevations can overheat and damage the engine.

Fork, Brake, and Frame Work

Fork service extends to the piston, spring, seals, and oil-level checks. Rear shock procedures cover removal, inspection, and complete-assembly replacement; internal damper rebuilding is outside that section.

Maintenance schedules distinguish early and later models. Cable and harness routing views, frame specifications, exhaust installation details, and crankcase-emission diagrams support component placement and hose identification.

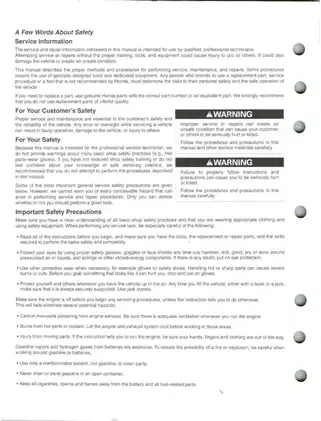

Before service, follow the manual's safety precautions and torque sequences, including its warnings about supporting the motorcycle and handling brake dust.

Ignition Tests and Fault Tracing

Peak-voltage checks compare readings at the ignition control module (ICM) with readings at the pulse-generator and alternator exciter-coil connections. This comparison helps distinguish a wiring fault from an ignition-component fault before replacement parts are selected.

The ignition-system diagram and wiring schematic identify wire colors and switch circuits. Troubleshooting charts address starting problems, power loss, and poor running at different engine speeds.

The manual also warns that disconnecting the ICM while current is flowing can damage the module.

A Preview of Compression, Head, and Chain Specifications

These are a few examples from the manual's engine-inspection and chassis-adjustment data.

The cylinder-compression test specifies 1,079 kPa (156 psi) at 1,000 rpm with the engine warm and throttle fully open. The cylinder-head warpage service limit is 0.05 mm.

Drive-chain slack is specified as 10–20 mm along the lower run midway between the sprockets, with the engine off, transmission in neutral, and motorcycle on its side stand.

PDF Search, Navigation, and Page Count

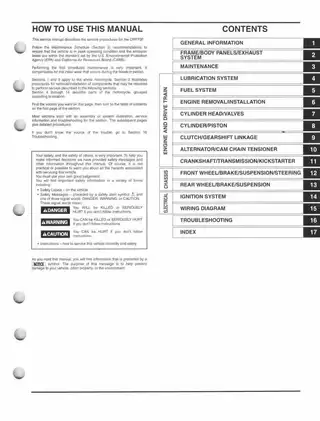

Text search and diagram detail: An OCR text layer supports searches through much of the manual, but recognition errors leave some tables and wiring labels unsearchable. Embedded bookmarks link the contents and all 17 numbered sections. Small wiring labels require enlargement for comfortable reading.

Supplied as one printable, 236-page PDF in English. The total includes one cover page, three introductory pages, and six memo pages; the remaining 226 pages contain the numbered manual sections and index.
