2003–2009 Yamaha YJ125S / Vino 125 Scooter Service Manual (P/N LIT-11616-17-43)

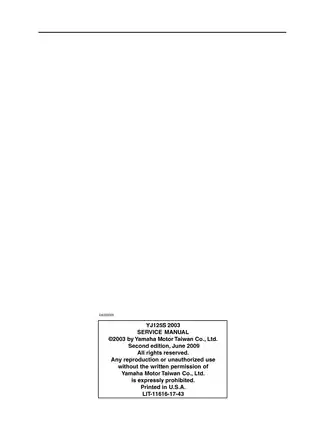

The 2003–2009 Yamaha YJ125S / Vino 125 service manual is Yamaha publication LIT-11616-17-43, second edition, June 2009, with cover reference 5YR-F8197-10. It covers mechanical, chassis, and electrical service for the USA and Canadian model configurations.

• Engine repair: Engine removal and installation, cylinder-head service, rocker-arm and camshaft inspection, valve work, piston checks, crankcase separation, and oil-pump inspection.

• Belt drive and clutch: V-belt inspection, primary sliding-sheave service, secondary-sheave disassembly, centrifugal-clutch checks, kickstarter assembly, and starter-clutch testing.

• Carburetor and emissions: Carburetor disassembly and assembly, fuel-level adjustment, fuel-cock checks, autochoke testing, and air-induction system inspection.

• Brakes and chassis: Front master-cylinder and caliper overhaul, hydraulic bleeding, rear drum-brake inspection, front-fork rebuilding, and steering-head bearing service.

• Electrical diagnosis: C.D.I. ignition, electric starting, charging, lighting, signaling, carburetor heating, and auto-choke troubleshooting, supported by circuit diagrams and switch-continuity charts.

• Maintenance references: Emission-control and general maintenance charts, lubrication schedules, component-specific torque tables, fluid capacities, and inspection limits.

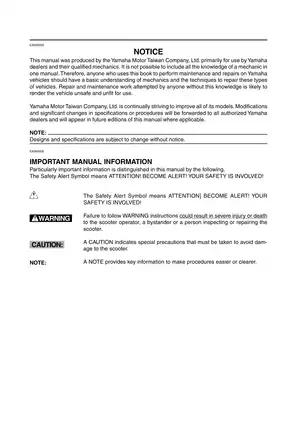

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of vehicle mechanics and scooter repair techniques.

Service and Internal Engine Repair

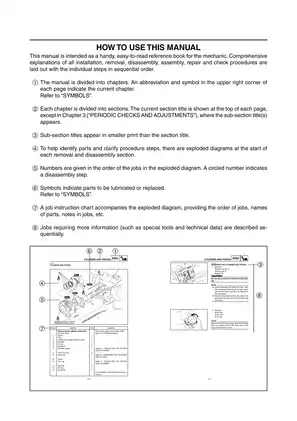

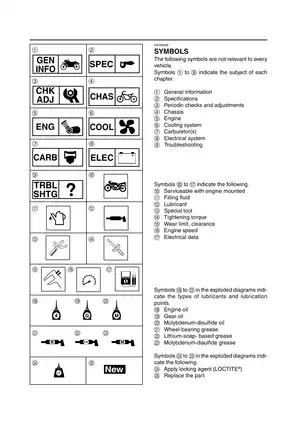

The publication starts with scooter identification and shop preparation, then separates emission-control maintenance from general maintenance and lubrication. Exploded component views use numbered job charts and lubrication or replacement symbols to help verify part orientation before final assembly.

Internal engine work: Repair coverage extends to valve-seat checks and lapping, timing-chain tensioner inspection, crankshaft and connecting-rod measurements, and oil-pump rotor-clearance checks. Cylinder-head tightening sequences distinguish the head nuts from the smaller head bolts.

Oil Flow Diagrams and Cable Routing drawings show lubrication paths and the placement of hoses, cables, and electrical leads.

CVT Sheaves, Clutch, and Final Drive

Inspection sections cover primary sliding-sheave weights, sliders, secondary-sheave torque-cam grooves, clutch shoes, and final-drive gears. The starter-clutch section includes engagement and freewheeling checks.

Belt-drive procedures identify rotor holding tool 90890-01235 (YU-01235) for primary-sheave removal and clutch spring holder 90890-01337 (YM-33285 / YM-33285-6) for secondary-sheave disassembly.

Carburetor, Autochoke, and Air Induction

Carburetor repair includes float and needle-valve checks, diaphragm inspection, accelerator-pump assembly, and fuel-level adjustment. The autochoke unit has both passage-flow and electrical tests, helping distinguish a starter-plunger problem from a wiring or supply fault.

Air-induction coverage includes hose and air cut-off valve checks. Carburetor-heating diagnosis tests the thermo switch and heater element.

Brake Hydraulics, Forks, and Steering

Front-fork rebuild procedures cover damper-rod inspection, oil-seal replacement, and assembly checks. Chassis sections also address wheel bearings, static wheel balance, steering-head adjustment, and rear shock-absorber inspection.

Assembly cautions: The front-brake section warns that solvents can swell and distort caliper piston seals. The steering-head procedure warns that incorrect bearing-race installation can damage the head pipe.

Support the scooter securely during wheel or fork service, and follow the manual’s brake-system safety precautions.

Electrical Circuits and Fault Isolation

The main Wiring Diagram includes component and wire-color keys. The Charging System circuit diagram and Starting Circuit Cut-off System Operation drawing support circuit tracing, including the brake-switch and sidestand interlocks.

Switch-continuity charts, ignition-coil and pickup-coil tests, charging-output checks, and fuse specifications support diagnosis of the 12 V system. Symptom-based troubleshooting also addresses starting failures, incorrect idle, clutch slip, overheating, poor braking, and unstable handling.

A Sample of Valve, Head-Fastener, and Oil Specifications

These are a few of the assembly and maintenance specifications included in the manual.

With the engine cold and the piston at compression TDC, valve clearances are 0.08–0.12 mm for the intake and 0.13–0.17 mm for the exhaust. Cylinder-head data distinguish the 22 Nm head nuts, lubricated with engine oil and tightened in sequence in two stages, from the separate 12 Nm head bolts.

Periodic oil-change quantities are 1.0 L for the engine and 0.13 L for the final transmission; separate total-fill quantities are also listed.

PDF Search, Bookmarks, and Page Count

Search and diagram detail: Searchable text is available in the main chapters; the publication-information page is not searchable. Embedded bookmarks cover most sections, but the carburetor-heating and auto-choke entries have no working destinations. Small wiring labels are readable when enlarged.

One printable English-language PDF contains 293 pages, including the original cover, publication-information page, chapter contents pages, and back cover.
