2009 Yamaha FJR1300, FJR13AY(C) & FJR13AEY(C) Service Manual (P/N Lit-11616-22-73)

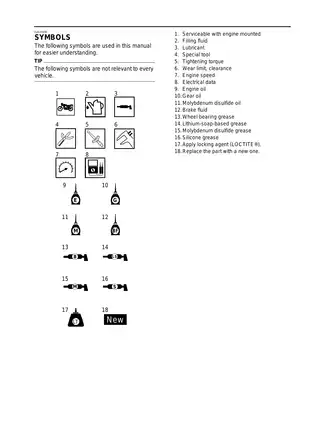

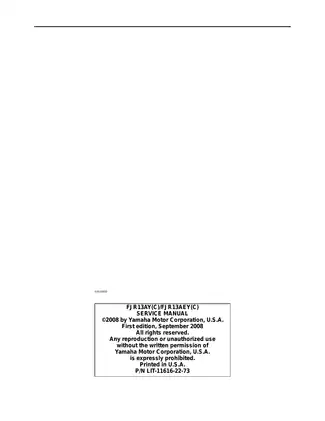

This 2009 Yamaha FJR1300 service manual covers FJR13AY(C) and FJR13AEY(C), including the standard FJR13A and YCC-S-equipped FJR13AE. Publication P/N LIT-11616-22-73 is the first edition, September 2008.

• Engine repair: Engine removal, cylinder-head and valve work, camshaft timing, piston and crankshaft inspection, and trochoid oil-pump service.

• Transmission and shaft drive: Internal transmission inspection, clutch repair, middle-gear backlash adjustment, and final-drive disassembly, bearing replacement, and gear alignment.

• Brakes and chassis: Unified-brake and ABS servicing, hydraulic bleeding, hydraulic-unit operation tests, steering-head bearing replacement, and front-fork disassembly and assembly.

• FJR13AE shifting: YCC-S actuator service, gear-position-sensor and foot-shift-switch adjustment, hydraulic-clutch bleeding, and post-service operational checks.

• Fuel and cooling: Throttle-body synchronization, fuel-pressure testing, injector removal, thermostat inspection, radiator testing, and water-pump service.

• Electrical troubleshooting: System circuit diagrams, fault-code tables, diagnostic modes, connector charts, electrical test specifications, and model-specific color wiring diagrams.

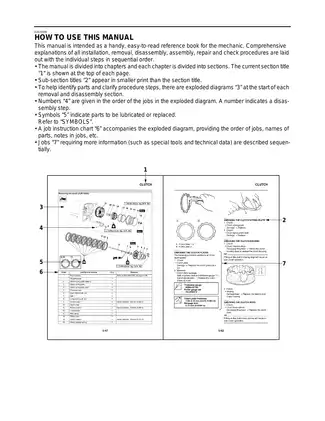

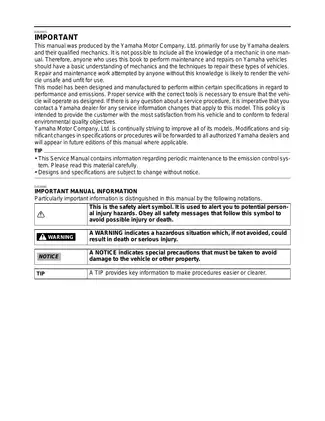

Yamaha wrote this manual primarily for its dealers and qualified mechanics; it assumes existing mechanical knowledge and the tools needed for the documented work.

Engine and Driveline Repair

The engine sections extend through valve-seat inspection, timing-chain and guide checks, crankshaft bearing selection, balancer installation, and transmission shaft assembly. Exploded assembly views identify parts and show where replacement or lubrication is required.

Reference data: Dimensions, model-specific weights and load limits, gear ratios, wear limits, and component-specific torque tables support the repair procedures.

Gear setup: Separate middle-gear and final-drive sections explain backlash measurement, shim selection, and gear alignment. Shaft-drive troubleshooting relates rumbling, whining, and clunking to possible faults; insufficient backlash can damage the gear teeth.

FJR13AE Clutch and YCC-S Service

The AE uses electronically controlled clutch and shift actuators with an MCU; YCC-S still requires rider-selected gear changes. Its clutch procedures include vacuum-assisted bleeding, pressure-plate-stroke measurement, friction-plate break-in after replacement, and checks for rear-wheel drag and starting-off behavior.

The specified bleeding equipment includes vacuum/pressure pump gauge set 90890-06756 / YS-42423. Gear-position-sensor installation and adjustment receive separate coverage, with a warning that installation outside neutral can damage the sensor.

Unified Brakes, ABS, and Chassis

Brake coverage distinguishes the linked right-front circuit, proportioning valve, and metering valve. The manual documents the required bleeding sequence and hydraulic-unit response tests; the ABS ECU and hydraulic unit are integrated assemblies that cannot be disassembled.

Steering-head procedures cover bearing and race replacement. Front-fork sections address internal inspection, seals, bushings, and damper assembly, alongside suspension adjustment data and swingarm service.

Brake and clutch work requires close attention to the manual’s hydraulic-system warnings and post-service checks.

Fuel Delivery and Cooling

Fuel-system work includes throttle-position-sensor adjustment and California-specific tank breather and overflow connections. Cooling coverage extends to oil-cooler removal, thermostat testing, radiator pressure checks, and water-pump mechanical-seal replacement.

Diagnostic Tables and System Drawings

Fuel-injection, ABS, and YCC-S fault tables link detected symptoms to component checks and reinstatement requirements. These distinctions help separate wiring or sensor faults from actuator and control-unit problems before replacement decisions.

The instrument section explains multi-function meter displays and self-diagnosis indications. Separate electrical sections address the windshield drive, accessory box, and AE grip warmers.

Reference drawings include the Engine Oil Lubrication Chart, Cooling System Diagrams, and Unified Brake System Block Diagram. The ABS Coupler Location Chart, YCC-S Circuit Diagram, and model-specific color wiring diagrams support electrical tracing.

A Sample of Valve, Cooling, and Head-Bolt Data

These examples show a small selection of the engine service specifications. For both covered models, valve clearance on a cold engine at room temperature is 0.15–0.22 mm intake and 0.18–0.25 mm exhaust.

The cooling table lists 2.60 L as radiator capacity including all routes, with separate entries for the radiator alone and the coolant reservoir.

Cylinder-head data specifies a 175–185° final angle for the M10 bolts as part of a multistage tightening procedure.

Searchable Text, Bookmarks, and Color Wiring Pages

Search and diagram detail: Searchable PDF text and embedded bookmarks provide access to chapters, sections, and both model wiring diagrams. Small circuit labels and connector details require zooming.

Supplied as one printable, 744-page English PDF. The total already includes the cover and front matter, five blank pages, the rear cover, and four color wiring-diagram pages at the end.
