Husqvarna Viking 6030 Sewing Machine Operating Manual
54 Pages • ZIP Download: Printable PDF • 21.67 MB
Husqvarna Models Covered & Key Technical Specifications
Model & Model Code: Viking 6030 (Type 60 30)
-
Needle type: 705-H (15x1 as a temporary substitute)
-
Stitch length range: 0 to 4
-
Stitch width range: 0 to 4
-
Presser foot clamp: White background behind the needle eye for easier threading
-
Power gear: Reduces sewing speed to 1/5 of normal
-
Buttonhole settings: Graduated markings on foot
Husqvarna Manual Features & Selected Content Preview

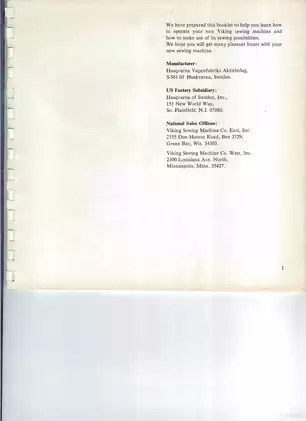

This operating manual from Husqvarna Vapenfabriks Aktiebolag covers setup, sewing, and routine care for the Husqvarna Viking 6030 sewing machine.
PDF Search and Page Count

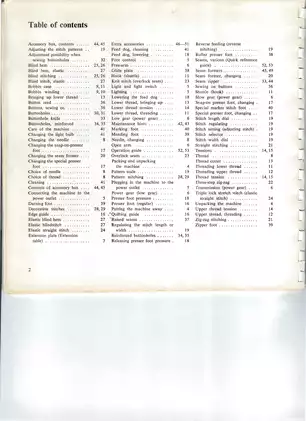

Text search and navigation: The PDF has searchable text and a printed table of contents. Stitch symbols and some dial markings are best read directly on the page. The file has no embedded bookmarks.

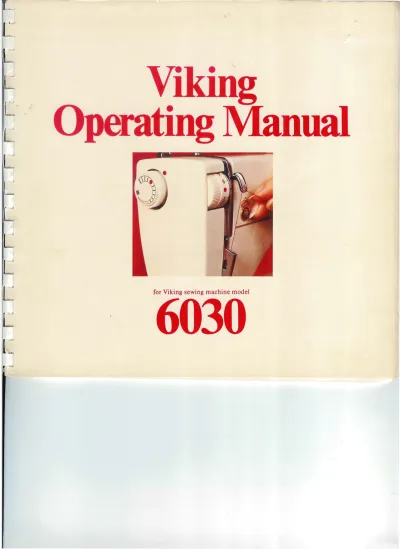

The ZIP download contains one printable English-language PDF with 54 pages, including the original front cover.
Threading, Stitch Selection, and Machine Care
These are selected topics from the manual. It also shows how to sew on buttons with a button reed and how to transfer pattern markings to fabric with the special marker stitch foot.

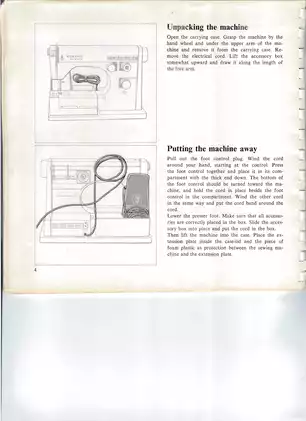

- Machine setup: Needle installation, upper and lower threading, and use of the free arm and extension plate.
- Bobbins and tension: Step-by-step instructions for removing and refitting the bobbin case, correcting uneven winding, and adjusting upper and lower thread tension.
- Speed and fabric feed: Power gear (low gear), presser-foot pressure, and feed-dog settings for slow sewing, darning, and moving fabric by hand.
- Stitch selection: The color-coded pattern scale and the selector, length, and width dials for utility and decorative stitches.
- Buttonholes: Illustrated instructions for standard and reinforced buttonholes, including stitch density and closing bars.
- Care and troubleshooting: Cleaning, light bulb replacement, and checks for needle or thread breakage, irregular feeding, incorrect stitch patterns, and sluggish running.
The guide suits owners learning to use a 6030, with setup illustrations that show where the thread runs and how the bobbin case fits.
Thread Tension and Buttonhole Balance
The bobbin illustrations show which winding pattern calls for checking whether the bobbin is fully seated on the spindle. The tension illustrations show how to tell from a test seam whether the upper tension is too tight or too loose before adjusting the bobbin-case screw.
The markings on the buttonhole foot help keep buttonholes the same length. If a fabric, needle, and thread combination produces uneven zigzag columns, the manual shows how to balance them with the ring around the reverse-sewing button.
Stitch Controls and Seam Formers
Straight stitching, zigzag, and three-step zigzag are available with any seam former installed. The three-step stitch can be used for overcasting and mending. A needle and thread chart pairs thread sizes with needle sizes.
Seam former A provides the knit stitch (overlock seam), triple-lock elastic straight stitch, and standard and elastic blindstitches. The knit stitch joins fabric and finishes the seam edge in one pass. The elastic straight-stitch instructions show how to balance forward and reverse stitch lengths.
The manual charts the decorative patterns for seam formers B, C, and D and explains how the stitch length dial fine-tunes yellow- and blue-coded patterns. The accessory lists distinguish the original A–D formers from optional E–H. The closing Operation guide pairs sewing tasks with selector, length, width, and tension settings and identifies the presser foot for each task.
Presser Feet and Accessories
The instructions distinguish changing a snap-on sole from replacing the presser-foot ankle. The accessory illustrations identify the regular utility foot (41 11 383), buttonhole foot (41 11 650), and blindstitching foot (41 14 228).
The manual explains how the presser-foot pressure dial engages the darning foot’s vibrator and shows how to sew twin-needle raised seams with or without gimp cord. It also explains where the roller foot helps grip coarse knits and where the glide plate helps keep coated fabrics from sticking to the utility foot.
Cleaning and Basic Fault Checks
The care section shows how to remove the throat plate to clean the feed-dog teeth and covers cleaning the bobbin case and shuttle. Trapped thread and residue from fabric finishes around the shuttle’s center stud can cause noise and sewing trouble.
Unplug the machine before changing the needle. Pulling fabric through the machine can deflect the needle into the throat plate and break it. A chipped or sharp needle hole in the plate can also break thread.
Repair guidance is limited to operator-level checks and minor fixes, such as addressing a damaged throat plate. Hook timing, internal drive overhaul, and electrical wiring are outside the scope of this guide.
Bobbin Fill and Twin-Needle Setting Examples
The winding instructions give a bobbin fill target of about 1/32 in. (1 mm) below the rim to avoid overfilling.
For zigzag and decorative pattern stitching with the No. 90 twin needles listed in the accessory chart, the maximum width-dial setting depends on needle spacing. The chart gives a maximum of 2.5 at 2 mm, 1.5 at 3 mm, and 0 at 4 mm.
