Yamaha YZ450FR / YZ450F / YZ450F(R) 2003 Owner's Service Manual (P/N LIT-11626-16-38, 5TA-28199-10)

Yamaha’s factory Owner’s Service Manual (P/N LIT-11626-16-38, 5TA-28199-10) covers the 2003 YZ450FR for the USA, YZ450F for Europe, and YZ450F(R) for Canada, Australia, New Zealand, and South Africa.

Search, Bookmarks, and Wiring Detail

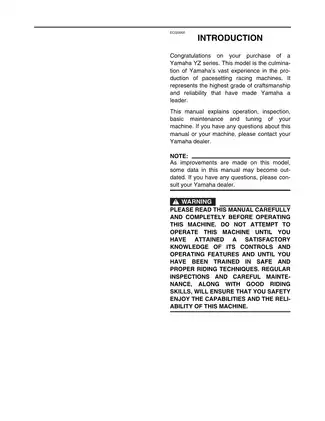

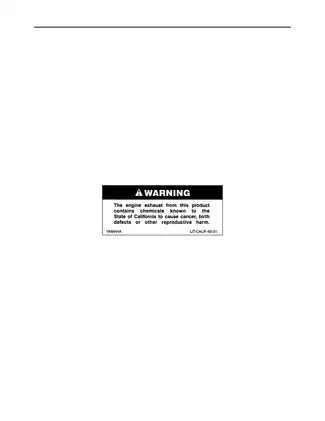

Text search and navigation: Search the service chapters or use the bookmarks to open any of the seven chapters, the contents, or the wiring diagram. The warning and warranty pages are image-only. Zoom in to read the smallest connector labels and wire color codes clearly.

The download is one printable English PDF with 300 pages, including the original cover and front matter.

Race Maintenance, Engine Overhaul, and Chassis Service

The topics below are selected highlights. The manual also covers radiator-cap pressure testing and hot-starter lever adjustment.

• Race maintenance: Starting and break-in, pre-operation checks, and race-based inspection and lubrication schedules, with oil and filter service and routine chassis adjustments.

• Engine overhaul: Camshaft timing, cylinder-head and valve work, piston and cylinder inspection, clutch service, oil and water pumps, and crankcase, crankshaft, and transmission repair.

• Carburetor service: Keihin carburetor disassembly, float and jet inspection, accelerator-pump and starter-circuit service, reassembly, and jetting guidance for changing atmospheric conditions.

• Chassis service: Wheel and bearing inspection, front and rear brake overhaul and bleeding, fork disassembly and reassembly, steering-head service, and swingarm and linkage inspection.

• Ignition diagnosis: Wiring diagram, map-controlled CDI, no-spark troubleshooting, ignition coil and CDI magneto tests, neutral-switch checks, and throttle position sensor testing and adjustment.

• Track setup: Final-drive sprocket selection and symptom-based front-fork and rear-shock setup charts covering spring selection, preload, and compression and rebound damping.

The workshop procedures suit experienced owners and mechanics who use precision measuring tools, torque tools, and electrical test equipment. For this closed-course competition model, the maintenance schedule follows break-in and race use.

Regional Setup Differences

Yamaha specifies different oil recommendations for the USA and Canada, a separate fuel specification for South Africa, and European differences in final-drive gearing, chain setup, tire fitment, and rear-shock spring dimensions. The cable-routing diagrams identify the decompression cable as supplied for Europe and optional in the other markets. Use these distinctions when checking replacement parts or restoring the original setup.

Engine and Transmission Repair

Exploded views and job charts show disassembly order and lead into inspection criteria, wear limits, tightening specifications, and final adjustments. The manual covers engine removal, crankcase separation, the balancer, kick axle, shift shaft, shift cam, and shift forks. Lubrication diagrams trace the oil paths through the engine.

The valve section covers guide replacement and reaming, seat contact checks, and spring inspection. The valve-pad charts use the measured cold clearance and installed pad size to select a replacement pad. Camshaft instructions flag the risk of damage from uneven cap removal or tightening and the risk of damage or incorrect valve timing if the crankshaft turns during installation.

Brake, Fork, and Rear-Shock Work

Brake procedures cover caliper and master-cylinder disassembly, piston and seal replacement, hose orientation, fluid replacement, bleeding, and leak checks. Front-fork service includes tube and damper-rod disassembly, seal replacement, oil filling, and air bleeding. Yamaha warns that the damper rod can drop and damage the internal valve if the inner tube is held vertically during installation.

Rear-shock coverage includes removal, spring and bearing service, inspection, preload and damping adjustment, and complete assembly replacement. Yamaha directs replacement of the assembly if it leaks oil or gas and prohibits disassembly of the nitrogen-charged cylinder or reservoir.

CDI and Throttle Position Sensor Checks

The no-spark flowchart uses the wiring diagram to guide checks of the engine-stop switch, spark plug, ignition coil, CDI magneto, and neutral switch. The TPS procedures cover resistance, replacement, output-voltage adjustment, and input-voltage checks. A three-dimensional ignition timing map illustrates how the CDI responds to engine speed and throttle position.

The special-tool lists give regional part numbers, including the crankcase separator YU-1135-A / 90890-01135, flywheel puller YM-1189 / 90890-01189, fork damper-rod holder YM-1423 / 90890-01423, fork seal driver YM-01442 / 90890-01442, and Yamaha pocket tester YU-3112-C / 90890-03112.

Selected Valve, Cylinder Head, and Crankshaft Specifications

Cold valve clearance is 0.10–0.15 mm on the intake side and 0.20–0.25 mm on the exhaust side. The cylinder-head bolt sequence specifies a final 180° turn after the prescribed torque stages.

The crankshaft inspection table lists 0.03 mm as the standard runout and 0.05 mm as the service limit.
