Honda Element 2003–2008 Repair & Owner’s Manual Set (P/N 31SCV6410)

The workshop files provide component-level repair and fault diagnosis, while the owner’s booklet adds vehicle controls, Maintenance Minder information, routine care, and roadside checks.

The owner’s booklet does not extend the workshop coverage to 2007–2008. Workshop applications include DX/LX models and separate 2WD and 4WD procedures.

HVAC coverage is a partial diagnostic chapter, not a complete A/C repair section. Some referenced illustrations are missing from the automatic-transmission and HVAC files.

Text Search, Wiring Detail, and File Contents

Search and diagram access: The owner’s manual supports PDF text search; the 40 technical PDFs do not. None of the PDFs has embedded bookmarks. Small wiring-diagram labels require zooming.

The ZIP download contains 41 printable PDFs totaling 2,490 pages. Individual files include automatic transmission (271 pages), manual transmission (243), ABS (52), wiring diagrams (100), and the electrical component locator (70). The total includes the owner’s manual’s cover, eight blank pages and two publication-ordering pages, plus a heading-only opening page and a blank final page in the wiring file.

Engine Rebuilding, Gearbox Service, and ABS Diagnosis

The following selected workshop topics show the repair coverage; other included jobs range from cabin-filter replacement to cruise-control actuator tests.

• Engine repair: Step-by-step procedures for engine removal, compression testing, cam-chain service, cylinder-head rebuilding, and crankshaft, piston, and bearing inspection.

• Automatic transmission: Road, stall-speed, and hydraulic pressure tests, solenoid testing, removal and installation, and internal clutch and valve-body service.

• Manual transmission and transfer: Shaft disassembly, synchronizer inspection, thrust-clearance adjustment, and transfer-assembly overhaul for the documented drivetrain configurations.

• Brakes and ABS: ABS diagnosis and modulator replacement, disc-caliper overhaul, booster testing, parking-brake adjustment, and hydraulic bleeding.

• Steering and suspension: Pump pressure testing, steering-gearbox overhaul, rack-guide adjustment, wheel-bearing replacement, and damper/spring service.

• Electrical diagnosis: System wiring diagrams, component-location references, connector tests, and separate charging, starting, power-window, and door-lock sections.

• Service specifications: Torque and fluid data, shim-selection tables, backlash and bearing-preload references, wear limits, and electrical test values.

The workshop files suit experienced technicians equipped for HDS diagnosis and internal component work; the owner’s booklet addresses routine vehicle operation and maintenance.

ABS and Automatic-Transmission Fault Tracing

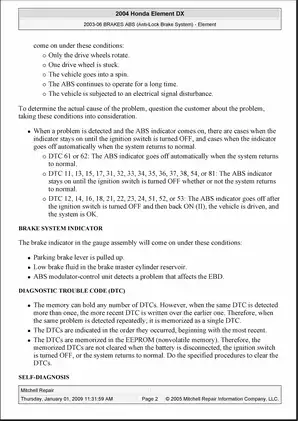

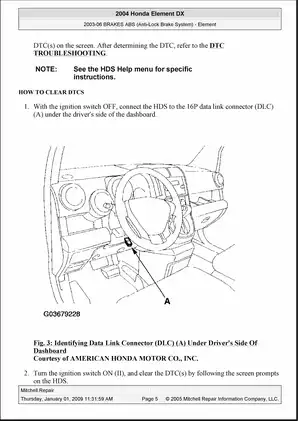

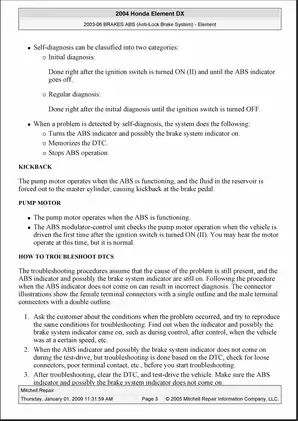

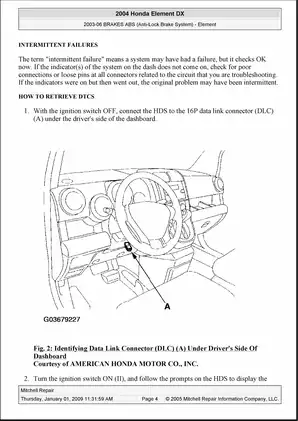

ABS checks: The brake material explains electronic brake distribution and retrieving and clearing trouble codes with the Honda Diagnostic System (HDS). The modulator-control unit’s 47P connector input/output chart supports circuit checks, with separate fault trees for wheel sensors, pump-motor operation, and warning indicators.

Front and rear wheel-bearing notes identify a specific repair risk: careless handling during installation can damage the magnetic encoder surface.

Always follow standard shop safety practices and verify the applicable brake specifications before operating the vehicle.

Transmission diagnosis: The automatic-transmission text explains the triple-shaft architecture, hydraulic control circuits, and power flow through P, R, N, and D. It also details grade logic control, shift-solenoid operation, and torque-converter lock-up.

HDS freeze-data checks and symptom-based diagnosis help distinguish electrical faults from clutch-pressure and mechanical problems. Further procedures address ATF cooler cleaning, shift-cable adjustment, and shift/key interlocks.

Year-specific clutch-stack layouts and transfer-bearing preload references distinguish 2003–2004 from 2005–2006 applications.

Cylinder Head, Valve Timing, and Bottom-End Repair

Cylinder-head work includes VTEC rocker-arm testing, VTC actuator inspection, valve-clearance adjustment, valve-guide replacement, and valve-seat reconditioning. Cylinder Head Components views identify the cam-chain guides, tensioner, and related hardware.

Bottom-end chapters cover bearing selection, piston-ring replacement, oil-pump overhaul, and balancer-shaft inspection. Cooling-system material adds radiator and thermostat tests and water-pump replacement.

Fuel Delivery and EVAP Testing

Fuel-system diagnosis includes fuel-pressure testing and PGM-FI fuel-pump circuit checks. EVAP procedures address leak detection, the fuel-tank pressure sensor, purge valve, and canister vent shut valve, with separate fuel-tank pressure sensor fault procedures for 2003–2004 and 2005–2006.

The EVAP section identifies vacuum/pressure gauge 07JAZ-001000B and warns that excessive test pressure or vacuum can damage EVAP components or the fuel tank.

Manual Gearbox and Real-Time 4WD Service

The manual-transmission Mainshaft exploded view accompanies shaft and synchronizer procedures. Its special-tool references identify Mainshaft Inspection Tool Set 07GAJ-PG20102.

The Real-time 4WD Dual Pump System chapter explains rear-drive engagement, provides function tests for automatic and manual models, and covers differential disassembly and reassembly. Its Hydraulic Control System diagram identifies the front and rear pumps, clutch piston, thermal switch, and relief valve.

Wiring, Body Equipment, and Interior Access

The 2004 wiring file includes Manual A/C Circuit and 2.4L Engine Performance Circuit diagrams, alongside power and ground distribution. The matching component locator identifies relays, control units, connectors, and grounds for circuit tracing.

Body-electrical procedures include power-window control-unit resetting and keyless-transmitter programming. Keyless-entry coverage distinguishes 2004–2006 EX and 2006 EX-P equipment.

Dashboard, seat, headliner, and interior-trim removal procedures address access work. The frame section provides subframe replacement information and frame repair charts.

Heater and A/C diagnosis: The HVAC excerpt covers heater-panel self-diagnosis and selected air-mix, mode-control, blower, and evaporator-sensor faults.

Selected Cold Valve-Clearance Settings

The valve-adjustment section specifies intake clearance of 0.21–0.25 mm (0.008–0.010 in.) and exhaust clearance of 0.28–0.32 mm (0.011–0.013 in.), with cylinder-head temperature below 100°F (38°C).
