Honda Prelude 1991–1996 Factory Service & Repair Manual
1,407 Pages • ZIP Download: 1 Printable PDF • 34.68 MB
Honda Models Covered & Key Technical Specifications
Models: Prelude S, Prelude Si, Prelude Si 4WS, Prelude Si VTEC, Prelude SR, Prelude SR 4WS, Prelude SR-V

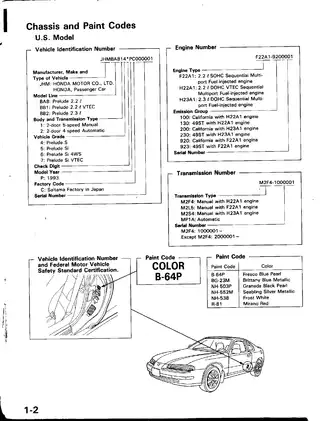

Sub-models / Variants: 2-door 5-speed Manual (M2L5: F22A1; M2S4: H23A1; M2F4: H22A1), 2-door 4-speed Automatic (MP1A: F22A1/H23A1), 4WS (Four Wheel Steering; BB2/H23A1), VTEC (BB1/H22A1), 2.2L SOHC (BA8/F22A1), 2.3L DOHC (BB2/H23A1)
Model Years: 1991–1996 (1991, 1992, 1993, 1994, 1995, 1996)

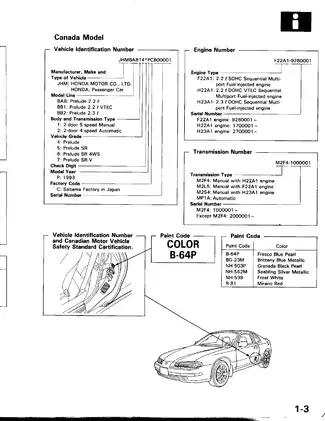

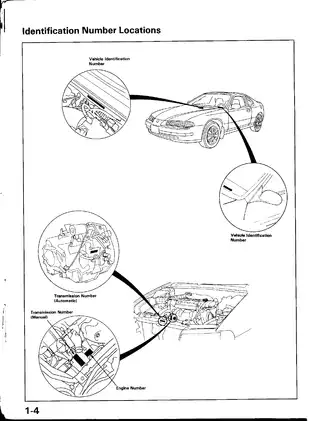

Serial Numbers: Canadian engines: F22A1 engine: 9280001–, H22A1 engine: 1700001–, H23A1 engine: 2700001–; transmissions: M2F4: 1000001–, M2L5/M2S4/MP1A: 2000001–
-
Engine displacement: 2,156 cc (F22A1), 2,259 cc (H23A1), 2,157 cc (H22A1)
-
Engine types: SOHC 4-cylinder (F22A1), DOHC 4-cylinder (H23A1), DOHC VTEC 4-cylinder (H22A1)
-
Compression ratio: 8.8:1 (F22A1), 9.8:1 (H23A1), 10.0:1 (H22A1)
-
Transmission types: 5-speed manual, 4-speed automatic
-
Valvetrain: Belt-driven DOHC/SOHC 4-valve per cylinder
Honda Manual Features & Selected Content Preview
This factory service manual from Honda Motor Co., Ltd., Service Publication Office, is First Edition 9/92. It covers 1993 U.S. and Canadian Prelude configurations, including 4WS and VTEC models.
PDF Search, Diagram Detail and File Contents
Search and diagram access: OCR text search is partial; portions of the body, HVAC, ignition and charging sections have no searchable text. There are no embedded PDF bookmarks. Small wiring labels require zooming.
The ZIP download contains one printable, 1,407-page PDF and an HTML readme. The introductory page and section dividers are included in the total.
Engine Overhaul, Transaxle Repair and 4WS Diagnosis
These selected coverage highlights outline the main workshop areas rather than the full contents. Further topics include sunroof troubleshooting and cruise-control actuator testing.
-
Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head work, valve-train inspection, timing and balancer belts, and internal engine repair.
-
Fuel and emissions: PGM-FI/ECM troubleshooting, no-start diagnosis, fuel-pressure testing, injector checks, idle-control faults, and EGR/EVAP system diagnosis.
-
Clutch and transaxles: Clutch service, manual-transmission disassembly, automatic-transaxle hydraulic testing and overhaul, differential inspection, and driveshaft repair.
-
Steering systems: Conventional 2WS and electronically controlled power-assisted 4WS diagnosis, pump-pressure testing, rear-actuator repair, and steering-angle sensor adjustment.
-
Suspension and brakes: Wheel alignment, hub and bearing service, damper inspection, caliper overhaul, conventional brake bleeding, and ABS fault tracing.
-
Body and HVAC: Dashboard, door and glass service, frame repair charts, heater-control diagnosis, and R-134a A/C testing and compressor-clutch service.
-
Electrical and SRS: Wiring diagrams, connector views, starter and charging-system tests, symptom charts, and configuration-specific airbag diagnosis and replacement information.
This manual is suited to technicians and experienced mechanics familiar with standard workshop practices and equipped for the diagnostic tests described.
Engine Configuration and Internal Repair
Separate F22A1, H23A1 and H22A1 procedures help match inspections, service limits and tooling to the engine before disassembly. Internal repair coverage extends to pistons, connecting rods, the crankshaft, oil pump and oil jets, alongside cooling and intake/exhaust service.
The H22A1 material adds the VTEC rocker-arm mechanism, VTEC control system and camshaft inspection, with tooling such as the 07LAJ-PR3020A Air Stopper. VTEC control-system and engine oil-flow diagrams explain the relationship between oil supply and valve-train operation.
The manual’s cautions address FRM-liner damage from incorrect honing on H23A1/H22A1 engines, along with H22A1 auto-tensioner problems caused by gripping its housing or losing its oil.
Manual and Automatic Transaxle Overhaul
Manual-transmission repair includes mainshaft and countershaft work, gear and synchro inspection, shift-fork clearances, bearing service, and differential backlash and preload.
Automatic-transaxle repair data applies to F22A1 and H23A1 applications. Hydraulic-flow diagrams by operating range accompany line and clutch pressure tests, road and stall tests, clutch-pack inspection, and oil-pump, valve-body, shaft and final-drive work.
Honda specifies the 07406-0020003 A/T Oil Pressure Gauge Set and J38405-A Transmission Cooler Flusher. The assembly cautions explain how valve-body/housing misalignment can seize the oil pump and how an excessively deep main seal can obstruct the oil-return passage.
4WS Adjustment and ABS Fault Tracing
The 4WS material adds control-unit terminal checks, diagnostic trouble codes, front and rear steering-angle sensor checks, and system inspection after steering or suspension work. The Power Steering Fluid Flow Diagram and 4WS Circuit Diagram connect hydraulic operation with electrical diagnosis.
Specified equipment includes the 07NAJ-SS0020A Rear Steering Center Lock Pin and 07406-0010001 P/S Pressure Gauge. ABS coverage addresses the modulator, accumulator, wheel sensors and fail-safe circuits, with DTC flowcharts and 07HAJ-SG0010A/SG0010B ALB Checker tests.
Body, Heater and R-134a Air Conditioning
Body information covers dashboard removal, doors, glass, bumpers and seat belts, with frame-measurement and repair charts. Heater diagnosis includes the blower and mode/recirculation control motors.
The A/C Circuit Diagram supports fan and compressor-circuit troubleshooting. Refrigerant procedures cover recovery, evacuation, charging, leak testing and pressure diagnosis, plus Sanden scroll-type compressor and clutch service using SP-10 PAG oil, P/N 38899-P13-003.
Electrical Diagnosis and Airbag Configurations
The Starting System Circuit Diagram is supported by component-location indexes, connector views and circuit schematics. Electrical coverage also includes charging-system diagnosis and component tests.
The Prelude has a driver’s airbag; U.S. Si 4WS/Si VTEC and Canadian SR 4WS/SR-V models also have a front passenger airbag. Yellow SRS harnesses require the manual’s special precautions and must not be checked with ordinary electrical test equipment.
Hydraulic, SRS, ABS, steering, A/C and drivetrain work requires the precautions and specified equipment described in the applicable procedures, particularly around stored pressure, refrigerant and supplemental-restraint components.
Selected Compression, Clearance and Pressure Specifications
At 250 rpm with the throttle wide open, nominal compression is 1,250 kPa for F22A1/H23A1 engines and 1,300 kPa for the H22A1. H22A1 camshaft-to-holder oil clearance is 0.050–0.089 mm when new, with a 0.15 mm service limit.
The power-steering pump-pressure test specifies 7,000–8,000 kPa with the fluid at operating temperature. R-134a charging data specifies 650 g with a +0/−50 g tolerance.
Other component-specific references include torque tables, belt-tension data, coolant capacities, clutch clearances, differential preload, electrical test values, and engine-specific automatic-transmission pressure tables.
