2006 Cadillac CTS / CTS-V Service Manual (P/N 06CTS A)

• Model and powertrain coverage: 2006 Cadillac CTS service information for the 2.8L LP1 and 3.6L LY7 V-6 engines, plus CTS-V coverage for the 6.0L LS2 V-8 (VIN U), with procedures that distinguish automatic- and manual-transmission installations where required.

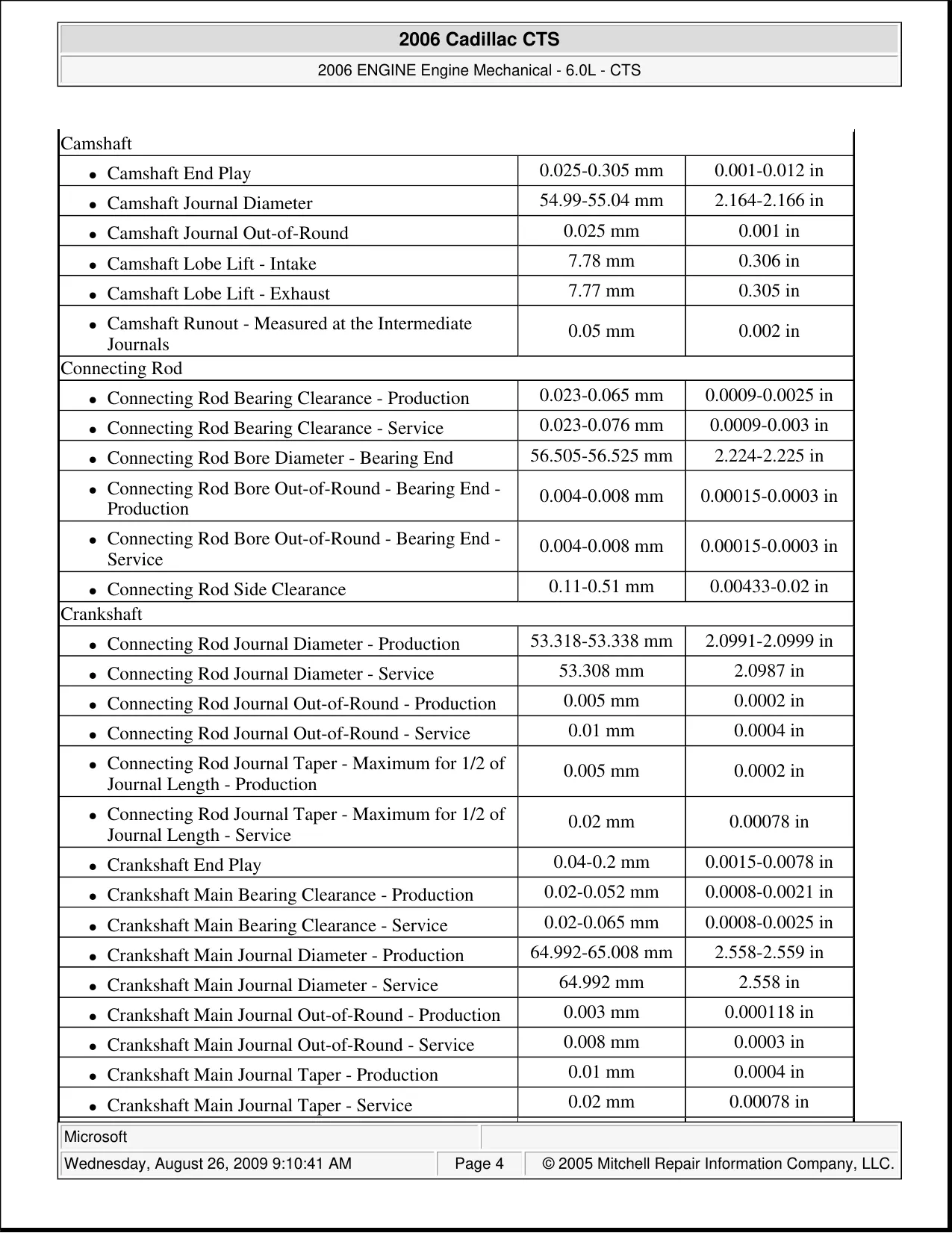

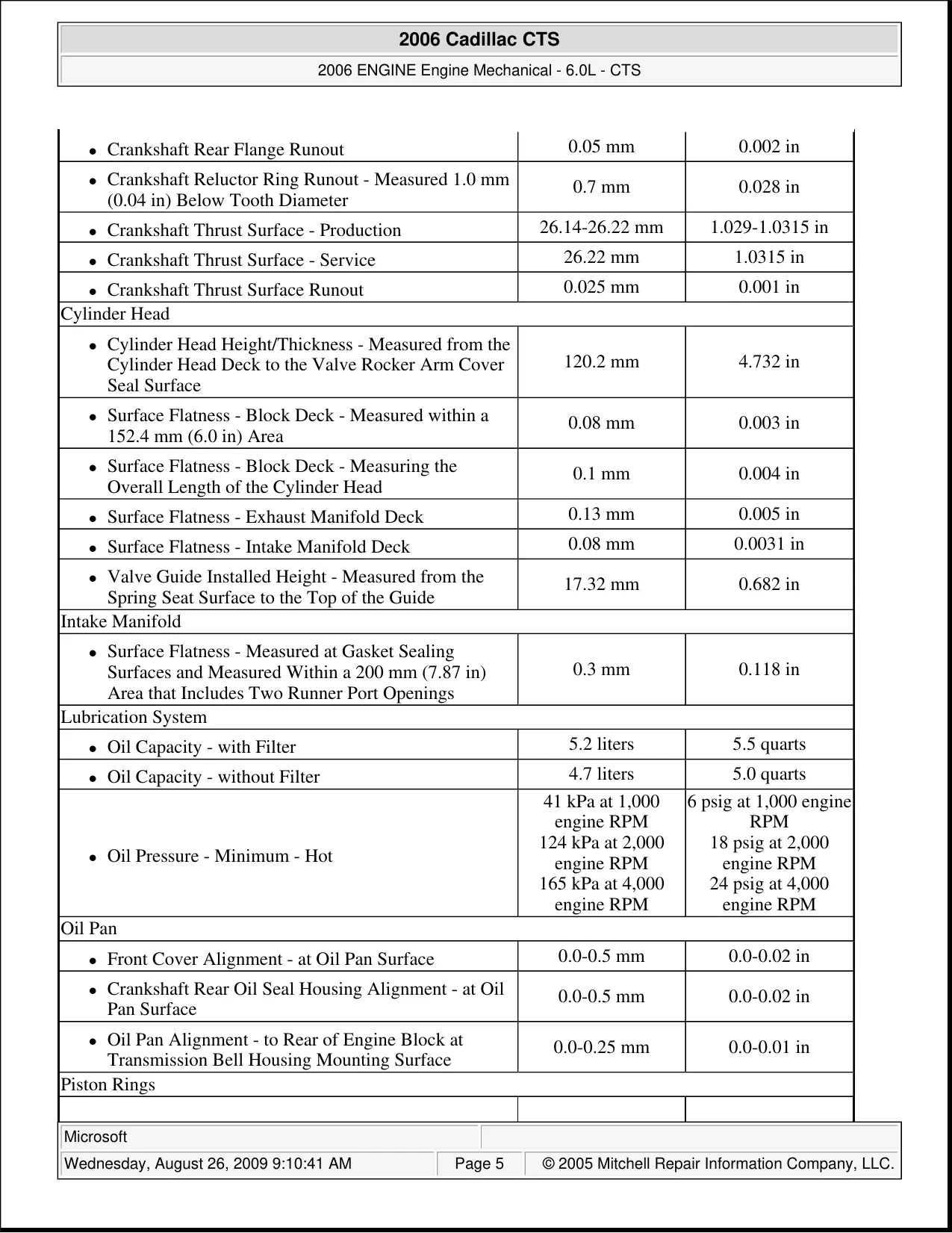

• Engine repair depth: Includes engine removal, complete teardown and assembly, cylinder-head and valve service, piston/rod and crankshaft inspection, oil-pump work, camshaft timing, leak and compression testing, and engine-specific torque, clearance, wear, and fluid data.
• Transmission and driveline work: Covers internal disassembly, inspection, reassembly, and shimming of the Aisin AY6 and Tremec 6-speed manual transmissions, along with clutch hydraulics, propeller shafts, wheel drive shafts, rear axle setup, and limited-slip differential service. The 5L40-E/5L50-E automatic-transmission PDF is a troubleshooting section rather than a complete overhaul manual.
• Brake, steering, and suspension sections: Provides ABS/traction/stability diagnostics, manual, pressure, and automated brake bleeding, Brembo and standard disc-brake repair, rear-axle adjustment, power-steering pressure testing and bleeding, and FE1/FE3/FE4 suspension diagnosis.
• Electrical, HVAC, and body coverage: Supplies system wiring diagrams, connector views, component locations, scan-tool data, module programming/setup references, A/C testing and refrigerant service, plus repair procedures for doors, seats, roof, glass, wipers, lighting, instruments, audio, and navigation.
• 9,139 PDF pages in 65 files: 8,223 pages of 2006 service information in 61 PDFs; the 434-page 2006 CTS/CTS-V Owner Manual, Part No. 06CTS A; 47 pages of generic and GM trouble-code reference; and the separate 435-page 2003 CTS Owner's Manual, Part No. 25735664 A, included as an older-model extra.

The repair material is organized as system-specific Mitchell Repair Information PDF exports, supplemented by GM owner literature, rather than as a page-for-page scan of the bound paper manual set. It is suited to professional technicians and experienced owners who already understand vehicle repair and have access to the scan tools, lifting equipment, measuring instruments, and system-specific service equipment called for by the procedures.

Three Engine Families, Full Mechanical Repair Detail

The 2.8L LP1 and 3.6L LY7 sections each run from specifications and disassembled views through on-vehicle repair and full internal-engine work. Major procedures cover timing-chain guides and tensioners, camshaft position actuators, camshafts, stationary hydraulic lash adjusters, cylinder heads, pistons and connecting rods, crankshaft bearings, oil pump, front cover, oil pan, intake manifold, flywheel, and engine prelube. The LS2 chapter adds its own pushrod valvetrain, camshaft-bearing, cylinder-boring and honing, balancing, pilot-bearing, and complete short-block procedures.

For the V-6 engines, the material distinguishes the first-design roller primary timing chain from the second-design inverted-tooth system. It also explains the related oil-pump/lower-guide difference: the first-design lower guide is serviced with the oil pump, while the second-design guide is replaceable separately. Timing references include the Camshaft Timing Components Disassembled View - First Design, its second-design counterpart, and the two-stage Camshaft Timing Drive Chain Alignment Diagram.

Separate engine-control troubleshooting PDFs are included for the 2.8L and 6.0L engines. They cover hard starting, surging, hesitation, misfire, poor fuel economy, stalling, backfire, crank/no-start, fuel-pump circuits, fuel pressure, injector coil and balance tests, tank-leak testing, electronic ignition, and catalyst/EVAP/oxygen-sensor I/M readiness procedures. Intermittent-fault guidance addresses harness movement, grounds, temperature sensitivity, and EMI from relays, solenoids, motors, and add-on accessories. A dedicated 3.6L engine-control diagnostic chapter is not part of this package.

Drivetrain and Chassis Procedures

The Aisin AY6 and Tremec 6-speed chapters go well beyond removal and installation. They document shaft, gear, bearing, synchronizer, shift-rail, fork, case, and extension-housing repair, with retaining-ring or shim selection and final assembly checks. Rear-drive-axle work includes pinion depth, side-bearing preload, ring-and-pinion backlash, gear-contact inspection, and limited-slip differential disassembly and assembly.

Brake coverage separates JL9 16-inch, JE5 17-inch, and J56 Brembo hardware where procedures differ. Rotor measurement and runout correction, caliper overhaul, hydraulic diagnosis, master-cylinder bench bleeding, ABS automated bleeding, brake pressure modulator service, and yaw-rate/lateral-accelerometer replacement are included. Steering and suspension material covers wheel hubs, control arms, shock modules, springs, trim-height diagnosis, rack-and-pinion service, steering-wheel-position sensor centering, and FE3/FE4 cooler arrangements.

Wiring, Controls, and Shop References

The 191-page wiring PDF is organized by system rather than as a single undivided schematic. Examples include Power Distribution, Ground Distribution, Computer Data Lines, Supplemental Restraints, Engine Performance - 2.8L VIN T, and Engine Performance - 6.0L VIN U. An 86-page component-location guide maps relays, fuses, control units, motors, sensors, solenoids, connectors, grounds, and splices. Other sections provide ABS and HVAC connector end views, body-control and data-link schematics, Tech 2 test routines, and SPS programming/setup references for the ECM, TCM, BCM, EBCM, radio, HVAC, doors, seats, roof, theft-deterrent, and restraint modules.

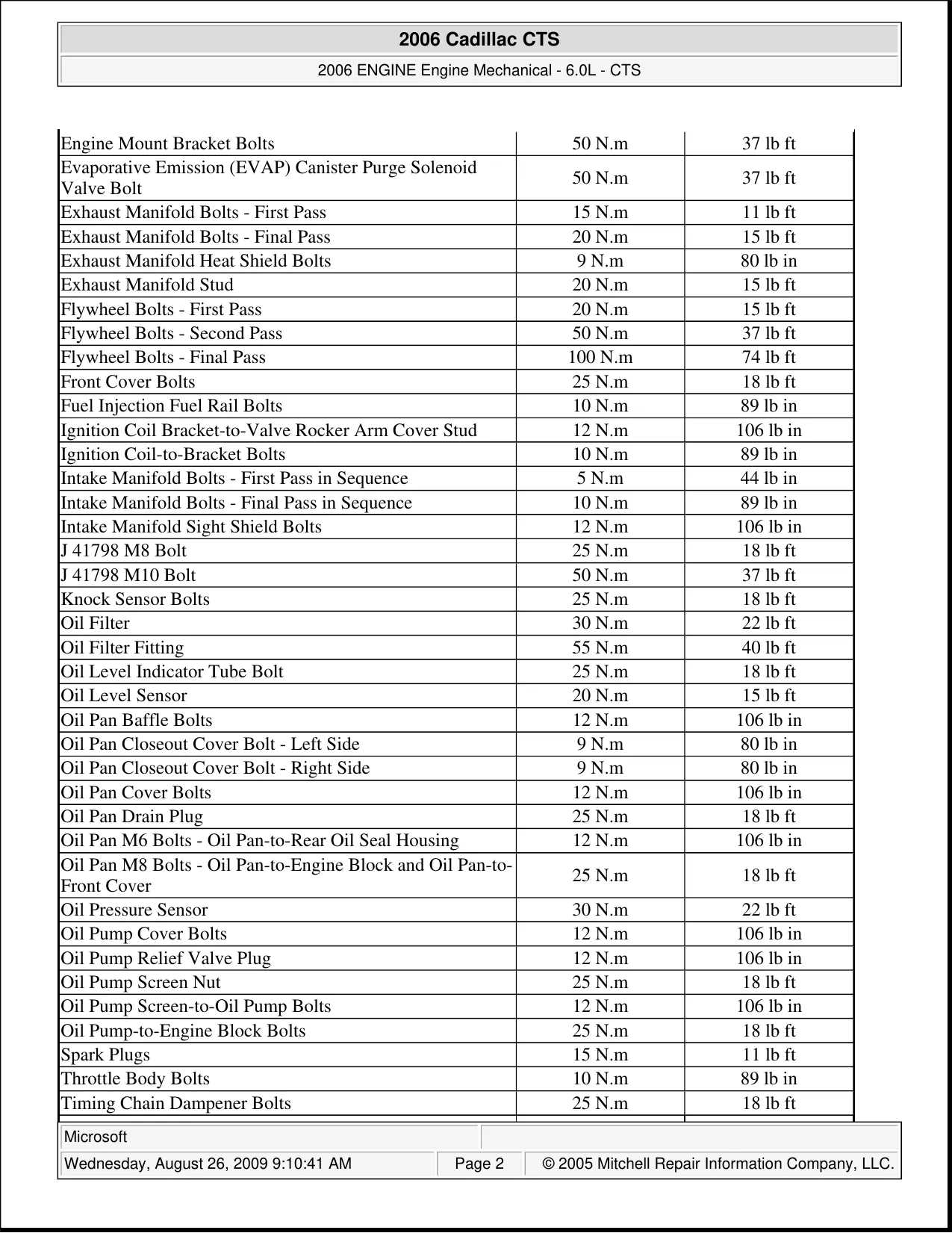

The engine chapters identify special tools such as the EN 46105 camshaft locking tool, EN 46108 timing-chain retention tool, J 26792 spark tester, J 42385-700 thread-repair kit, J 43690 rod-bearing clearance tool, and J 45299 engine preluber. Component-specific torque tables, pressure-test specifications, capacities, approved materials, wear limits, electrical test values, and adjustment data appear with the related repair sections.

Several cautions matter during internal repair. The manual warns that overcompressing a valve spring can drive the retainer into the valve-stem seal and damage it, and a disassembled V-6 oil pump is for diagnosis only and must not be reused. Engine lifting, fuel and brake pressure work, SIR circuits, and refrigerant service require the prescribed support, isolation, recovery equipment, and personal protection.
