Cadillac SRX 2004–2008 Service & Repair Manual Collection

The repair chapters provide system-specific procedures, while the wiring volumes support circuit tracing and the owner manuals explain controls, routine care, and maintenance.

Coverage varies by year. The 2004 material has the deepest mechanical repair coverage. The 2005 and 2006 groups contain owner manuals and selected repair chapters; the 2007 engine files focus on specifications and troubleshooting. The 2008 reference appears in the background sheet, without a dedicated 2008 repair volume.

PDF Search, Bookmarks, and File Contents

Search and wiring detail: Most repair chapters and both owner manuals contain searchable text. Twenty PDFs have no searchable text, including the 2004 and 2005 wiring volumes. In the 2007 wiring PDF, headings and captions are searchable, but diagram labels are not. Embedded bookmarks are provided only in the two owner manuals. Small labels in the sampled wiring diagrams require zooming.

The ZIP download contains 121 printable PDFs totaling 13,835 pages, including 10 notes pages, one nontechnical notice page, and the background sheet listed above. Some exhaust-service content overlaps between files.

Engine, Driveline, and Electrical Service Coverage

The following is a selection of included topics, rather than a complete contents list. Other examples include horn diagnosis and garage-door-opener programming.

• Engine repair: LY7 V6 and LH2 V8 engine removal, cylinder-head and valvetrain work, internal overhaul, and RWD/AWD-specific operations.

• Transmission and driveline: 5L40-E/5L50-E diagnosis and overhaul, BW 4476 transfer-case service, propeller shafts, and CV-joint repair.

• Brakes and stability control: ABS diagnosis, disc and parking brakes, hydraulic-system testing, manual bleeding, and scan-tool automated bleeding.

• Steering and suspension: Power-steering bleeding, electronic suspension control, automatic level control, suspension-position calibration, wheel bearings, and tire-pressure-sensor learning.

• Electrical fault tracing: System wiring diagrams, power and ground distribution, serial-data networks, component locations, connector end views, and circuit identifiers.

• Body and comfort systems: HVAC, airbags, lighting, doors and liftgate, seats and memory functions, instrument panel, roof and sunroof, and entertainment/navigation.

The service procedures are suited to professional technicians and advanced DIY owners with scan-tool, electrical-test, lifting, and special-tool capability; internal engine and transmission repair, supplemental restraint, and A/C work assume workshop-level equipment.

Engine and Driveline Repair Depth

The 2004 engine sections provide step-by-step procedures for primary and secondary timing-chain service, internal disassembly, cleaning, inspection, and reassembly. Lubrication and cooling information accompanies the mechanical work, with torque tables, fastener sequences, fluid capacities, wear limits, and component inspection criteria.

Transmission coverage extends to clutch packs, sprags, the fluid pump, valve bodies, and pressure testing. Rear-differential procedures include pinion-depth, backlash, and bearing-preload adjustment; front-axle information addresses diagnosis, seals, and related service.

Separate repair excerpts cover drive belts, timing chains and guides, the timing cover, rear shock components, front brakes, front wheel-bearing replacement, fluid service, fuel and EVAP filters, and vehicle lifting. These excerpts provide individual procedures rather than a complete engine or transmission overhaul volume.

Wiring and Diagnostic Detail

Named schematic sets include Power Distribution, Computer Data Lines, LY7/VIN 7 Engine Performance, LH2/VIN A Engine Performance, Electronic Suspension, and Memory Seat circuits.

System-specific chapters add DTC charts, scan-tool data lists, module connector views, splice locations, verification tests, relearn routines, and programming/setup references. Circuit identifiers and connector end views let a technician trace the power, ground, or signal circuit identified by a diagnostic chart.

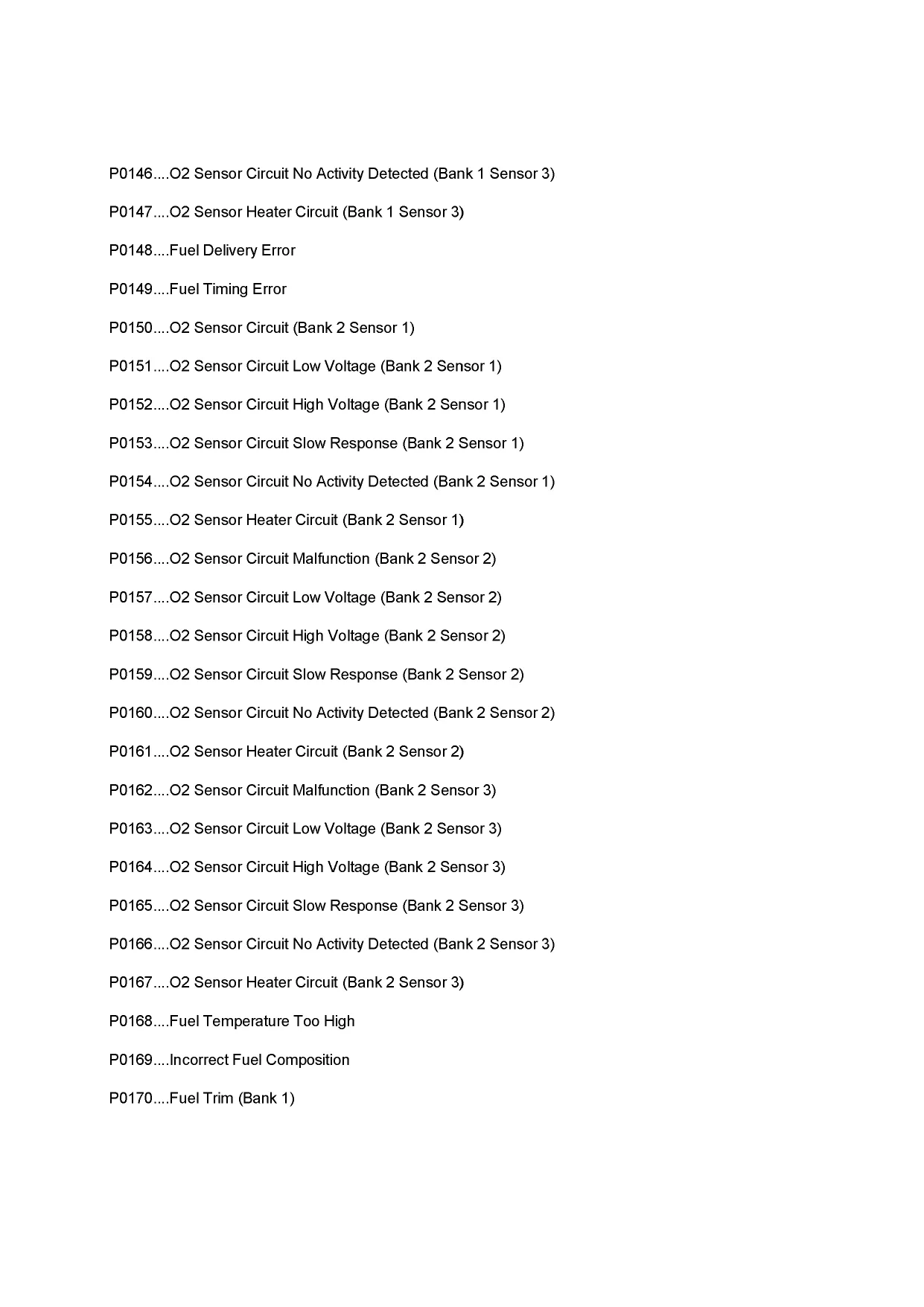

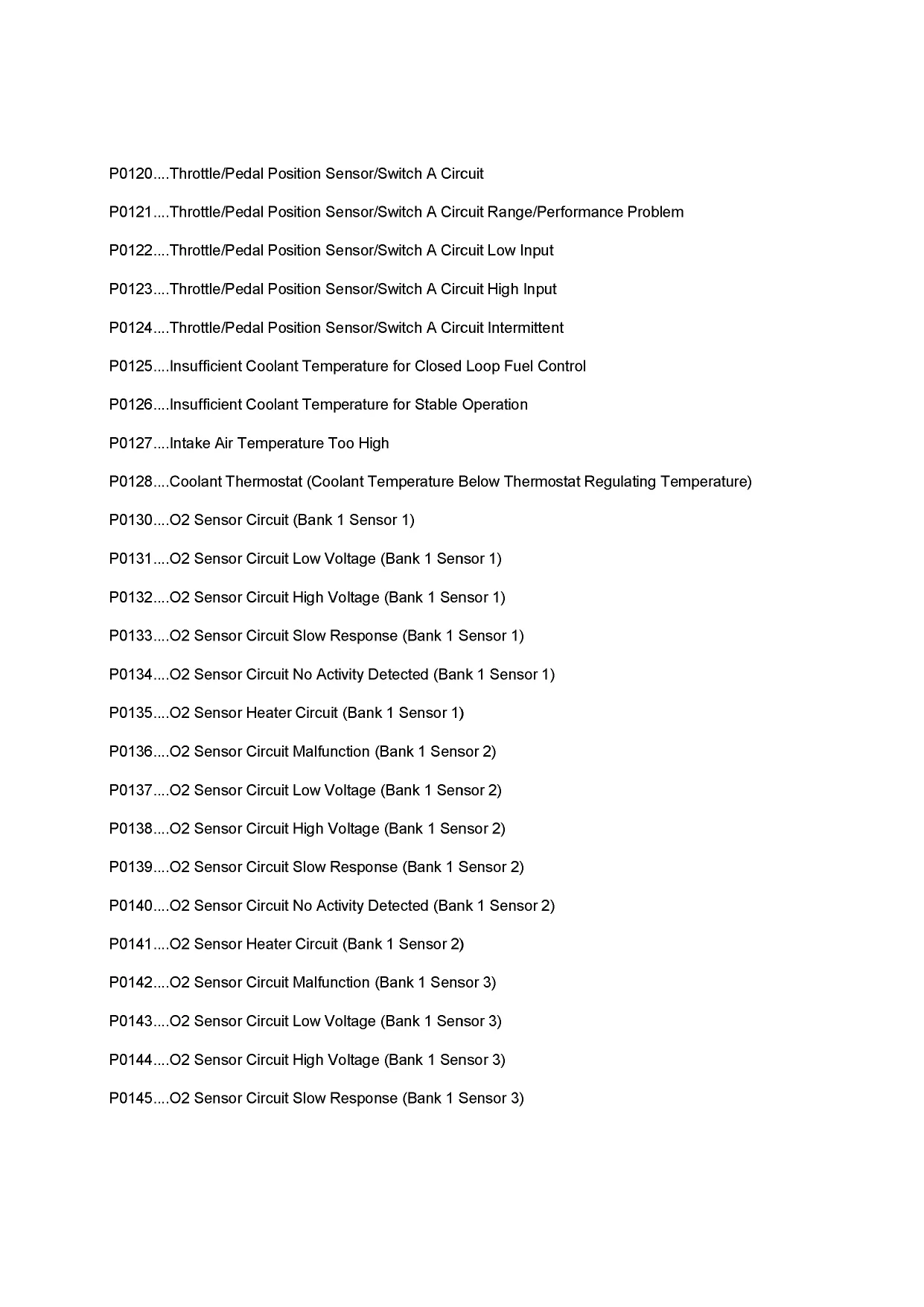

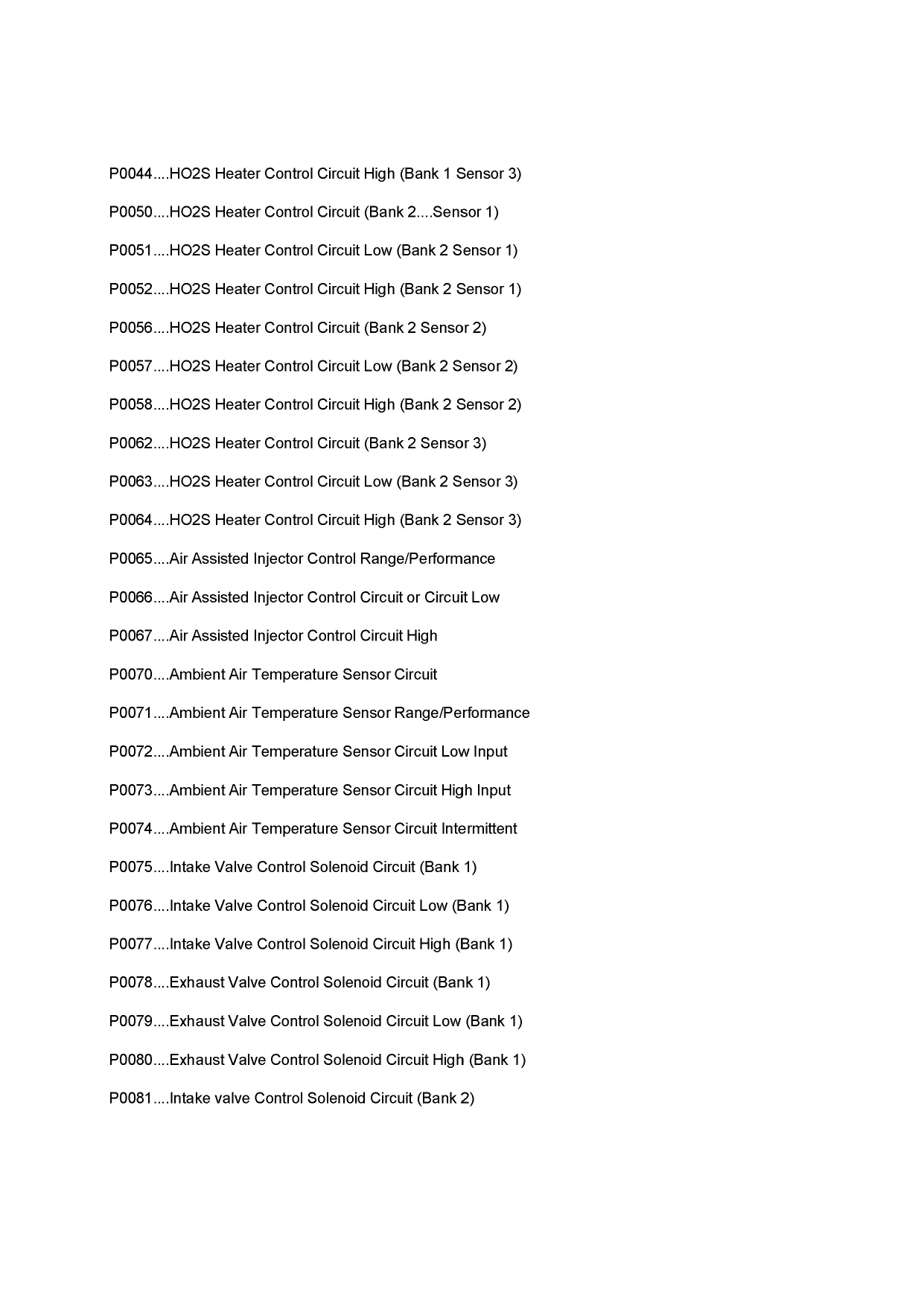

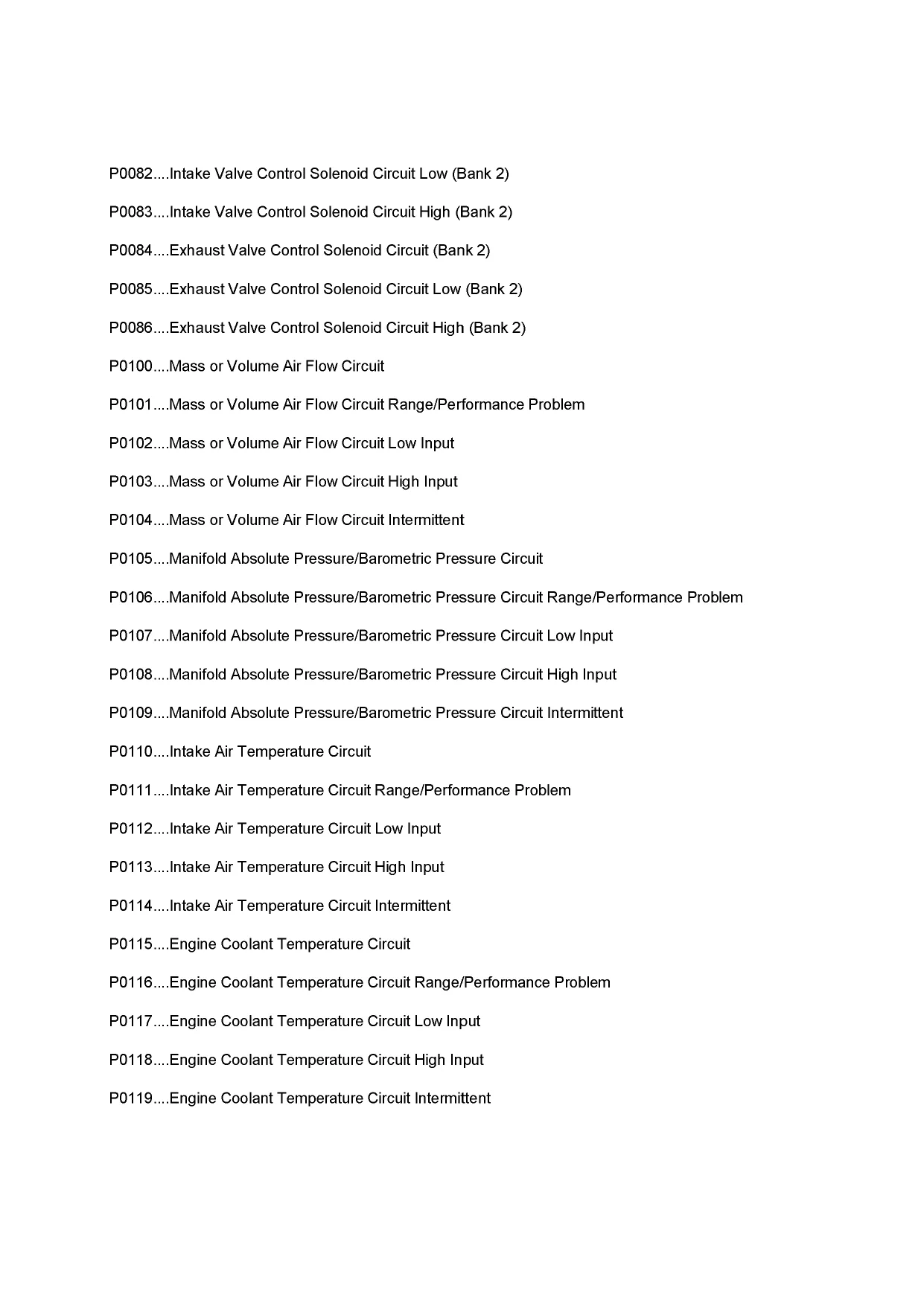

The generic and GM code lists explain code meanings; the 2007 DTC index points to system procedures. Diagnostic depth depends on the chapters included for the affected system.

Special-tool references include the EN 46105 camshaft locking tool, EN 46114 engine lift brackets, J 39700 universal pinout box, and J 44765/J 44766 transmission seal installers.

HVAC, Body Systems, and Repair Cautions

HVAC coverage distinguishes standard and heavy-duty cooling configurations and includes A/C performance testing, leak diagnosis, refrigerant recovery, and component replacement. Additional body-system chapters address rear parking assist, wipers, defoggers, and keyless entry.

The LY7 cylinder-head inspection section warns against machining scored camshaft-bearing journals; damaged journals require cylinder-head replacement. The transmission instructions also warn that incorrect torque-converter or prop-shaft seal installation can damage the seals.

Before probing module circuits or beginning SIR, brake, or refrigerant-system work, follow the manual’s system-disable, bleeding, refrigerant-recovery, and vehicle-support precautions and use the specified diagnostic equipment.

Sample LY7 Bearing Clearance and End Play

The 2004 LY7 engine specifications list camshaft journal-to-bore clearance as 0.040–0.084 mm. Crankshaft end play is specified at 0.100–0.330 mm, alongside the dimensional data used for internal engine inspection.
