1997 Cadillac Catera Service Manual (P/N J9703507)

• Covers the 1997 Cadillac Catera equipped with the Bosch 2SH Anti-lock Brake System and Traction Control, including system operation, symptom diagnosis, and diagnostic trouble-code reference material.
• Details fault isolation for wheel-speed sensor problems, individual solenoid circuit malfunctions, abnormal system voltage, and other ABS/TCS warning indicators.

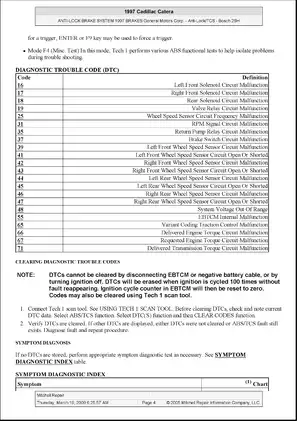

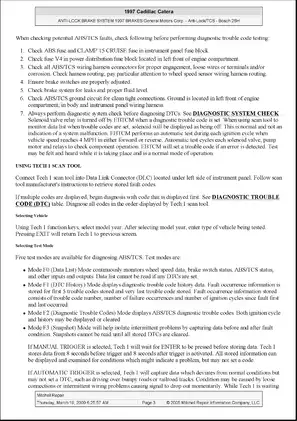

• Includes Tech 1 scan-tool diagnostic routines, system-specific electrical wiring schematics, and brake, suspension, and electrical component-location information.

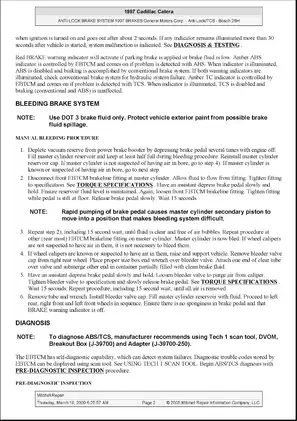

• Describes brake-system bleeding, power brake booster replacement, component testing, and the factory specifications needed for brake repair planning.
• Provides drive axle shaft removal, inspection, and overhaul coverage for both GKN and Delphi/Saginaw axle configurations, supported by exploded assembly views.
• Official General Motors Corporation OEM publication P/N J9703507, supplied as a PDF with 15 technical illustrations and factory reference data for the covered systems.

Bosch 2SH ABS and Traction Control Diagnosis

This General Motors service publication is written specifically for the Bosch 2SH ABS and Traction Control installation used in the 1997 Cadillac Catera. It explains how the system operates and organizes diagnosis around the symptoms and trouble codes a technician is likely to encounter during actual brake repair work.

Diagnostic coverage goes beyond a basic list of warning-lamp conditions. The manual addresses individual solenoid circuit faults, wheel-speed sensor problems, system voltage irregularities, and related ABS/TCS failure indications. A detailed diagnostic trouble-code reference supports fault isolation, while the Tech 1 material shows which factory scan-tool functions apply to this system.

Electrical coverage includes system-specific wiring schematics and component-location information. These references help trace the relationship between the Bosch control unit, sensors, solenoid circuits, power supplies, and associated brake-system components before parts are removed or replaced.

Brake Service and Factory Specifications

The brake sections cover hydraulic bleeding procedures, power brake booster replacement, component-specific troubleshooting, and the inspection information needed to evaluate serviceability. Rather than relying on generic brake data, the manual supplies factory specifications for the Catera’s front and rear brake assemblies.

Reference data includes brake disc dimensions, minimum refinishing limits, discard limits, front and rear wheel-hub nut torque specifications, and related inspection criteria. These specifications are useful when deciding whether a disc can be machined, whether a component must be replaced, and which tightening data applies during reassembly.

Braking, suspension, and electrical component-location illustrations also reduce ambiguity when diagnosing an unfamiliar vehicle. They show where the covered parts are positioned and how the ABS/TCS hardware relates to the surrounding chassis systems.

GKN and Delphi/Saginaw Drive Axle Coverage

A separate drive axle shaft section covers removal, inspection, and overhaul practices for the two axle designs identified in the publication: GKN and Delphi/Saginaw. This distinction matters when selecting repair information or replacement components, since procedures and internal parts should not be assumed to interchange between the two configurations.

Exploded-view axle shaft illustrations show component order and assembly relationships for repair planning. Before beginning axle work, the installed manufacturer configuration should be identified so the correct inspection and overhaul material is used.

Illustration coverage includes Bosch 2SH electrical schematics, ABS/TCS component locations, brake and suspension component-location drawings, and exploded views for the GKN and Delphi/Saginaw axle assemblies. In total, the publication contains 15 technical illustrations supporting its diagnostic and mechanical repair sections.

Because the procedures involve brake hydraulics, wheel hubs, and drive axle components, the vehicle must be properly lifted and securely supported before undercarriage inspection or repair begins. Standard brake-service precautions should also be followed during bleeding and booster work.
