Ducati 998RS & 998S 2002–2004 Workshop & Parts Manual Set (P/N 914.7.019.1F)

Use the workshop manuals for service and repair procedures and the matching parts catalog for exploded views, quantities and part numbers. Selecting the catalog by model, region and seat configuration helps identify the appropriate assemblies before ordering parts.

Coverage boundaries: The 998RS publication covers Model Year 2002, with a chassis chapter focused on race setup and troubleshooting. The 998R, MATRIX and Final Edition publications are parts catalogs. The separate RS-specific parts catalog referenced in the workshop foreword is not included.

PDF Search, Diagram Detail, and File Contents

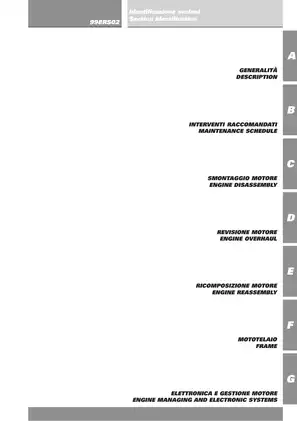

Search and wiring detail: The 998RS manual and parts catalogs support text search. Only the 998RS file has embedded section bookmarks; the 998S workshop file has neither text search nor bookmarks. Dense 998RS schematics need zooming for small labels. Some fine labels in the 998S diagrams are faint or blurred.

ZIP download containing 14 printable PDFs: two Italian/English workshop manuals and 12 parts-catalog files, the latter inside nested ZIPs. The 2,471-page total includes both copies of the 121-page USA 2002 catalog, original covers, dividers and blank pages, plus three supplier-directory pages in the RS manual. The 13 distinct publications contain 2,350 pages.

Engine Overhaul, Chassis Service, and Parts Identification

Selected topics include the work below, plus road-model headlight aiming and side-stand switch testing.

• Engine repair: Step-by-step disassembly/reassembly, crankcase work, crankshaft inspection and gearbox service, with separate race- and road-model procedures.

• Desmodromic heads: Valve and rocker-arm removal, opening/closing shim selection, valve-seat and guide service, camshaft inspection and timing verification.

• Race chassis: 998RS spring changes, suspension adjustment, ride-height checks, eccentric steering setup and track-handling troubleshooting.

• Road chassis: Fork overhaul, steering bearings, rear-hub and swingarm work, brake-system removal/installation, and brake/clutch hydraulic-fluid replacement.

• Fuel and electronics: 998RS MF3S diagnostics and calibration procedures, plus road-model fuel-pressure tests, throttle-body balancing and MATHESIS-based checks.

• Parts identification: Model- and region-specific exploded views, component descriptions, quantities and numerical part indexes, including separate mon/bip Final Edition catalogs.

• Factory references: Engine/frame torque tables, titanium-fastener instructions, thread preparation, safety wiring, lubricants, service intervals, inspection limits, clearances and illustrated special-tool lists.

Ducati specifies senior skilled technicians for these workshop procedures, with mechanical experience and the listed measuring, diagnostic and special tools.

998RS Engine Measurement and Assembly

Cylinder heads: The overhaul chapters address valve sealing, valve-pocket depth, valve-to-piston clearance and squish-height verification. The vertical-head rocker-arm and shaft assembly diagram supports the opening/closing shim and spring arrangements.

Timing work uses the Clavis Belt Tension Meter (041.1.014.1A), degree-wheel fixtures, piston-position and valve-lift gauges, and adjustable cam-pulley indexing.

Rotating assembly: The PANKL titanium connecting-rod procedures include a data record sheet, bearing-shell classes, crankpin-clearance calculations and rod-bolt stretch control using micrometer 88713.1781. Crankshaft alignment, crankcase shimming, gearbox-shaft and selector-drum shimming, and shift-fork inspection are covered separately.

Lubrication and drive: The lubrication circuit diagram traces the pump, bypass valve, cooler, piston-cooling feeds, crankshaft supply and cylinder-head oil passages. Separate chapters address alternator/flywheel and primary-drive work, oil/water-pump inspection and seal replacement, and anti-slip-clutch overhaul and troubleshooting.

Race Setup and Road Chassis Work

The 998RS setup material covers the Öhlins 9760 fork and DU 8471 rear shock, with preload/damping charts, steering-damper adjustment and rear-wheel hub care. Ride-height records and eccentric steering trail adjustment connect these settings with track-handling diagnosis.

The road manual limits front brake caliper/master-cylinder work to specified external service parts; internal overhaul is excluded. Rear-shock problems are referred to an Öhlins authorized service center.

MF3S, MATHESIS, and Wiring References

The 998RS Marelli I.A.W. alpha-N/MF3S sections cover the DENSO generator and engine sensors. Electric gear-lever calibration uses control unit 286.1.025.1A; throttle-position adjustment uses harness 510.1.232.1A. Gear-position sensor shimming and instrument-panel alarm procedures are also included.

MF3S instructions explain live sensor readings, diagnostic messages, coil/injector self-tests, ECU software loading and calibration-table transfer. GTB365 covers separate horizontal/vertical-cylinder injection maps, coolant-temperature correction, gear-dependent injection limits, quickshift timeouts and gear-recognition thresholds.

These are period MS-DOS procedures requiring compatible Ducati/Marelli hardware and software files. Diagnostic equipment and software are not included in the PDF download.

Road-model tests include oil-pressure and cylinder-compression checks, charging-system checks and starter-circuit component tests. Several fuel-injection checks also require the separate MATHESIS tester instructions.

RS references include the Main Front Wiring Diagram, Main Right Side Wiring Diagram and Main Left Side Wiring Diagram, with front-subframe and left/right/rear harness-routing views. The road manual adds a fuel injection-ignition system diagram, connector references and a wire-color legend.

Factory Tools and Assembly Cautions

Illustrated 998RS tool sections identify 52 engine/electronics tools and 23 chassis tools by part number. The workshop data also specify approved sealants and assembly products.

Minor edge impacts can leave invisible cracks in PANKL titanium rods and lead to fatigue failure; the manual also imposes a strict rod-bolt reuse limit. Its belt-timing section separates temporary checking tension from running tension, a distinction that matters for belt and valvetrain protection.

Repair and testing require secure motorcycle support and the manual's precautions for fuel, ignition, rotating wheels, lifting and cleaning solvents.

Examples of Bore, Piston Clearance, and Pump Limits

For 998RS cylinder, piston and ring inspection, the bore specification is 100.01–100.02 mm, with a cylinder-to-piston assembly clearance of 0.080–0.090 mm. The chapter gives the measurement locations and explains how bore and piston measurements are compared.

Oil-pump inspection lists an axial gear-to-cover clearance service limit of 0.07 mm. Gear-tooth and radial clearance checks are listed separately.
