Buell Ulysses XB12X 2007 Factory Service Manual (P/N 99494-07Y)

This 2007 Buell Ulysses Service Manual, P/N 99494-07Y, is specific to the Ulysses XB12X and its air-cooled 45-degree V-twin. It covers scheduled maintenance through internal engine and transmission repair, rather than the entire XB model range.

Searchable PDFs, Bookmarks, and Wiring Detail

Text search and diagram navigation: The PDFs contain searchable text. Section and appendix files have embedded bookmarks; the eight separate contents PDFs do not. Small labels in the detailed wiring diagrams require zooming.

The ZIP contains one English, printable service manual with 647 pages across 30 PDF files: 560 section pages, 70 appendix pages, and 17 title/contents pages. The total already includes seven blank contents-file pages, ten notes pages, and seven diagram-title reverse pages.

Maintenance, Engine Overhaul, and DDFI Diagnosis

These selected service topics illustrate the manual’s coverage without reproducing its full contents list. Further topics include vehicle storage and Triple Tail luggage-rack and passenger-backrest service.

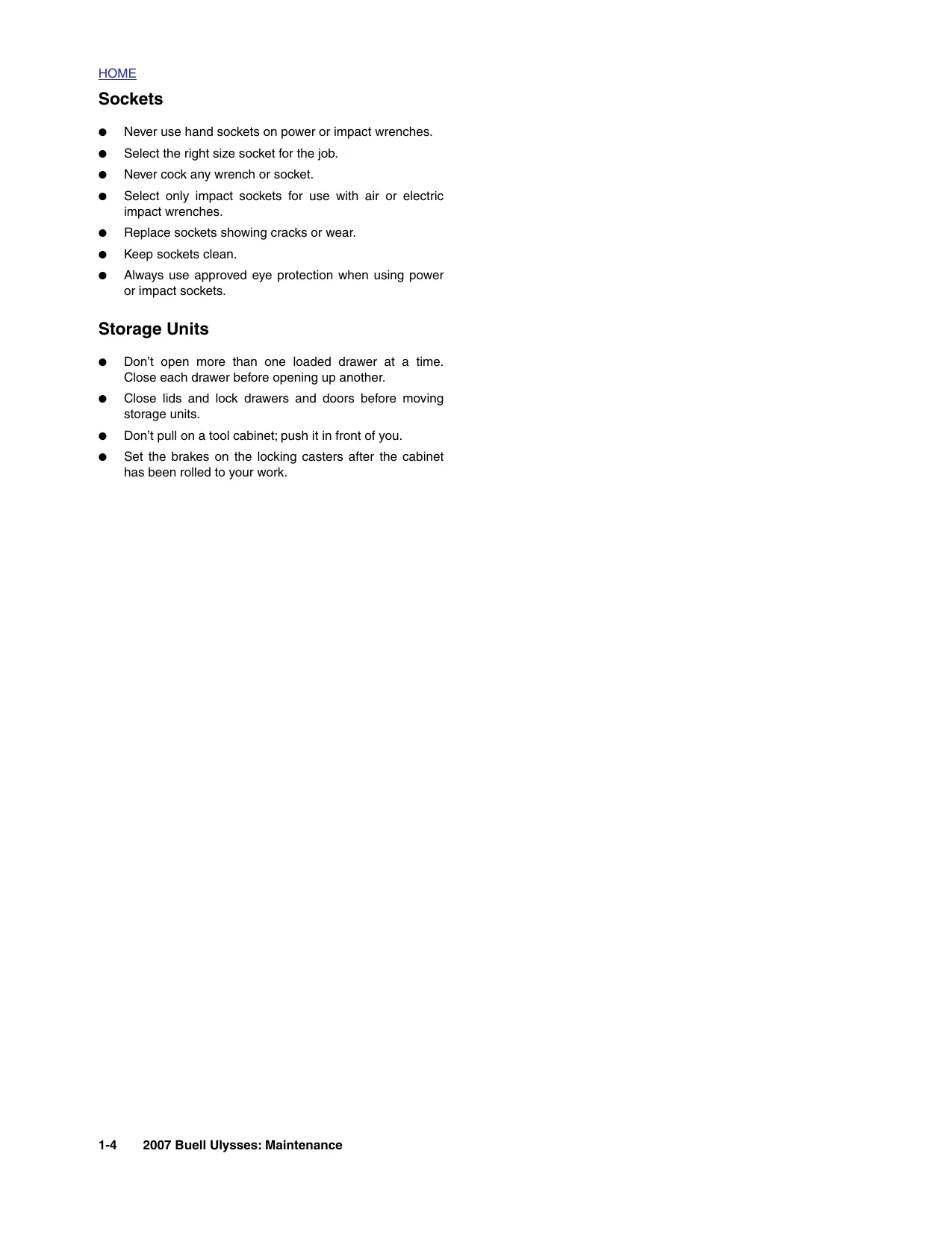

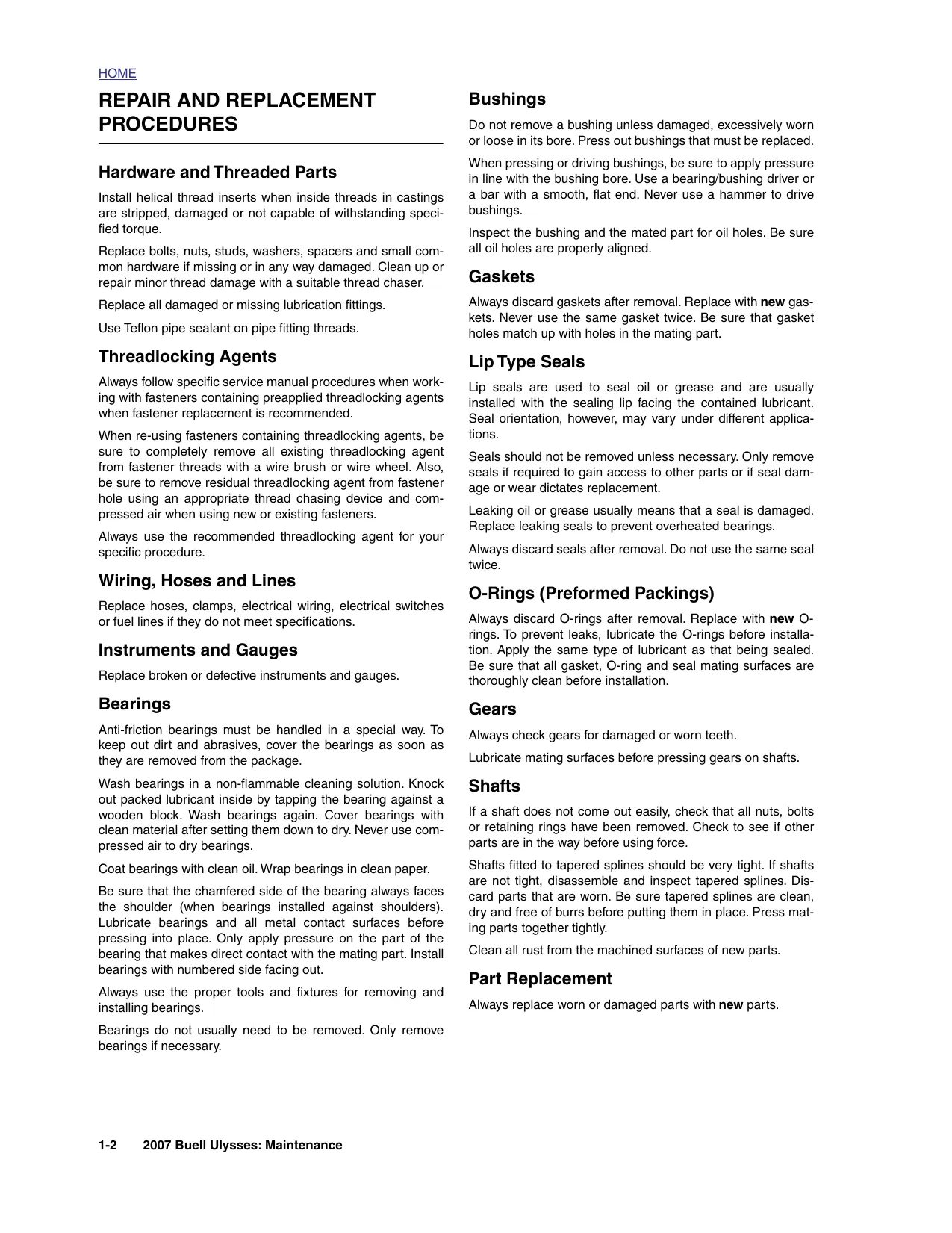

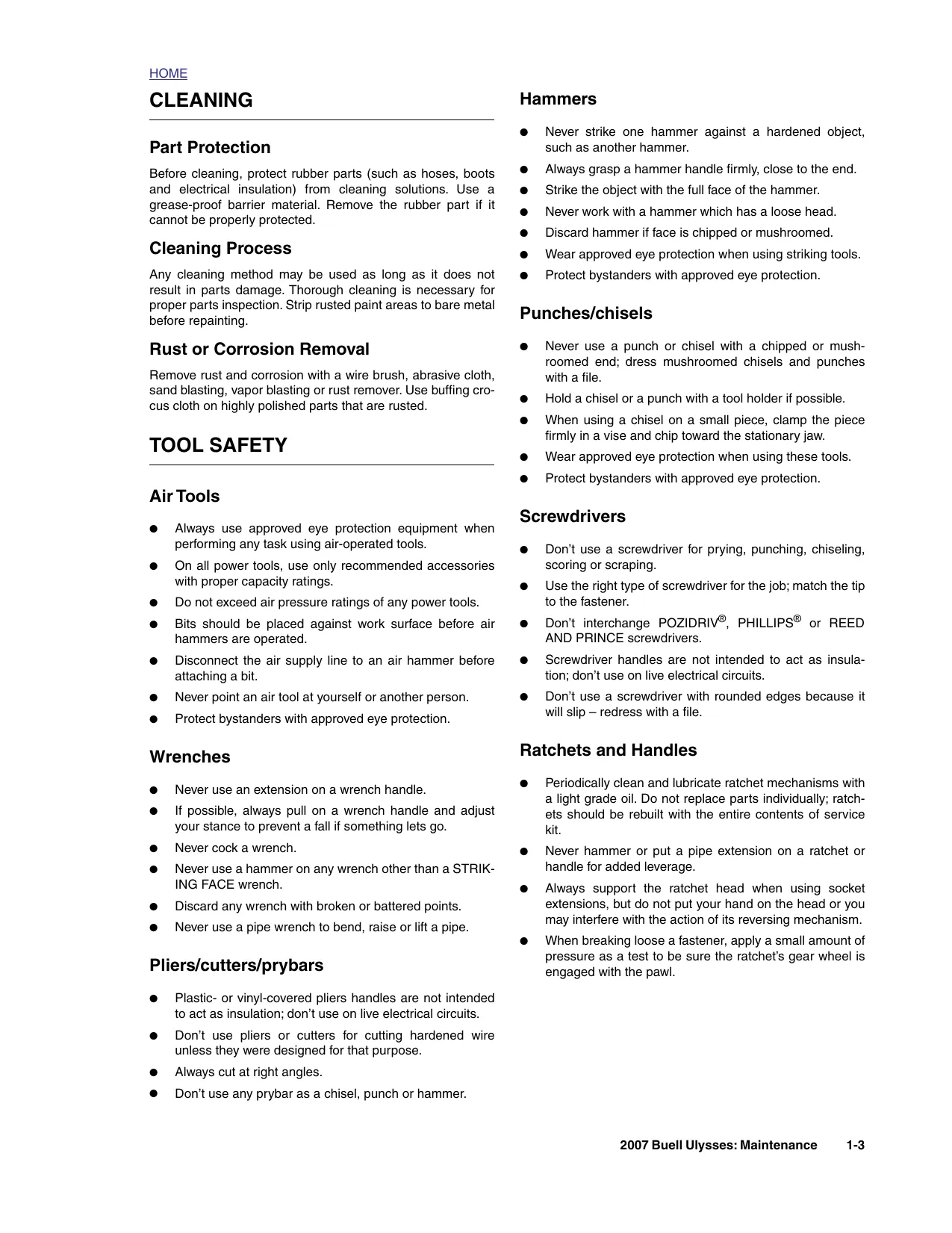

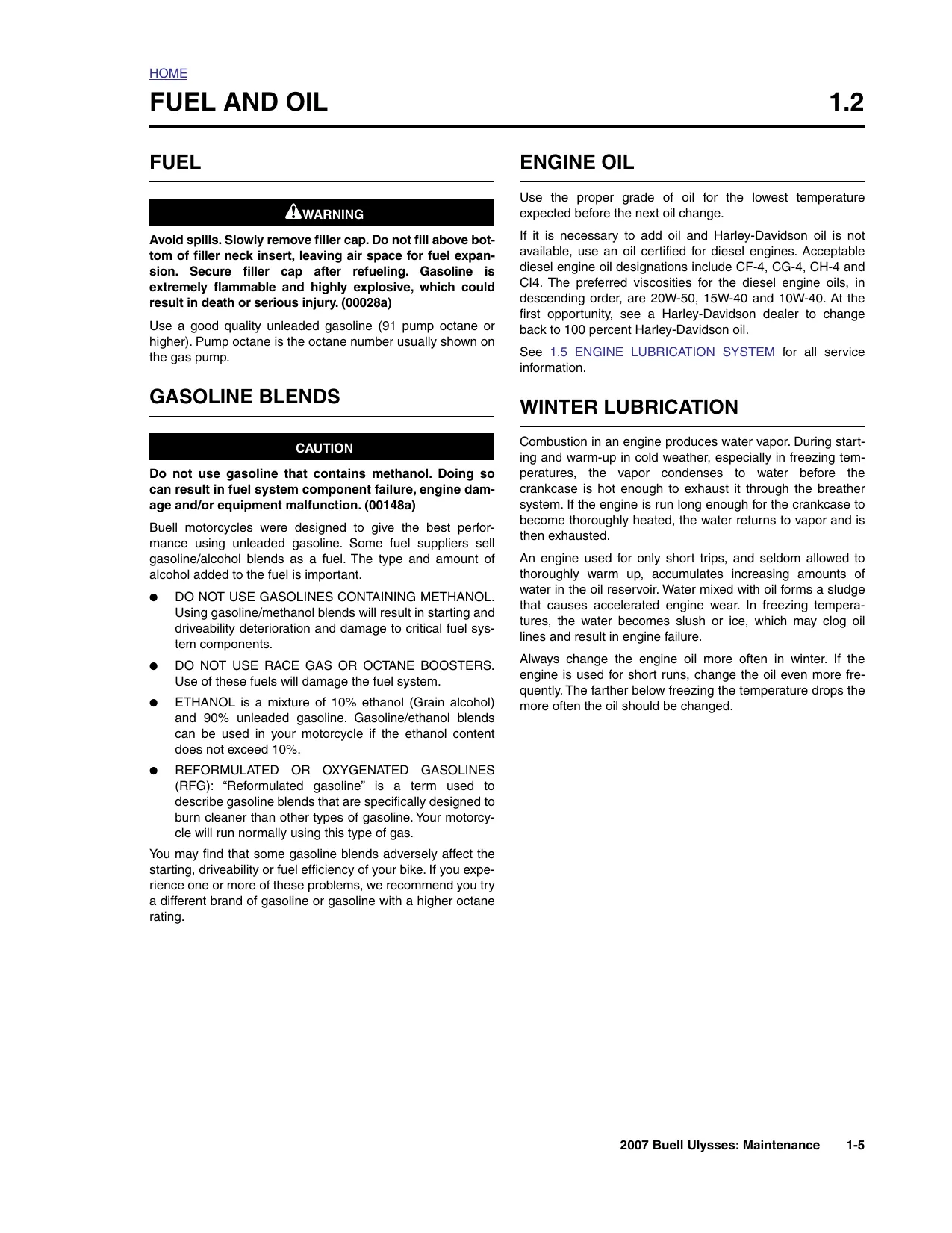

• Maintenance and adjustment: Factory service schedules, engine and transmission lubrication, brake bleeding and pad replacement, clutch and primary-chain adjustment, suspension setup, steering-head inspection, static ignition timing, headlight alignment, and TPS zeroing.

• Chassis repair: Step-by-step front-fork teardown and seal replacement, wheel and bearing service, brake master-cylinder and caliper disassembly, steering-head bearing replacement, and swingarm and isolator work.

• Engine overhaul: Compression and leakdown testing, engine rotation and removal, cylinder-head and rocker-box repair, cylinder and piston inspection, and crankcase, flywheel, and bearing service.

• Dynamic Digital Fuel Injection (DDFI/DDFII): Check-engine-lamp code retrieval, Digital Technician and breakout-box testing, wiggle tests, no-start and misfire charts, and fault isolation for the ECM, injectors, ignition coil, sensors, cooling fan, fuel pump, throttle body, and intake system.

• Drive, transmission, and starter: Wet multi-disc clutch and primary-drive repair, drive-belt and idler-pulley service, internal transmission disassembly and assembly, shifter mechanisms, starter-circuit diagnosis, current-draw tests, and starter and solenoid repair.

• Electrical systems: Starter-interlock and charging-system diagnosis, alternator and voltage-regulator service, battery testing, lighting, instruments, speedometer testing, switches, fuses, main-harness service, interactive-exhaust wiring, and auxiliary outlets.

Its crankcase-splitting procedures, precision inspection work, fuel-pressure testing, and Digital Technician requirements make it best suited to professional technicians or experienced owners who are mechanically qualified and properly equipped.

Chassis and Suspension Service

Rear-shock removal, frame service, exhaust-system work, and body-component procedures accompany the fork and brake repair sections. Suspension setup includes preload and damping adjustments matched to rider and cargo weight.

Internal Engine Work and Transmission Access

Engine repair depth: The procedures cover valve-guide replacement and Neway valve-seat cutting, along with ring and wrist-pin bushing service. Oil-pump, hydraulic-lifter, and cam-gear repair have their own sections.

Bearing selection: Pinion-shaft bearing work includes race measurements, a color-coded roller-selection table, and lapping instructions. Inner-race grinding requires a competent machinist.

Transmission access: Internal transmission repair requires engine removal and crankcase splitting before the gearbox can be removed. Mainshaft and countershaft disassembly and reassembly are illustrated.

Repair cautions: The maintenance section warns that retightening the cylinder-head bolts can damage the engine. Resting a removed engine on its primary side can damage the clutch-cable end fitting.

Fuel Injection and Market-Specific Systems

The main fuel section explains the open- and closed-loop Buell Dynamic Digital Fuel Injection system, its returnless fuel supply, ram-air induction, and ECM-controlled interactive muffler.

The no-start and fuel-pressure flowcharts connect test results to wiring, pump, and ECM checks, helping distinguish fuel-delivery problems from electrical supply or control faults.

California models: A dedicated section covers the evaporative-emissions canister, troubleshooting, removal and installation, and hose routing.

Japanese models: The active-intake appendix adds Code 22 diagnosis, cable adjustment, setting verification, and solenoid removal and installation.

Wiring Diagrams and Routing Reference

The wiring appendix provides separate Main Harness, Engine Management Circuit, and Lighting Circuit sheets, along with Horn and Instruments, Starting, and Charging circuit diagrams.

Connector coverage goes beyond pin locations: it includes Amp Multilock, Deutsch, and Packard terminal removal, installation, and crimp inspection. A separate routing appendix maps the brake lines, emissions plumbing, main harness, oil lines, and clutch, throttle, and interactive-exhaust cables.

Diagnostic Equipment and Mechanical Fixtures

Diagnostic equipment: The manual identifies the HD-44750 Digital Technician, HD-42682 Breakout Box, and B-45522 fuel-pressure gauge adapter. TPS calibration requires Digital Technician.

Mechanical fixtures: Examples include the B-43987 engine cradle, HD-45966 front-fork compressor, and HD-46285 transmission assembly fixture. Special tools are identified at the relevant procedures and in a dedicated appendix.

Component-specific torque tables, fluid capacities, pressure-test data, inspection and wear limits, clearances, electrical test values, and adjustment specifications are provided throughout.

Brake, pressurized fuel-system, battery, and engine-removal work should be performed with the motorcycle securely supported and the manual's fuel, electrical-isolation, lifting, and fire-safety precautions followed.

Examples of Fuel-Pressure and Cylinder Test Specifications

Fuel-system testing: The fuel-pressure test specifies an operating range of 49–51 PSI (338–352 kPa) at 2,500–3,000 RPM, with diagnostic charts for readings outside that range.

Cylinder condition: The compression-test section specifies final readings of at least 120 psi (827 kPa), with the engine at normal operating temperature when possible. In the cylinder leakage test, leakdown of 12% or more requires further attention.
