2009 Buell XB Models Service Manual

Technician-level documentation for Buell XB Models, including maintenance, repair, and diagnostic procedures for the engine, chassis, and electrical systems.

5.0starstarstarstarstar(1)
visibility Preview Available

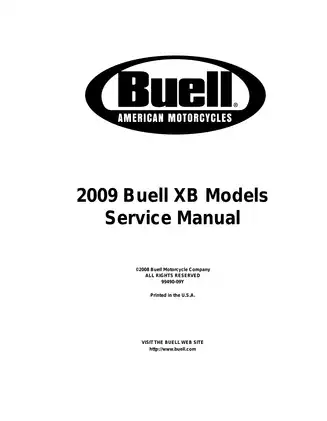

Buell 2009 Buell XB Models Service Manual manual page preview - page 1 of

Sample pages from the 2009 Buell XB Models Service Manual manual

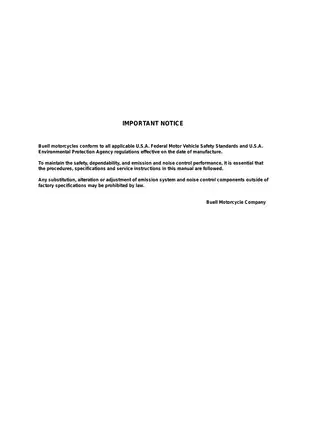

Buell 2009 Buell XB Models Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$17.00 (incl. VAT) Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Buell Models Covered & Key Technical Specifications

Models: Buell XB9SX, Buell XB12R, Buell XB12Scg, Buell XB12Ss, Buell XB12X, Buell XB12XT, Buell XB12XP
Sub-models / Variants: Firebolt, Lightning, Ulysses, CityX, Long
Trade Names: Firebolt, Lightning, Ulysses, Thunderstorm, Helicon
Build Years: 2009
Serial Numbers: VIN 17-digit pattern as defined in V.I.N. breakdown tables
Technical Data:

  • Engine Displacement: 492 cc, 984 cc, 1125 cc, 1203 cc
  • Fuel System: Electronic Fuel Injection (EFI)
  • Engine Configuration: V-Twin (Thunderstorm/Helicon variants)
  • Cooling System: Air/Oil cooled
  • Transmission: Primary chain/Manual
  • Frame: Aluminum chassis/Fuel-in-frame design
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27017 / David Phillips
File Size:
97.04 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Motorcycle
Last updated / verified
Oct 7, 2025

Buell Manual Features & Content Preview

2009 Buell XB Motorcycle Technical Documentation

  • Covers the 2009 Buell XB model lineup, including Firebolt, Lightning, and Ulysses variants, with specifications for XB9SX, XB12R, XB12Scg, XB12Ss, XB12X, XB12XT, and XB12XP configurations
  • Official Buell publication P/N 99490-09Y, published in 2008
  • Features 18 detailed sections, including comprehensive fastener torque tables, fuel system diagnostics, and chassis adjustment data
  • Downloads to your account within seconds of checkout
  • Your order stays downloadable from your account for life
  • Indexed PDF search covers every chapter and appendix
  • Laid out for standard letter and A4 printing
  • This 2009 edition serves as the primary factory reference for the full range of XB-chassis Buell motorcycles, including specific chassis and suspension settings unique to the Ulysses and Firebolt builds

Manual Content Summary

This factory service publication provides technical data and procedural descriptions for the maintenance and repair of the 2009 Buell XB model family. Coverage includes internal engine component inspection, transmission assembly details, and precise fuel system diagnostics. The document details steering head bearing resistance checks, interactive exhaust cable calibration, and complex electrical system troubleshooting for the entire XB series.

Specification and Data Preview

The documentation contains extensive reference tables for mechanical tolerances and fluid capacities. Brake system maintenance is documented with specific procedures for caliper bleeding and rotor thickness inspection. Engine oil capacity for the 2009 Buell XB is specified at 2.5 U.S. quarts including the filter. The steering head bearing resistance for the XB models is listed at 1–7 lbs of pull force. Primary chain deflection for a cold engine is specified as 3/8–1/2 inch. Proper suspension setup is detailed with specific preload and damping turns based on rider weight and model-specific GVWR load scenarios. Reference data is provided for outboard maintenance intervals as part of general shop practices.

Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. An official 2009 Buell OEM service manual covering the entire XB model range, documenting engine, chassis, electrical, and fuel injection specifications for the 984cc and 1203cc Thunderstorm-powered builds.

Manual FAQ, Purchase & Download Details

What content areas does the engine chapter cover for the 2009 Buell XB models? keyboard_arrow_down

Engine chapter includes comprehensive sections on cylinder head assemblies, rocker arm components, and oil pump systems. It also features detailed information for servicing the piston, cylinder bore, and crankcase assemblies.

Is there a reference for fastener tightening specifications within the chapters of this service manual? keyboard_arrow_down

Each major chapter, such as Chassis, Engine, and Fuel System, includes a dedicated section listing the relevant fastener torque values for that system.

Are there exploded views or diagrams included in the manual to help identify component parts? keyboard_arrow_down

Manual contains numerous illustrations and exploded views throughout the maintenance and disassembly sections. These diagrams provide visual references for the construction and arrangement of components for the various XB submodels.

Which sections of the document provide wiring diagrams and electrical connector pinout information? keyboard_arrow_down

Document includes Appendix B for comprehensive wiring diagrams and Appendix A for detailed electrical connector repair and pinout information.
