Buell Firebolt XB9R 2003 Service Manual (P/N 99493-03Y)

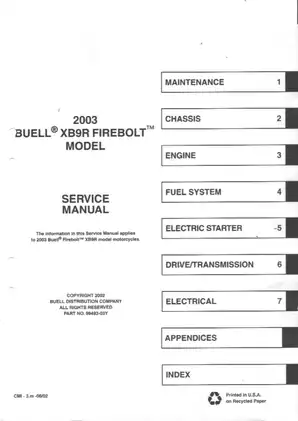

This factory service manual documents maintenance, diagnosis, and repair of the 2003 Buell Firebolt XB9R. P/N 99493-03Y, copyright 2002, contains seven service sections followed by technical appendices.

PDF Search, Bookmarks, and Diagram Detail

Search, navigation, and circuit detail: PDF text search is unavailable. Embedded bookmarks link to the seven service sections and appendices; the bookmark labeled “index” leads to the title page. Some small wiring-diagram labels remain blurred when enlarged.

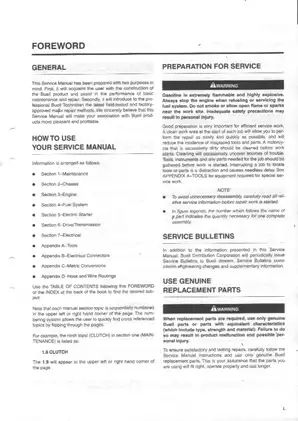

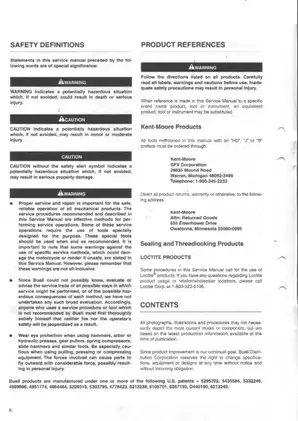

The download contains one printable English PDF with 576 pages, including two cover pages, 15 pages of front matter, and one Notes page. The appendices and printed index are included in that total.

Engine Overhaul, DDFI Diagnosis, and Chassis Service

These selected service topics provide a preview rather than a complete contents list. Other subjects include molded-in-color body-panel care and storage procedures.

• Engine repair: Step-by-step procedures for engine rotation and removal, cylinder-head work, cylinder and piston inspection, hydraulic-lifter service, oil-pump repair, and crankcase disassembly.

• Chassis and brakes: Chassis geometry, wheel-bearing replacement, master-cylinder and caliper repair, brake-fluid replacement, and bleeding procedures.

• Suspension and steering: Fork oil changes and disassembly, damper-rod adjuster assembly, steering-head resistance measurement, steering-stem adjustment, and swingarm service.

• DDFI diagnostics: Dynamic Digital Fuel Injection fault tracing for the Electronic Control Module (ECM), throttle position sensor (TPS), bank angle sensor, injectors, and related wiring.

• Drive and transmission: Clutch-pack repair, mainshaft and countershaft disassembly, case-bearing replacement, transmission installation, drive-belt service, and idler-pulley replacement.

• Starting and charging: Starter-motor disassembly, solenoid tests, starter-interlock diagnosis, alternator and voltage-regulator checks, and battery testing.

• Electrical references: Circuit-specific wiring diagrams, diagnostic flowcharts, connector pin tables, terminal-service instructions, and hose and wire routing illustrations.

Mechanically experienced owners can use the routine maintenance material; the major repair methods are written for professional Buell technicians using the specified workshop equipment.

Engine Inspection and Lubrication

Scheduled maintenance includes oil-level checks, lubrication, clutch adjustment, and inspection tasks. Compression and cylinder-leakage tests help distinguish valve, piston-ring, and head-gasket faults before teardown.

Internal repair information separates new-component specifications from service wear limits. It addresses intake valve-stem and guide clearances, cam-gear identification, and pinion-bearing selection.

The cylinder-head section explains the tightening sequence and its relationship to gasket leaks, stud failure, and head or cylinder distortion. Oil-circuit illustrations connect the pump, cooler, engine passages, and swingarm oil reservoir.

Fuel Injection Diagnosis and Calibration

DDFI troubleshooting combines fault-specific flowcharts with circuit drawings and connector identification tables. Fuel-pressure checks, intake-leak testing, injector service, and California evaporative-emissions controls accompany the sensor diagnostics.

Fuel-pump repair includes replacement procedures for the pressure regulator, filter, screen, and low-fuel level sensor.

Check-engine-lamp procedures explain trouble-code retrieval and clearing without Digital Technician. TPS calibration requires Digital Technician HD-44750, while most circuit-diagnostic routines use a DVOM and Breakout Box HD-42682. Code retrieval without a scanner therefore does not make every test or calibration independent of diagnostic equipment.

TPS circuit testing and sensor replacement are documented. However, printed page 1-48, the separate TPS maintenance page listed in the contents, is absent from this PDF.

Forks, Steering, and Swingarm

Fork instructions address seals, bushings, damper-rod adjuster setup, and Fork Tube Holder HD-41177. Steering-head checks measure resistance with a spring scale. Recommended Suspension Damping Settings tables relate fork and rear-shock adjustments to riding conditions.

Rear-shock coverage comprises removal, installation, preload, and damping adjustment; the shock has no user-serviceable internal parts.

Front-wheel information identifies the axle’s left-hand thread. The swingarm section explains how removing its brace under drive-belt tension can damage the brace. Brake repairs also require the documented bleeding procedures and post-repair safety checks.

Clutch and Internal Transmission Repair

Transmission work extends to crankcase separation, shaft inspection, shifter-fork and drum assembly, and transmission-sprocket installation. Exploded views clarify component relationships during disassembly and reassembly.

The Drive Belt Wear Analysis chart associates illustrated wear patterns with replacement criteria, supporting assessment of a suspect belt before ordering parts.

Clutch repair procedures are present, but printed page 6-2—the wet-clutch specifications and drive/transmission torque-summary page—is absent.

Starter Testing and Electrical References

Starter tests cover the assembled unit, armature, field coils, and solenoid pull-in and hold-in operation. The Battery Load Test table and charging-system flowcharts support diagnosis beyond the initial no-start symptom.

Appendices provide main-harness and engine-management schematics, Amp Multilock, Deutsch, and Packard connector service, plus Hose and Wire Routing views.

A Preview of Chain and Fork Service Specifications

Primary-chain vertical free play, measured at the tightest point, is 3/8–1/2 in. (9.5–12.7 mm) cold and 1/4–3/8 in. (6.4–9.5 mm) at normal running temperature. These service settings are distinguished from the initial factory assembly setting.

Fork inspection specifies a slide-pipe runout service limit of 0.008 in. (0.2 mm) and a spring free-length wear limit of 9.13 in. (232 mm).
