Buell Models Covered & Key Technical Specifications

Models: Firebolt XB9R, Firebolt XB12R

Model Year: 2005

VIN identification: Positions 4–5 identify the Firebolt family (AX). Positions 6–7 identify the engine and market variant: XB9R (12 World, 57 California), XB12R (14 World, 59 California).


  • Engine oil capacity: 2.5 quarts (2.4 liters)

  • Transmission/Primary lubricant capacity: 1.0 quart (0.95 liter)

  • Spark plug gap: 0.035 in. (0.9 mm)

  • Engine idle speed: 1050-1150 RPM

  • Front tire pressure (solo): 36 PSI (248 kPa)

  • Rear tire pressure (solo): 38 PSI (262 kPa)

  • Front brake caliper mounting fastener torque: 35-37 ft-lbs

  • Front axle pinch fastener torque: 20-22 ft-lbs (27-30 Nm)

  • Primary chain inspection cover torque: 40-60 in-lbs (5-7 Nm)

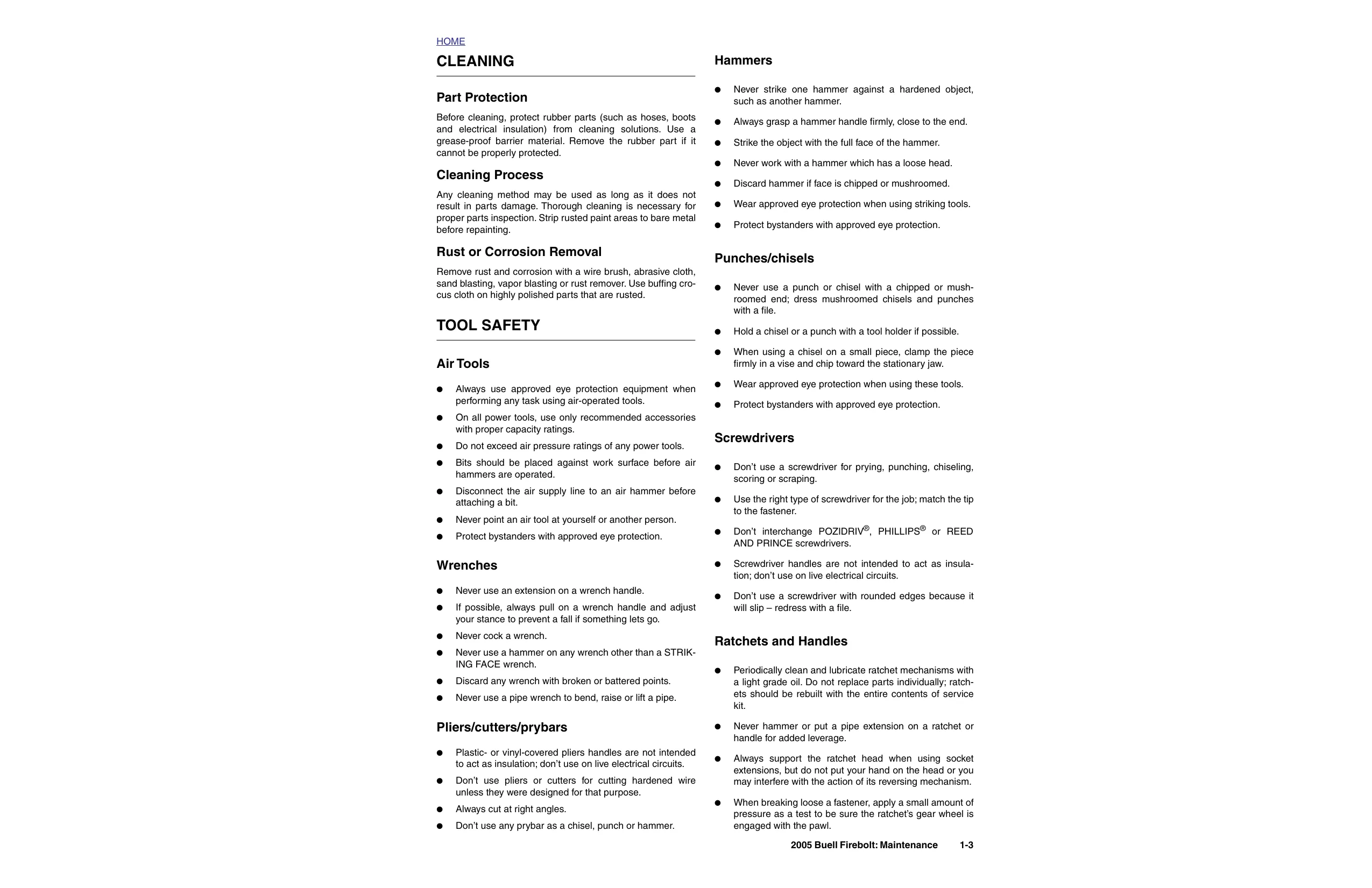

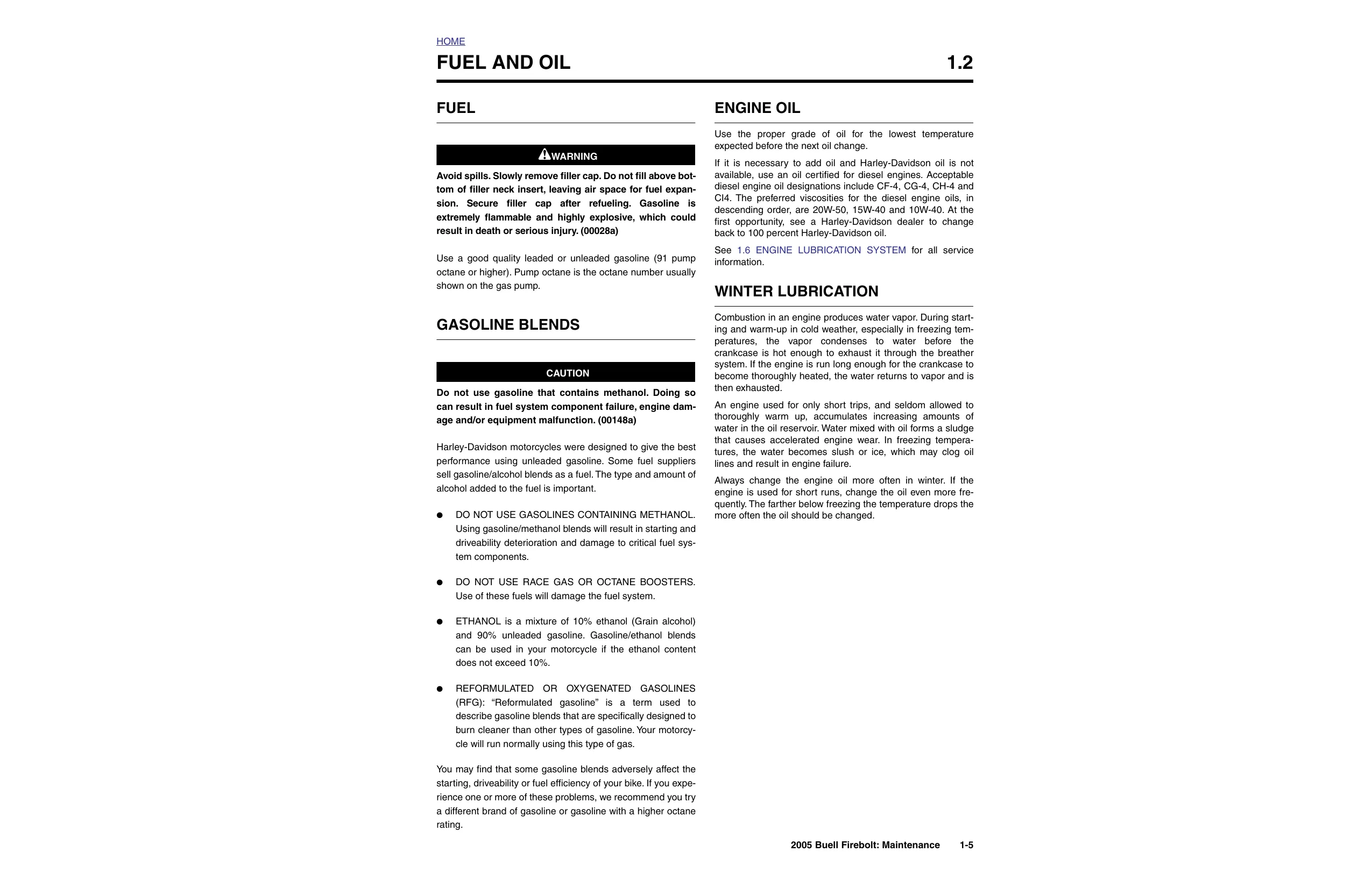

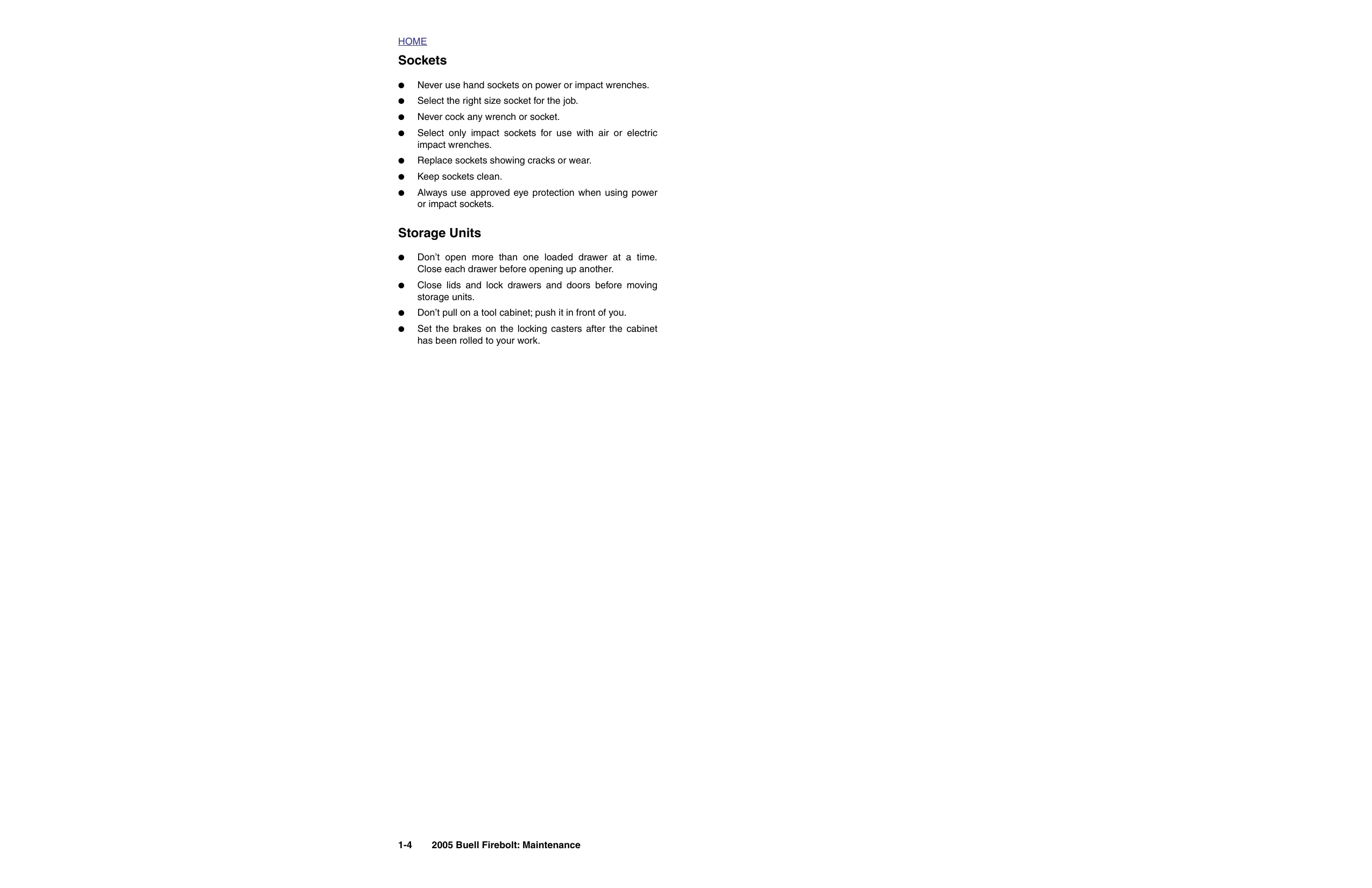

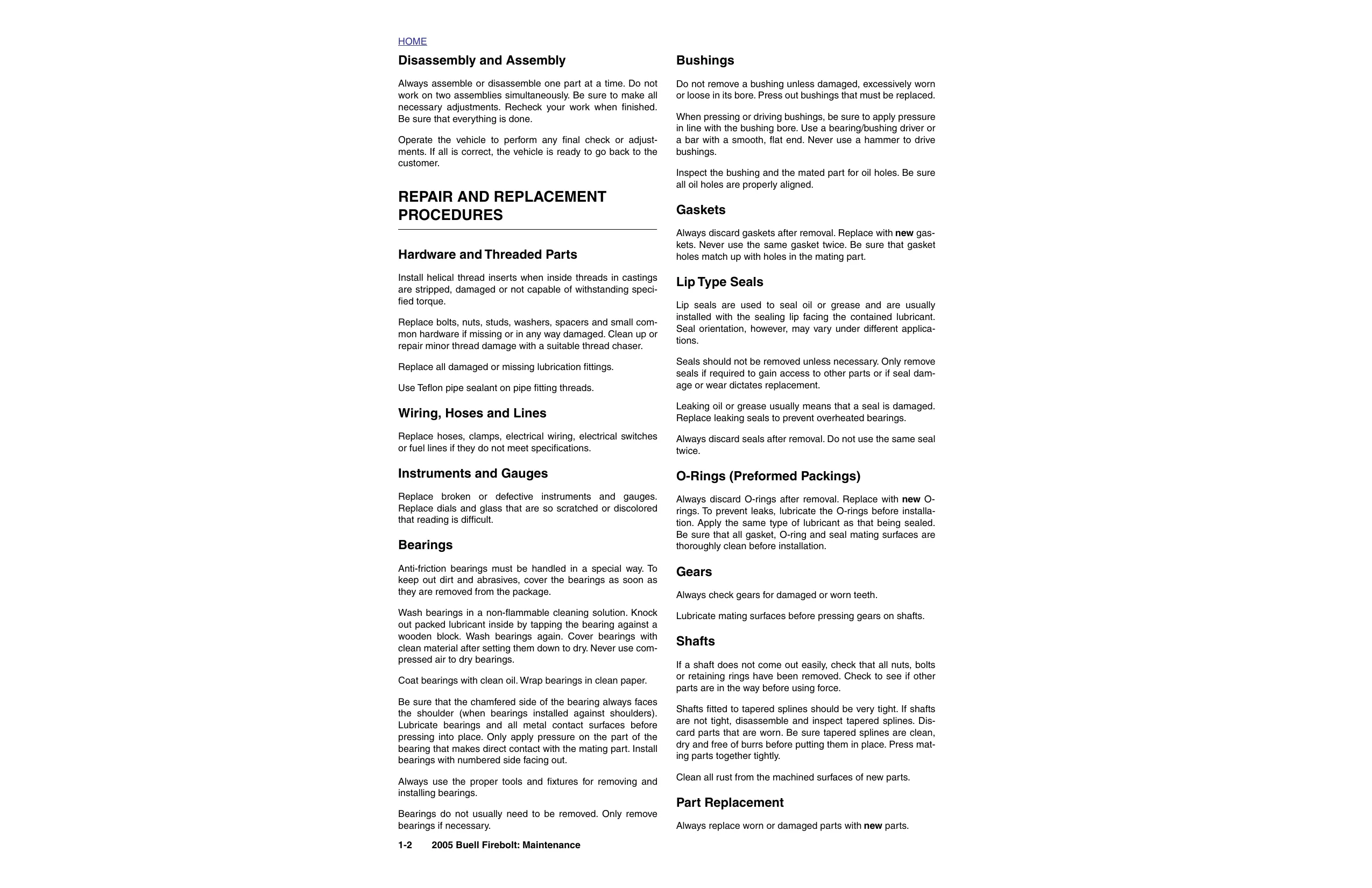

Buell Manual Features & Selected Content Preview

This Buell factory service manual covers the 2005 Firebolt XB9R and XB12R. The manual is identified as P/N 99493-05Y and carries a June 30, 2004 print date.

PDF Search, Navigation, and Download

Finding your place. The PDFs have searchable text, with embedded bookmarks in the main contents file, service chapter files, and appendices. The separate section contents pages link to the relevant files. Zoom in to read small connector numbers, pin labels, and wire codes in the wiring diagrams.

The ZIP contains 622 pages across 30 printable PDFs. The total includes 18 pages for the cover, contents, and their reverse pages, plus 62 pages across Appendices A through E.


Firebolt Engine, Chassis, and Electrical Service

This selection of service topics covers major workshop jobs. The manual also includes oil cooler service and sidestand replacement.

  • Scheduled maintenance: Factory service intervals, oil and filter changes, primary and transmission lubricant service, clutch and throttle adjustments, primary chain checks, and drive belt inspection.
  • Brakes and chassis: Wheel bearing replacement, master cylinder and caliper repair, brake bleeding, front fork overhaul, steering head bearings, and swingarm service.
  • Engine repair: Engine rotation and removal, compression and cylinder leakage tests, cylinder head and piston service, oil pump repair, and crankcase disassembly.
  • Clutch and transmission: Clutch pack inspection, primary drive service, and disassembly and reassembly of the five-speed transmission.
  • Fuel injection: Check-engine lamp and trouble-code diagnosis, no-start and misfire testing, fuel pressure checks, and separate early and late fuel pump procedures.
  • Starting and electrical: Starter and charging tests, XB12R interactive exhaust diagnosis, connector repair, and seven Firebolt wiring diagrams.

The manual suits technicians and mechanically experienced owners with the tools and test equipment required for the work they undertake.

Maintenance and Chassis Procedures

The maintenance sections cover suspension damping, ignition timing checks, headlight adjustment, and service for the swingarm-mounted engine oil reservoir. Wheel service includes sealed-bearing removal and installation with collets and drivers, spacer orientation, cast rim runout, tire mounting, and balancing.

Step-by-step brake procedures cover pistons, seals, pad retainers, lines, and switches. Front fork service covers the spring, damper rod, bushings, seals, and oil level. The chassis chapter also covers the frame, isolators, rear shock, exhaust, controls, fairings, and subframe.

Follow the manual’s precautions for fuel pressure, brake fluid, and battery isolation. Securely support the motorcycle and powertrain before engine or frame work.

Engine Access and Transmission Repair

The engine rotation procedure pivots the engine down on the rear isolator mount, giving access for top-end repairs while the engine stays in the chassis. Compression and leakage tests help distinguish ring, valve, and head gasket problems before teardown.

Internal engine service covers rocker arms and bushings, pushrods, valves, guides, seats, pistons, rings, pins, and gasket surfaces. The valve-stem keeper groove can cut a new seal during installation, leading to leakage, oil consumption, or valve sticking. Lower-engine coverage includes crankcase breathing, oiling, hydraulic lifters, cam timing, bearings, and flywheel installation.

Transmission removal requires engine removal and crankcase separation. The procedures cover the primary cover, clutch release mechanism and shell, mainshaft and countershaft, shifter forks and drum, main drive gear, case bearings, shifter shaft, and sprocket.

DDFI, Starter, and Electrical Diagnosis

The Dynamic Digital Fuel Injection (DDFI) section covers the 984 cc XB9R and 1203 cc XB12R. Flowcharts distinguish current and historic faults and guide checks for loss of ECM power, intermittent wiring, sensor and actuator faults, intake leaks, and throttle body problems. TPS zeroing calls for Digital Technician HD-44750. Circuit checks reference the HD-42682 Breakout Box, HD-41404 test connector kit, and a digital volt-ohm meter.

The fuel pump harness location identifies the later assembly. Drawing either in-frame pump into place unevenly can damage its O-rings. Separate procedures cover California evaporative emissions and the XB12R interactive exhaust valve, actuator, cable, feedback circuit, and harness. Appendix E covers active intake testing and adjustment for Japanese models and carries a Buell Lightning footer.

Starter procedures include current draw, solenoid pull-in, hold-in and return tests, armature growler testing, and field and brush-holder inspection. Electrical service also covers starter interlock, stator and regulator tests, the battery, lighting, instruments, speedometer, neutral switch, fuses, and AMP Multilock, Deutsch, and Packard connector repair.

Wiring Diagrams, Routing, and Shop Tools

Illustrations include Front Fork Assembly, Cam and Pinion Gear Location and Timing Mark Indexing, Transmission Power Flow, and Fuel Pump Assembly (Left and Right Sides). Appendix B includes the 2005 XB Firebolt Engine Management Circuit and 2005 XB Firebolt Starting & Charging Circuit. Appendix D shows brake, oil line, and wiring harness routing, including XB12R interactive exhaust routing.

Tool references include the B-45657 fuel pump puller, B-45521 steering head bearing remover/installer, HD-45966 fork spring compressor, HD-38515-A clutch spring compressor, and HD-43984 crankshaft locking tool. The relevant chapters provide torque tables, fluid capacities, clearances, wear limits, and electrical test data.

Fuel Pressure and Clutch Inspection Examples

For the DDFI running pressure test, the manual gives an acceptable range of 49–51 psi (338–352 kPa) at 2,500–3,000 rpm.

The wet clutch inspection tables specify a minimum clutch pack thickness of 0.661 in. (16.789 mm) and a maximum warpage of 0.0059 in. (0.150 mm) for either a friction or steel plate.
