Buell Models Covered & Key Technical Specifications

Model & Model Codes: X1 Lightning (SS; VIN positions 4–5)

Model Years: 1999–2000

Sub-models / Variants: World (engine code 11; VIN positions 6–7), California (engine code 56; VIN positions 6–7)

Transmission: 5-speed constant-mesh, foot shift

Factory-updated DDFI calibration: X1 World after VIN 4MZSS11J7X3202791; X1 California after VIN 4MZSS56J4X3220228

B-017 base ignition timing check: X1 California before VIN 4MZSS56J3X3220057

B-017 intake-leak inspection: X1 World before VIN 4MZSS11J3X3202240; X1 California before VIN 4MZSS56J3X3220172

B-017 intake manifold seal replacement: X1 World before VIN 4MZSS11J0X3201854; X1 California before VIN 4MZSS56J9X3220158


  • Spark plug type: 10R12 (replaces 6R12)

  • Spark plug gap: 0.038–0.043 in (0.97–1.09 mm)

  • Spark plug torque: 11–18 ft-lbs (14.9–24.4 Nm)

  • Rear shock preload measurement (B-035A replacement shock, rider seated): 15.2–15.5 in (386–394 mm)

  • Rear shock locknut torque (B-035A/B-037 replacement shock): 65–72 ft-lbs (88–98 Nm)

  • Transmission fluid capacity: 1.0 quart (0.95 liter)

  • Primary chain free play (hot): 1/4–3/8 in (6.4–9.5 mm)

  • Battery terminal torque: 1999 models: 40 in-lbs (4.5 Nm); 2000 models: 60–96 in-lbs (6.8–10.9 Nm)

Buell Manual Features & Selected Content Preview

Publication Pages

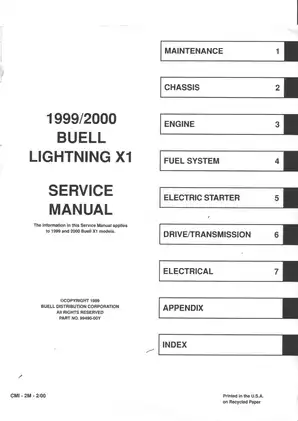

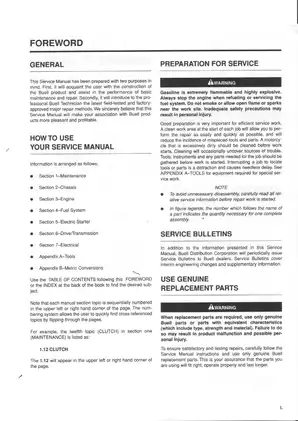

1999–2000 Buell Lightning X1 Service Manual — P/N 99490-00Y, ©1999, print code CMI-2M-2/00 538
B-016 — Isolator Kit, earlier models 4
B-016B — Revised Isolator Kit 7
B-017 — New DDFI Calibration and Remote Idle Adjuster Kits 5
B-018 — Front Mount Instructions, excerpt supplied twice 2
B-020 — 1999 X1 Rear Brake Line and Positive Battery Cable 4
B-024B — Revised Shock Eye, two files of 5 and 6 pages 11
B-025A — Swingarm Recall, earlier models 16
B-029 — Carburetor, Ignition and Spark Plug Update, two copies 2
B-032 — Exhaust Header Mount Retrofit Kit 5
B-033A — New Shock Absorber Recall 5
B-034 — Race Muffler Retention Kit, two copies 6
B-035A — Shock Absorber and Front Shock Mount, two copies 8
B-035INT — Shock Absorber and Front Shock Mount 4
B-037 — Rear Shock Locknut Tightening Procedure, two copies 2
B-038 — Pro-Series Handlebar Recall 3
B-043 — Engine Sprocket Nut 1
J01561 — Customer Instructions for Shock Replacement and Adjustment 4
Historical safety-recall reference compilation 6
Air-filter fitting and intake-air-temperature sensor relocation reference 5
J01992 — S1 Battery Replacement Kit, earlier S1 models 4
Clutch adjustment reference sheet 1
Engine installation reference sheet 1
Engine oil and filter change reference sheet 1

Use the service manual for the repair procedures and the applicable bulletins for interim engineering changes and revised service information. The additional reference sheets cover individual maintenance, installation, and modification topics.

Coverage: The core manual covers the 1999–2000 X1. Supplemental documents also discuss S1, M2, S2/S2T, and S3/S3T models; they do not provide complete service-manual coverage for those models. The parts catalog and predelivery/setup manual are separate publications.

PDF Search, Bookmarks and Diagram Detail

Search and diagram readability: The main manual has chapter bookmarks but no searchable text. The separate four-page shock instructions and the engine-installation and oil-change sheets also lack text search. Most other supplements have searchable text, although parts of the recall compilation do not search reliably. Most supplements have no bookmarks. Small wire-color and connector labels in the overall X1 wiring diagram are faint, and some remain difficult to read when enlarged.

The ZIP download contains 30 printable English PDFs totaling 645 pages: the 538-page manual, 74 bulletin pages, and 33 supplemental-reference pages. Covers, front matter, two appended order forms, and repeated copies are already included. Four exact duplicate files account for six of those pages.


Thunderstorm Engine, DDFI and Chassis Service

The following selected contents outline the main repair areas. Other topics include storage preparation and headlamp adjustment.

  • Thunderstorm engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide and seat service, cylinder honing, piston fitting, oil-pump repair, and year-specific crankcase overhaul.

  • Chassis and suspension: Wheel and brake repair, fork teardown and assembly, steering-head and swingarm service, rear-shock replacement and adjustment, exhaust, controls, and bodywork.

  • DDFI diagnosis: Trouble-code retrieval, Scanalyzer and breakout-box testing, fuel-pressure checks, throttle-position calibration, and sensor, injector, and ignition-circuit fault isolation.

  • Drive and transmission: Primary-chain, clutch-pack, and secondary-belt service, transmission removal, shaft assembly, shifter inspection, main-drive-gear service, and bearing replacement.

  • Starting and charging: Starter diagnosis and overhaul, alternator and regulator tests, connector repair, instrument diagnosis, wiring diagrams, and troubleshooting flowcharts.

  • Running changes and bulletins: DDFI calibration updates, revised engine-temperature-sensor arrangements, replacement-shock procedures, and applicable brake-line, battery-cable, isolator, exhaust-mount, and engine-sprocket information.

It is suited to experienced owners handling basic maintenance and repair and to professional technicians performing major work with the specified tools and shop equipment.

Year-Specific Engine and Chassis Procedures

The manual separates 1999 and 2000 hardware rather than treating it as interchangeable. Batteries, brake hydraulics, front wheels, seats, and footrests have year-specific coverage. The brake chapters distinguish the earlier D.O.T. 5 system from the D.O.T. 4 system used for 2000.

Engine revisions: The 2000 Thunderstorm chapters cover smaller hydraulic lifters, revised lifter blocks, high-contact-ratio cam and pinion gears, and a new gearcase and cover. The straight pressed-in crankpin and low-inertia flywheel are serviced as an assembly; the flywheel and connecting rods are replaced together.

Step-by-step procedures address valve-guide replacement, valve-seat work, piston fitting, cam-gear setup, and crankcase assembly. The 2000 gearcase section warns that an earlier cover gasket can obstruct the oil galley and damage the engine.

Other changes include the taller second gear, revised sidestand switch, relocated turn-signal flasher, metal inline fuel filter, and early-versus-late engine-temperature-sensor locations.

DDFI Fault Isolation and Fuel-System Repair

Diagnostic charts address hard starting, poor performance, black smoke, misfire, loss of ECM power, and fuel-pressure faults. Separate tests cover both injectors and ignition-coil circuits, battery voltage, the tachometer, bank-angle sensor, cam synchronization, and ECM failure.

The charts and connector references help distinguish a component fault from a shared power-supply or wiring problem before parts are selected. Specified equipment includes Scanalyzer HD-41325 with cartridge B-41325-99, Breakout Box HD-42682, fuel-pressure gauge HD-41182, and DVOM HD-39978.

Fuel-system procedures cover the wiggle test, current and historic codes, idle-speed control, fuel-tank pressure testing, and repair of the pump, regulator, low-fuel sensor, throttle body, manifold, and injectors. California evaporative-emissions equipment has separate coverage.

The fuel-tank chapter warns that overtightening the vent fitting can snap it off inside the tank and require tank removal.

Transmission and Electrical References

Transmission coverage extends to shifter-fork and drum inspection, mainshaft and countershaft assembly, access-door and case bearings, and final shifter-pawl adjustment. Related procedures include torque tables, approved fluids, clearances, wear limits, and adjustment data.

Visual references include the color Oiling System foldout, Initial Diagnostic Check flowcharts, Engine Temperature Sensor Circuit, and Fuel Injector Circuit. The Starter/Ignition Interlock System and two-page 1999 and 2000 X1 Wiring Diagram support circuit tracing.

Period Updates and Replacement-Shock Information

B-017 documents the improved DDFI calibration and its World/California VIN breakpoints. It also covers remote idle-adjuster installation, throttle-position-zero verification, warm-idle setup, and the ignition-timing and intake-leak checks applicable to specified vehicles.

B-029 records the 2000-1/2 DDFI changes: a new ECM, 10R12 spark plugs replacing 6R12, revised cylinder heads, a relocated engine-temperature sensor, and longer sensor leads.

Other applicable bulletins address the rear brake-line and positive battery-cable recall, the 2000 rear-shock campaign, revised shock installation and locknut procedures, rear isolators, exhaust-header mounts, race-muffler retention, and the late-production engine-sprocket nut. Replacement-shock dimensions and settings differ from those for the original shock.

Brake, suspension, electrical, and pressurized-fuel work can affect rider safety or create fire hazards. Use proper motorcycle support and the specified test equipment, and leave unfamiliar major repairs to a qualified technician.

A Preview of Fuel-Pressure and Ignition-Coil Test Data

The DDFI fuel-pressure section specifies an operating range of 46–53 psi at 2,500–3,000 rpm and provides diagnostic flowcharts for readings outside that range.

The ignition-coil tests specify normal primary-winding resistance of 0.5–0.7 ohms and secondary-winding resistance of 5.5–7.5 kilohms. The accompanying test-results section distinguishes low, high, and open-circuit readings.
