2001 Buell S3/S3T Thunderbolt Service & Repair Manual (P/N 99489-01Y)

• Official OEM publication for the 2001 Buell S3 and S3T Thunderbolt: P/N 99489-01Y, supplied as a 458-page PDF with seven numbered service sections and three appendices.
• Chassis repair coverage takes the front and rear brakes through master-cylinder and caliper overhaul, then covers wheel and tire service, fork disassembly and reassembly, steering-head work, swingarm and rear-isolator replacement, shock removal, and suspension setup.
• Engine procedures include removal and installation, cylinder-head and valve service, cylinder/piston and wrist-pin work, oil-pump inspection, cam timing and end-play checks, and crankcase, flywheel, and main-bearing repair.
• Buell Dynamic Digital Fuel Injection (DDFI) diagnostics combine check-engine codes and symptom charts with Scanalyzer data, breakout-box/DVOM testing, wiggle tests, fuel-pressure checks, and dedicated fault trees for sensors, injectors, ignition coils, the fuel pump, and ECM power.
• Drive and transmission service runs from primary-chain and belt work through clutch disassembly, gearbox teardown, shift-fork/drum inspection, mainshaft and countershaft repair, bearing replacement, transmission installation, and shifter-pawl adjustment.
• Starter and electrical sections cover activation-circuit diagnosis, starter and solenoid bench tests, charging-output and current-draw testing, alternator and regulator work, starter-interlock logic, instruments, lighting, switches, fuses, and relays.
• Selected technical graphics include the Internal Engine Passages oiling foldout, Cam and Pinion Gear Timing Mark Indexing, DDFI diagnostic flowcharts, Starting System Diagnosis charts, Transmission Power Flow, and the 2001 S3 Wiring Diagram.

Model and Variant Coverage

The VIN guide identifies RS as S3 and FS as S3T, separates code 11 World models from code 56 California models, and maps the 2001 sequential-number bands 000001-020000 for World motorcycles and 020001-025000 for California motorcycles. The covered powertrain is the air-cooled 1203 cc 45-degree V-twin with a five-speed transmission and wet multiple-disc clutch. S3T-specific chassis material covers the saddlebags and fairing lowers, including access points where these parts are removed during other service. California-model instructions add the carbon canister, vent valve, EVAP hose routing, and connections at the throttle body and air-cleaner assembly.

The depth and required equipment make this manual best suited to professional technicians and experienced owners already comfortable with precision measurement, specialty tools, and connector-level electrical diagnosis. Buell recommends a dealer or other qualified mechanic for brake work, and a dealer for tire and wheel service.

Factory Service Depth

Routine work is backed by maintenance-interval charts, approved-fluid requirements, belt-deflection and wheel-alignment checks, primary-chain and clutch adjustments, brake bleeding, ignition timing, and suspension preload, compression-damping, and rebound-damping setup. Specifications are organized where the work occurs: component torque tables, capacities, new-part dimensions, service wear limits, clearances, electrical test values, and troubleshooting tables are included throughout.

The engine section does not stop at unit removal. It covers compression and cylinder-leakdown testing, rocker-arm and valve-guide inspection, valve-seat work, piston rings and wrist-pin bushings, oil-pressure testing, gerotor oil-pump service, hydraulic lifters, cam-gear fitting, flywheel end play, bearing races, and crankcase separation and assembly. The separate starter chapter adds activation-circuit checks, voltage-drop diagnosis, free-running and stall tests, armature and field-winding inspection, brush service, and solenoid testing.

Diagnostics, Tools, and Electrical Information

The DDFI chapter begins with an initial diagnostic check and then separates no-start, misfire, fuel-pressure, idle, and ECM-power complaints from individual trouble-code routines. Those routines cover the throttle-position, oxygen, engine-temperature, intake-air-temperature, bank-angle, and cam-position sensors, plus injectors, ignition coils, fuel-pump control, tachometer output, and ECM faults. Circuit drawings are paired with connector tables and diagnostic notes rather than presented as a single generic fault list.

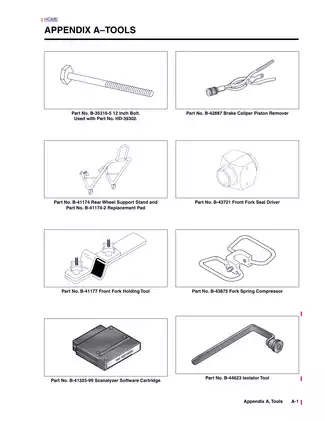

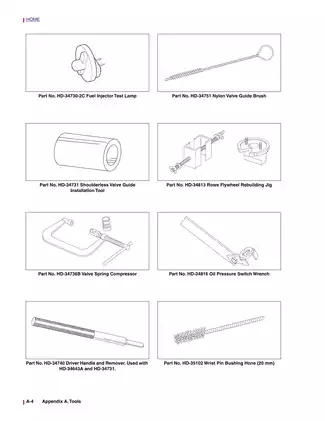

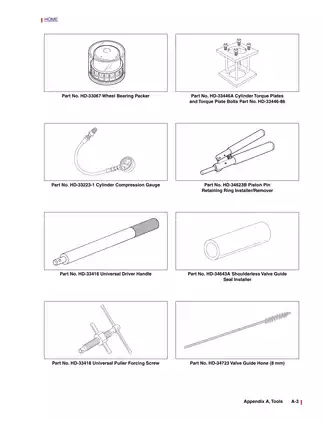

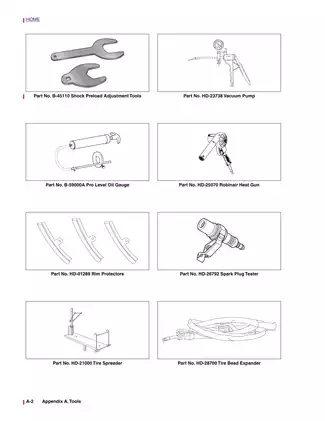

Appendix A identifies the service equipment called out in the procedures. Front-end and chassis examples include the B-41177 Front Fork Holding Tool, B-43875 Fork Spring Compressor, and B-44623 Isolator Tool. Drivetrain and diagnostic equipment includes the HD-38515-A Clutch Spring Compressing Tool, HD-41325 Scanalyzer with B-41325-99 cartridge, HD-42682 Breakout Box, and HD-41404 Harness Connector Test Kit. Appendix B supplies connector identification plus Deutsch and Amp Multilock terminal-service views; Appendix C provides U.S./metric conversions and general torque master tables. The full-vehicle foldout at the end is specifically titled 2001 S3 Wiring Diagram.

Scope and Repair Cautions

This publication is the service manual, not the separate parts catalog or pre-delivery and setup manual referenced in its opening pages. A pre-2000 gearcase-cover gasket can block the oil galley and damage the engine. The brake chapters also flag earlier silver banjo washers and the previous black-metal rear brake line as incompatible with DOT 4 systems; using the wrong pieces can lead to sealing problems or brake failure. Fuel-system pressure, brake hydraulics, heavy assemblies, and electrical testing require the protective measures and shop equipment specified by Buell.
