Buell Blast P3 2004 Service Manual (P/N 99492-04Y)
408 Pages • 1 Printable PDF (English) • Download
Buell Models Covered & Key Technical Specifications
Models & Model Codes: Blast P3 Series (KP at VIN positions 4–5)
Sub-models / Variants: P3 — World (13) and California (58), identified by the engine code at VIN positions 6–7
Model Year: 2004
VIN Sequential Number Ranges: World 500001-520000, California 520001-525000
-
Engine oil: Harley-Davidson 20W50 (recommended for a lowest ambient temperature above 40°F / 4°C)
-
Transmission/Primary fluid capacity: 1.0 quart (0.95 liter)
-
Spark plug gap: 0.035 in. (0.9 mm)
-
Front axle nut torque: 38–42 ft-lbs (52–57 Nm)
-
Rear axle nut torque: 48–52 ft-lbs (65.1–70.5 Nm)
-
Spark plug torque: 11–18 ft-lbs (14.9–24.4 Nm)
Buell Manual Features & Selected Content Preview
This factory service manual covers the 2004 Buell Blast P3 (P/N 99492-04Y).
Search, Bookmarks, and Wiring Detail
Finding procedures and tracing circuits: The PDF has searchable text and bookmarks for all seven service sections and the appendices. Zoom in to read small pin numbers and wire-color codes in dense diagrams such as the main harness.
The download is a single printable, 408-page English PDF. The total includes the title page, appendices, five notes pages, nine blank pages, and one page with only a footer.
Engine Overhaul, Chassis Service, and Electrical Testing
These are selected workshop topics from the manual. It also covers fuel shutoff valve service and main wiring harness removal and installation.
- Engine and top end: Compression and leakdown testing, engine removal, cylinder head rebuilding, and inspection and repair of the cylinder and piston.
- Primary drive and transmission: Primary chain adjustment, clutch overhaul, five-speed transmission disassembly and reassembly, and shifter pawl adjustment.
- Brakes and chassis: Brake caliper and master cylinder rebuilding, brake bleeding, front fork overhaul, and steering head bearing adjustment.
- Carburetor and emissions: Carburetor teardown, cleaning, float-level adjustment, auto-enrichener diagnosis, throttle position sensor adjustment, and California evaporative emissions equipment.
- Starting, charging, and ignition: Starter and ignition interlock troubleshooting, charging-system fault isolation, ignition timing, and electronic speedometer tests.
- Wiring and terminals: Main harness and individual circuit diagrams, connector locations and pin assignments, and Deutsch and AMP Multilock terminal repair and crimping.
The repair sections are suited to experienced mechanics comfortable with precision measurement, workshop presses, and dedicated fixtures.
Engine, Clutch, and Gearbox
The maintenance schedule covers initial service and recurring checks, with separate oil-change guidance for severe operating conditions. The air-cooled single-cylinder engine uses hydraulic lifters that compensate automatically for valve clearance. The Cylinder Head, Cylinder and Piston Assembly exploded view helps identify parts for rocker-arm bushing, valve guide and seat, cylinder boring and honing, and piston-ring work.
Bottom-end procedures cover crankshaft bearing selection, flywheel end play, and cam gear sizing and timing. The lubrication section covers the frame-backbone oil reservoir, crankcase breathing, oil-pressure testing, and gerotor oil pump inspection.
Internal transmission work requires engine removal and crankcase separation. The Transmission Power Flow diagram traces neutral and each gear. The overhaul procedures cover the mainshaft, countershaft, shift forks, drum, bearings, and seals. Excessive force on the primary chain limiting screw can damage the adjuster shoe.
Carburetor and California EVAP
The fuel-system troubleshooting charts cover overflow, hard starting, poor idle, and weak acceleration. The vacuum piston inspection and the Air/Fuel Passages in Carburetor diagram help locate the parts and passages involved. Incorrect float-pin installation can damage the carburetor body enough to require replacement.
The California Evaporative Emissions Control System Schematic shows the charcoal canister, purge hose, and vent routing. The manual also shows the atmospheric tank vent used on 49-state models.
Fork, Wheels, and Belt Drive
The Front Fork Assembly view accompanies bushing, seal, spring, and damper inspection. The chassis procedures also cover fork oil replacement, sealed wheel bearing replacement, and swingarm bearing service. The rear shock can be removed and replaced as an assembly. Its damper is nonserviceable.
Drive belt inspection includes wear patterns and replacement criteria for the belt and sprockets. The belt runs at a fixed, nonadjustable tension.
Starting, Ignition, and Wiring
Starter troubleshooting distinguishes no-click, slow-cranking, run-on, and failure-to-engage symptoms. Bench tests cover the solenoid, brushes, commutator, and armature. Ignition diagnosis covers the integrated ignition module and cam position sensor, the bank angle sensor, and static and dynamic timing.
Charging tests distinguish regulator leakage, ignition-off current draw, and stator faults. Speedometer procedures cover stored codes, sensor tests, and inaccurate or erratic readings. The wiring appendix pairs the Blast P3 main harness diagram with separate starting, charging, ignition, lighting, and horn and instrument diagrams.
Workshop References and Special Tools
Torque charts cover engine fasteners, spark plugs, and rear axle hardware. The procedures include fluid capacities, the Sport-Trans requirement for the transmission and primary drive, wear limits, spark plug gap, and electrical test specifications.

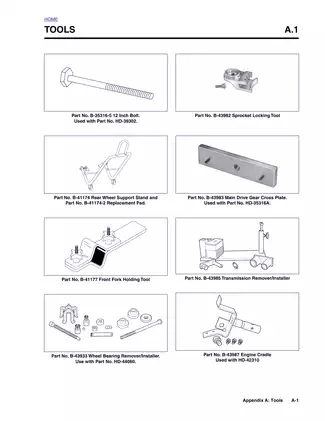

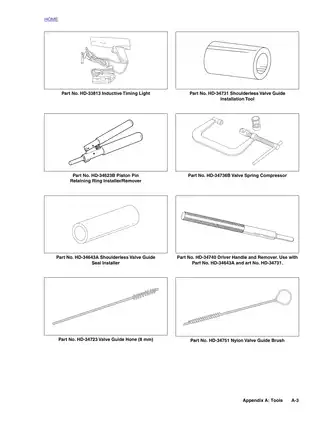

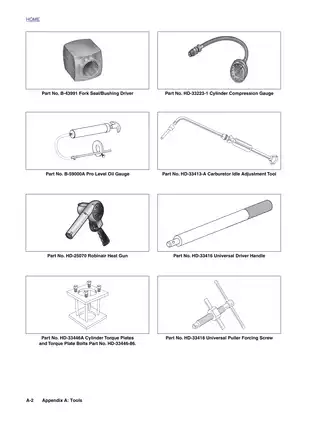

The illustrated tool appendix helps identify fixtures before teardown, including cylinder torque plates HD-33446A, wheel bearing remover/installer B-43933, and clutch spring compressor HD-38515-A with forcing screw HD-38515-91. The engine chapter also provides dimensioned drawings for fabricating pinion shaft bearing tools.
Selected Cast Rim and Starter Test Specifications
For the cast rim checks before new tire installation, the manual lists a maximum lateral runout of 0.040 in. (1.02 mm) and a maximum radial runout of 0.030 in. (0.76 mm).
Typical on-bike starter draw after the initial surge is 80–130 A with a fully charged battery and the engine stabilized at room temperature.
Use proper lifting equipment for chassis work and consult the complete factory procedures before servicing brakes, suspension, or other safety-critical assemblies.
